| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C3V3-TAP |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 3.3V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 85Ω |

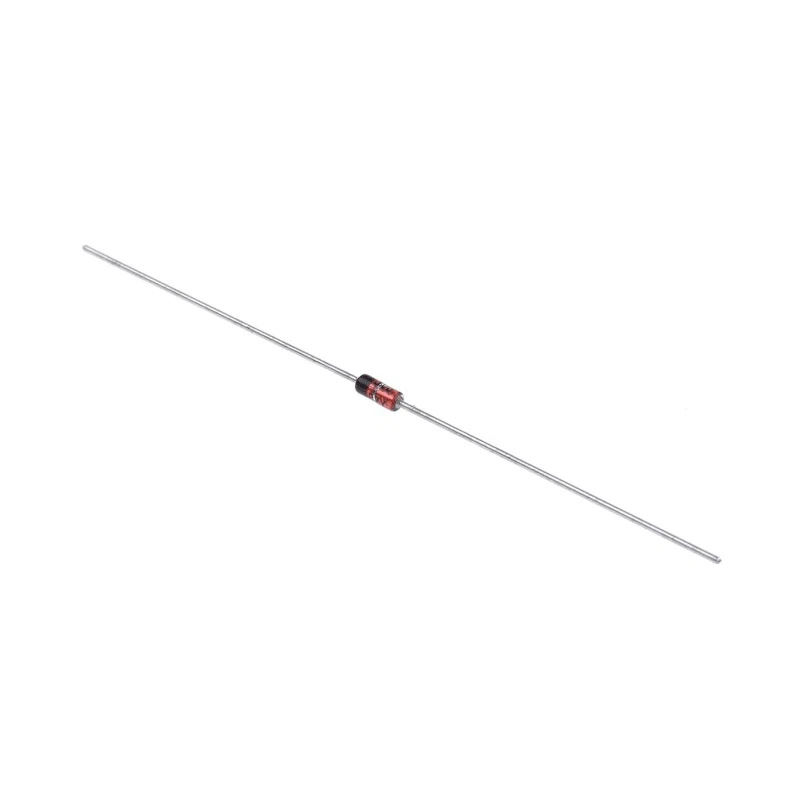

Vishay BZX55C3V3-TAP Zener Diode is a highly reliable semiconductor component used primarily for voltage regulation in electronic circuits. It has a nominal Zener voltage of 3.3 volts and a power dissipation rating of 500 milliwatts, making it suitable for stabilizing voltage in sensitive applications.
The diode features a single element configuration mounted via a through hole with 2-pin connection in the SOD-27 package type. This compact design allows easy integration into printed circuit boards with efficient space management. The device exhibits a very sharp reverse characteristic with low reverse leakage current, promoting stability and low noise operation.
Designed to withstand operating temperatures ranging from -65°C to 175°C, this diode is robust for use in harsh environmental and industrial conditions. It is RoHS compliant and meets the AEC-Q101 automotive standard, reflecting its quality for automotive and industrial electronics deployment.
Common applications include voltage regulation circuits, protection modules, and as a voltage reference in various electronic equipment in sectors such as industrial automation, automotive electronics, telecommunications, and power supply units.
The diode's precise test current is 5 mA, with maximum Zener impedance of 85 Ω. Its small dimensions, 1.7 mm height and 3.9 mm length, allow for compact device assemblies. Nominal Zener voltage of 3.3 volts for voltage stabilization.
Maximum power dissipation of 500 mW for reliable operation. Through hole mounting with 2-pin SOD-27 package for easy assembly. RoHS compliant and AEC-Q101 automotive qualified for quality assurance. Low leakage current and sharp reverse characteristics ensure noise reduction.
Operating temperature range from -65°C to 175°C for durability. Small physical dimensions optimize board space usage. Used in industrial, automotive, and electronic circuit applications.
This Vishay zener diode category product is ideal for electronics manufacturers and engineers requiring precision voltage regulation components. Explore more related semiconductor products on EnvMart for advanced electronic component solutions.
