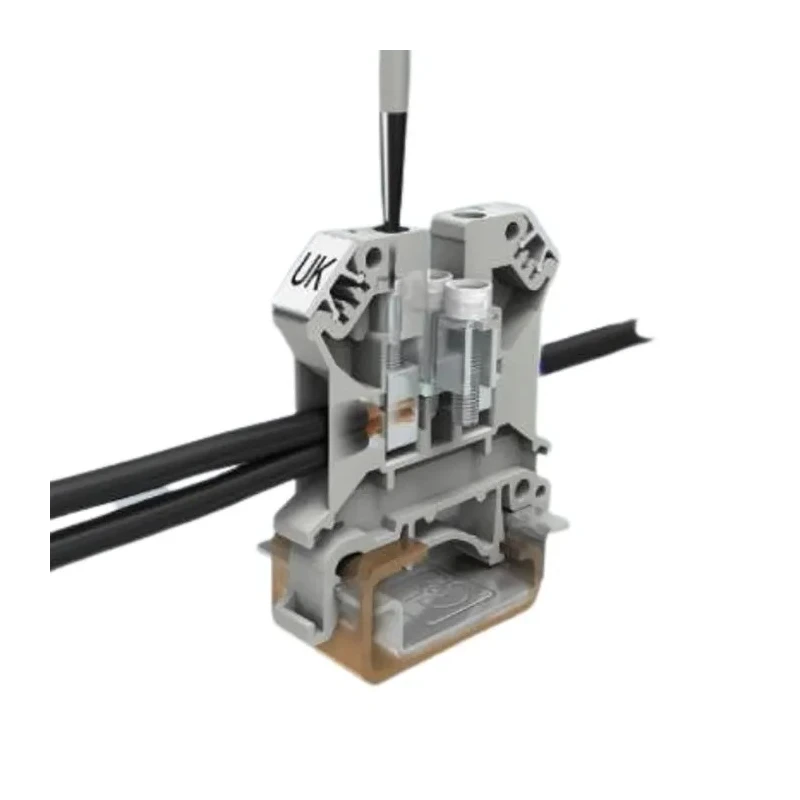

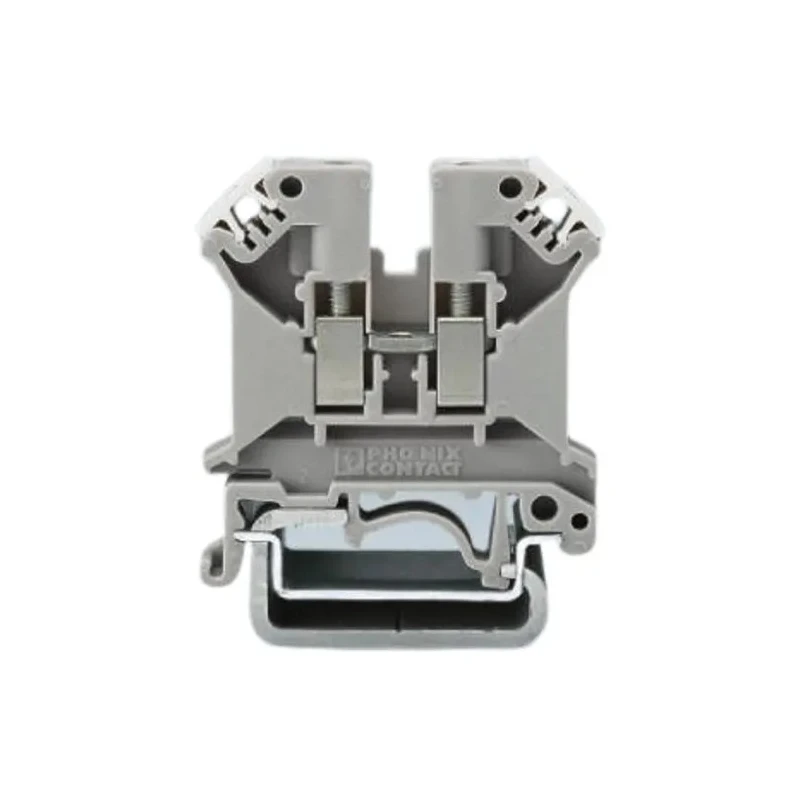

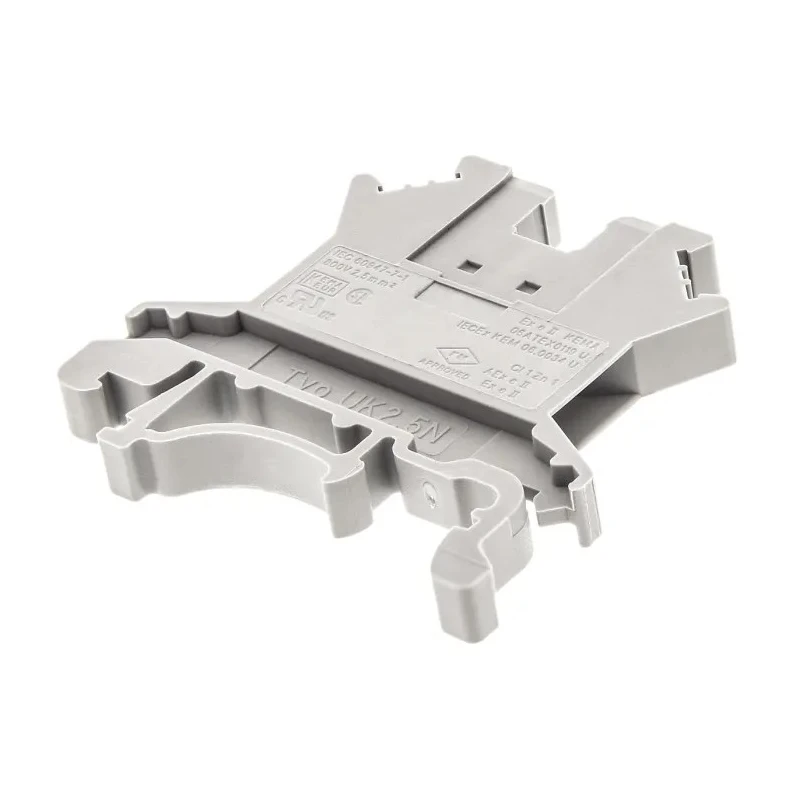

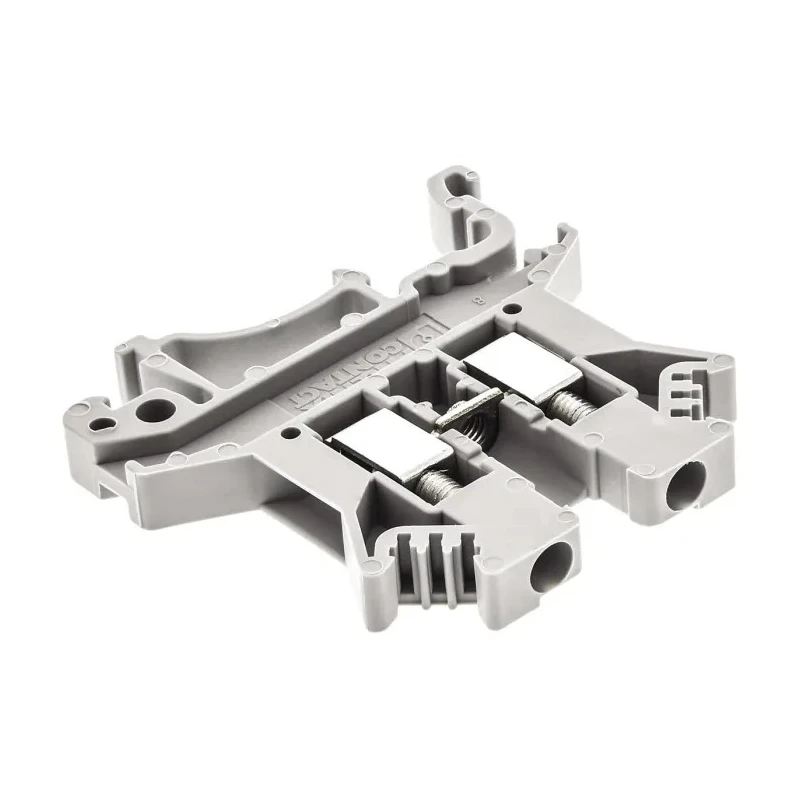

Phoenix Contact Grey UK 2.5 N Series Feed Through Terminal Block 24A 800V Screw Termination ATEX 3003347
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3003347 |
| Series | UK 2.5 N |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | CSA |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Cable CSA | 0.2, 2.5mm² |
| Terminal Block Current | 24A |
Key Features
- Terminal block supports wire sizes from 24 AWG to 12 AWG.
- Robust polyamide housing ensures corrosion resistance and electrical insulation.
- Wide operating temperature range from -60°C to 105°C for versatile application.
- Mounts easily on DIN rail with universal foot clip.
- Compliant with IEC/EN 60079-7 for explosive atmospheres.
- Non-fused design providing reliable feed-through connection.
- Suitable for chemical, petrochemical, and industrial control cabinets.
Product Description
Phoenix Contact 3003347 is a grey UK 2.5 N Series Feed Through Terminal Block rated for 24 amps and 800 volts AC/DC operation. This terminal block is engineered to facilitate safe, rapid electrical circuit connections within industrial control cabinets. Its screw-type termination ensures secure connection across a wide wire range from 0.2 mm² (24 AWG) to 2.5 mm² (12 AWG).
The terminal block features a durable polyamide housing that resists corrosion and provides reliable insulation to protect operators from electrical shock. The compact form factor measuring 42.5 mm in length, 42 mm height, and 5.2 mm width occupies minimal space on DIN rails, simplifying panel layouts.
Designed for robust performance under extreme conditions, it operates reliably across a temperature range of -60°C up to +105°C. Certified to ATEX standards, it is suitable for hazardous locations such as chemical and petrochemical industries where explosive gases may be present.
The universal foot allows quick clipping onto standard DIN rails, facilitating easy installation and modular configuration. This product meets CSA approvals and complies with IEC/EN 60079-7 standards, ensuring rigorous safety and quality benchmarks.
Compact feed-through terminal block for industrial use. Compatible with 24 to 12 AWG wires for flexible connectivity. Polyamide construction provides corrosion resistance and electrical insulation. Wide temperature tolerance ensures reliability in harsh environments.
ATEX certified for hazardous atmospheres. Universal DIN rail mounting for easy installation. Non-fused feed-through design for current flow continuity. Meets IEC/EN 60079-7 and CSA standards for safety compliance.
This terminal block is a dependable component for industrial, laboratory, manufacturing, and water treatment electrical panels requiring high safety and operational reliability. It supports professional wiring and circuit management in critical applications. Explore more from the Phoenix Contact range at EnvMart for comprehensive electrical component solutions.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum current of 24 amps.
It can handle voltages up to 800 volts AC/DC.
This terminal block supports wire sizes from 24 AWG to 12 AWG.
It operates reliably within a temperature range of -60°C to +105°C.
It features a screw-type termination for secure connections.
Yes, it is ATEX certified, making it suitable for use in hazardous locations such as chemical and petrochemical industries.
It complies with IEC/EN 60079-7 standards and has CSA approvals.
The housing is made from durable polyamide, providing corrosion resistance and electrical insulation.
The dimensions are 42.5 mm in length, 42 mm in height, and 5.2 mm in width.
This terminal block has one level.
It is suitable for industrial, laboratory, manufacturing, and water treatment electrical panels requiring high safety and operational reliability.
