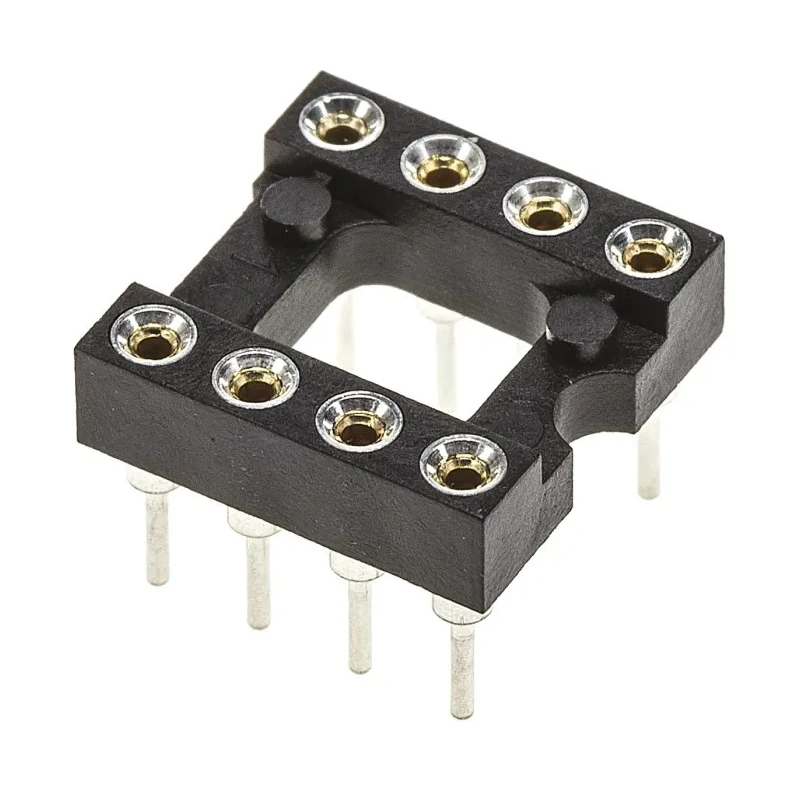

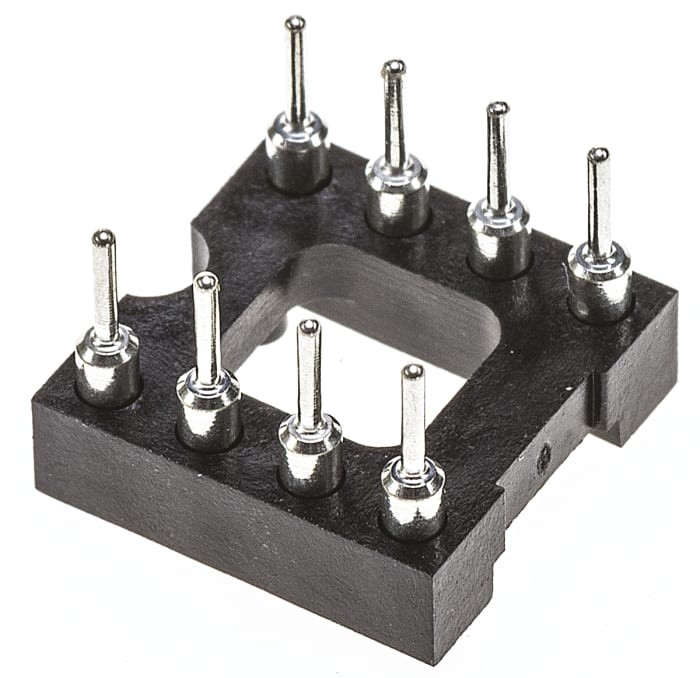

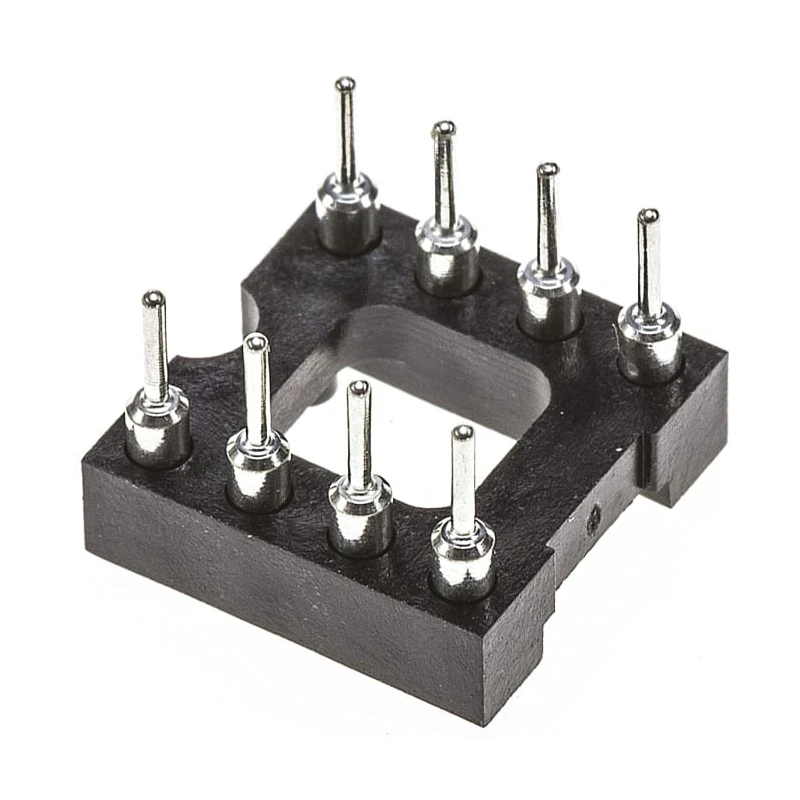

Preci-Dip 2.54 mm Pitch Vertical 8 Way Through Hole Turned Pin Open Frame DIL Socket 1A 110-87-308-41-001101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 100, 150V ac |
| Brand | Preci-Dip |
| Orientation | Vertical |
| Current | 1A |
| Frame Type | Open Frame |
| Length | 10.1mm |
| Depth | 2.8mm |
| Width | 10.1mm |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Beryllium Copper Alloy, Brass |
| Series | 110 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Tin, Gold |
| Number of Contacts | 8 |
| Pin Type | Turned |
| Row Width | 7.62mm |
| Stock numbers | 702-0691 , 702-2704 , 702-2701 , 702-2713 , 702-2767, 702-2779 , 702-2773 , 702-2798 and 702-2808 are without a centre bar |
Key Features
- This DIL socket offers through-hole mounting with turned pins for durability.
- It supports a maximum operating temperature of 125°C and minimum of -55°C.
- Constructed with a beryllium copper alloy and brass contact material plated with tin and gold.
- The housing is made of fibreglass reinforced polyethylene terephthalate for strength.
- Designed with vertical orientation and an open frame for easy inspection and testing.
- Compatible with 100 to 150V AC voltage applications.
- The row width is 7.62 mm and the socket length and width are both 10.1 mm.
- Suitable for industrial electronics, PCB assembly, and testing applications.
Product Description
Preci-Dip 110-87-308-41-001101 is a high-quality DIL socket featuring an 8 way vertical open frame design with a 2.54 mm pitch and a 1A current rating, suitable for various electronic component connections.
This through-hole mounted socket with turned pins ensures secure and durable connections in PCB and industrial electronics assemblies. It operates reliably within a temperature range from -55°C to 125°C, making it ideal for demanding applications.
The contact material consists of beryllium copper alloy and brass with tin and gold plating for excellent conductivity and corrosion resistance. The socket housing is constructed from fibreglass reinforced polyethylene terephthalate providing mechanical strength and durability.
The vertical orientation and open frame design facilitate ease of visual inspection and in-circuit testing on printed circuit boards. This DIL socket supports AC voltages of 100 to 150V. The precise 2.54 mm pitch and 7.62 mm row width ensure compatibility with standard dual in-line packages.
Its compact dimensions (10.1 mm length and width, 2.8 mm depth) accommodate various PCB layouts. Widely used in industrial electronics, laboratory devices, power connectors, and manufacturing processes. Manufactured in Switzerland, it meets high-quality standards for reliability.
Explore additional Preci-Dip DIL Sockets and related connectors for your electronics and industrial component needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this DIL socket is 125°C.
It supports AC voltages ranging from 100 to 150V.
The contact material consists of a beryllium copper alloy and brass, plated with tin and gold for enhanced conductivity and corrosion resistance.
The pitch of this DIL socket is 2.54 mm.
The socket has a length and width of 10.1 mm and a depth of 2.8 mm.
This model features 8 contacts.
The orientation of this socket is vertical.
It uses through-hole mounting for secure installation.
The housing is made of fibreglass reinforced polyethylene terephthalate.
This socket features solder termination.
The row width is 7.62 mm.
This DIL socket is manufactured in Switzerland.
