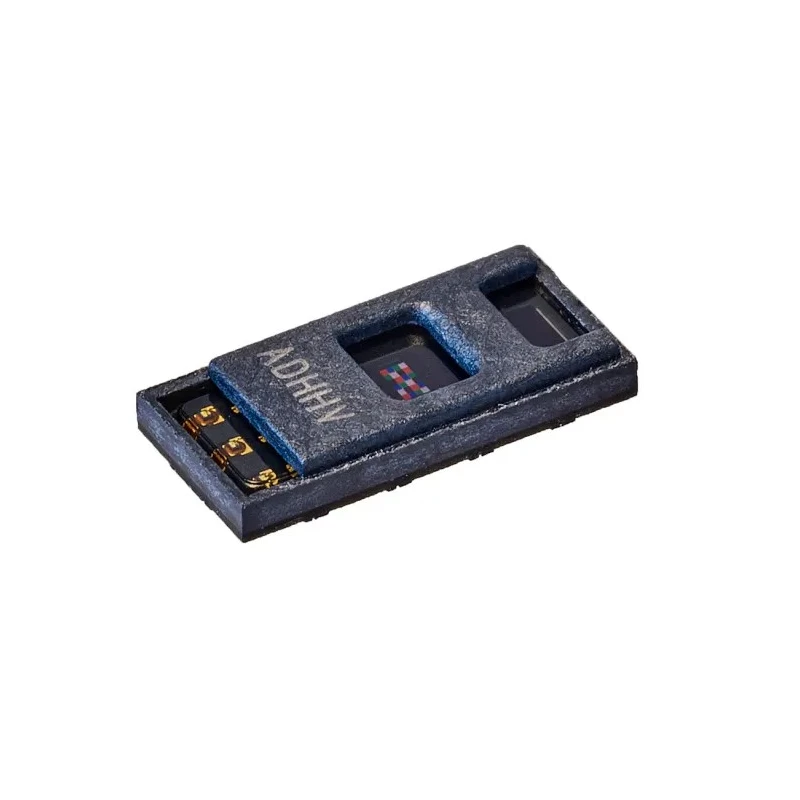

ams OSRAM Ambient Light & Proximity Sensor 84 mm 1.7 V - 1.98 V Digital Output 10 Pin OLGA Package TMD3719

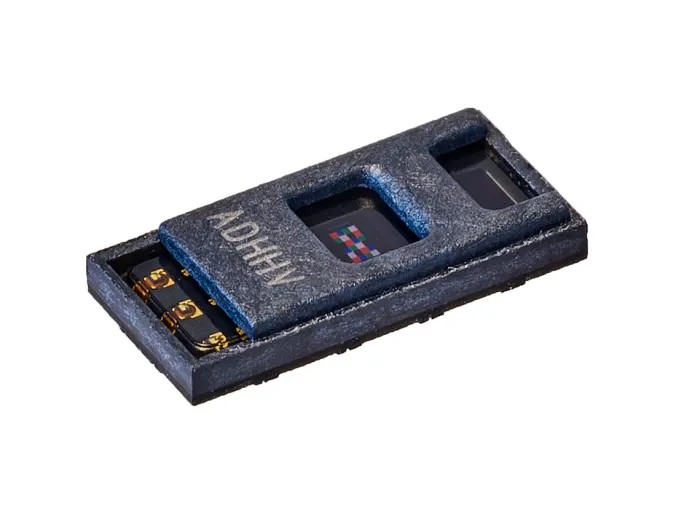

ams OSRAM TMD3719 Ambient Light & Proximity Sensor is designed for precise ambient light, colour sensing, flicker detection, and proximity measurement applications in electronics and semiconductor devices. Packaged in a low-profile OLGA surface mount package measuring 6.35 mm × 3 mm × 1 mm with 10 pins, it offers robust integration capabilities.

The sensor incorporates an advanced VCSEL driver and three infrared VCSEL emitters to lower optical power density while ensuring accurate proximity detection up to 84 mm distance. The ambient light sensing supports six concurrent channels: red, green, blue, clear, leakage, and wideband, with dedicated UV/IR blocking filters on RGBL and clear channels. This enhances measurement accuracy in diverse lighting environments, enabling the calculation of illuminance, chromaticity, and colour temperature useful for display management.

Operable within a supply voltage range of 1.7 V to 1.98 V, the device features a maximum switching frequency of 400 kHz with digital output type signals. The maximum output current is 20 mA, with a peak output voltage of 360 mV. It operates reliably in temperatures ranging from -30°C to 85°C, suitable for various industrial and consumer electronic environments.

The surface mount OLGA package simplifies assembly in compact electronic designs. Multiple integrated features such as flicker detection and synchronized proximity operation behind OLED displays reduce display distortion and improve lux accuracy.

This product is manufactured in Taiwan, Province of China under ams OSRAM brand, assuring quality and compliance with semiconductor standards. The sensor provides integrated ambient light and proximity functionalities in one device.

Low optical power density is achieved through multiple IR VCSEL emitters. The 10-pin OLGA package is compact for modern electronics. Wide operating temperature range supports diverse applications. Improved lux accuracy for ambient light sensing behind OLED displays.

Synchronized proximity function reduces display distortions. Advanced VCSEL driver integration enhances sensor performance. Digital output supports efficient signal processing in embedded systems. Manufactured in Taiwan ensuring high-quality semiconductor standards.

Suitable for industrial, consumer electronics, and display management applications.

For additional technical information, design resources, and CAD models, users can utilize available ams OSRAM documentation and support tools. This sensor is ideal for integration in laboratory instruments, industrial equipment, consumer electronics, and HVAC systems requiring accurate light and proximity sensing.
