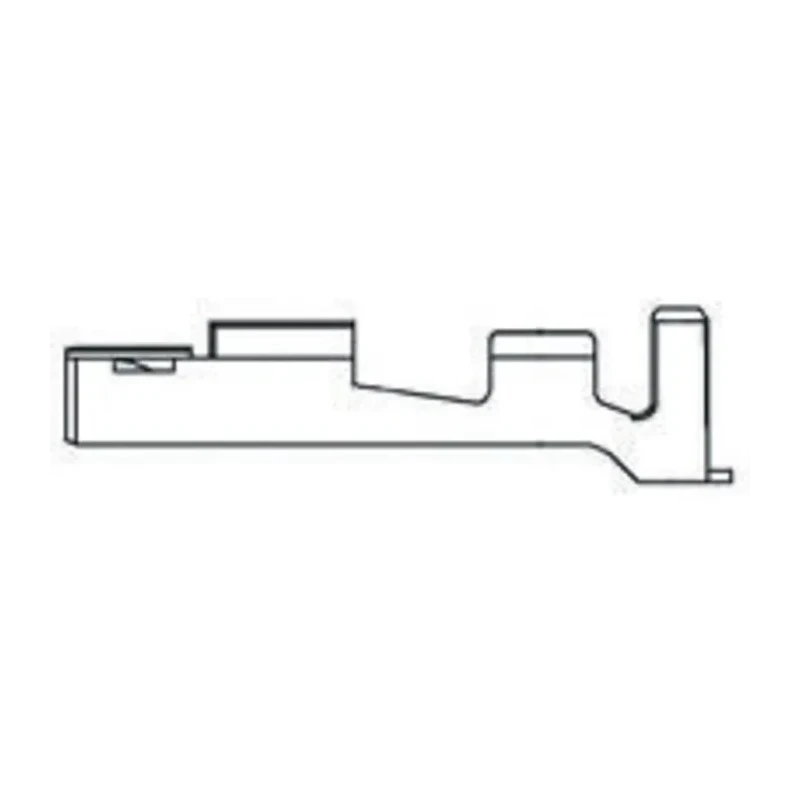

TE Connectivity AMP Universal Power Series Female Crimp Terminal 12A Tin Plated Brass 175156-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 12A |
| Model | 175156-2 |
| Gender | Female |
| Contact Material | Brass |
| Series | AMP Universal Power |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | AMP Universal Power Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed for AMP Universal Power Connector Housing compatibility.
- Supports wire sizes from 20 AWG (0.5 mm²) up to 16 AWG (1.4 mm²).
- Provides low contact resistance of maximum 20 milliohms.
- Operates within temperature range of -30°C to 105°C.
- Termination is via a crimp type for secure wire connection.
- Contact plating is tin enhancing corrosion resistance and conductivity.
- Brass contact material ensures durability and good electrical performance.
- Suitable for use in electronic, industrial power, and PCB connector applications.
Product Description
TE Connectivity 175156-2 AMP Universal Power Series Female Crimp Terminal is a precision-engineered product designed for dependable power connectivity in electronic and industrial applications. It features a female contact suitable for AMP Universal Power Connector Housing, supporting wire sizes from 20 AWG minimum to 16 AWG maximum, accommodating currents up to 12 amperes.
The terminal's brass contact material is tin plated to provide enhanced conductivity and protect against corrosion, ensuring longevity and reliable electrical performance. It offers a maximum contact resistance of 20 milliohms, contributing to efficient current flow with minimal loss.
This crimp terminal operates effectively within a temperature range of -30°C to 105°C, making it suitable for various demanding environments including industrial electronics, power supply assemblies, and PCB wiring harnesses. The crimp termination type ensures a secure mechanical and electrical connection with wire conductors, improving reliability.
Typical use cases include incorporation into AMP Universal Power Connector Housings, power distribution systems, and electronic devices requiring durable, low-resistance contacts for power transfer. The part number 175156-2 identifies this specific female crimp contact within TE Connectivity's universal power series.
Compatible with AMP Universal Power Connector Housings for versatile power connection solutions. Supports minimum 20 AWG to maximum 16 AWG wire sizes for flexible wiring options. Tin plated brass contacts provide corrosion resistance and excellent conductivity.
Low maximum contact resistance of 20 milliohms ensures efficient power flow. Operational temperature range from -30°C up to 105°C suits demanding industrial environments. Crimp termination allows quick and reliable wire attachment.
Suitable for electronic, industrial, and power connector assemblies. Part of TE Connectivity’s Universal Power Range facilitating standardized power contacts.
TE Connectivity's AMP Universal Power Series Female Crimp Terminal 175156-2 is ideal for engineers and technicians seeking robust, standardized power contacts for electronic and industrial connector solutions. Discover the broad range of TE Connectivity Power Connectors and components at EnvMart for reliable system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this crimp terminal is 12 amperes.
It supports wire sizes from 20 AWG (0.5 mm²) to 16 AWG (1.4 mm²).
The maximum contact resistance is 20 milliohms.
This terminal operates effectively within a temperature range of -30°C to 105°C.
It uses a crimp termination type for secure wire connection.
The contact material is brass, and it is tin plated for enhanced conductivity and corrosion resistance.
It is designed for compatibility with AMP Universal Power Connector Housings.
It is suitable for use in electronic, industrial power, and PCB connector applications.
The country of origin for this product is India.
This terminal belongs to the AMP Universal Power Series.
This crimp terminal is female.
The tin plating enhances conductivity and protects against corrosion, contributing to reliable electrical performance.
