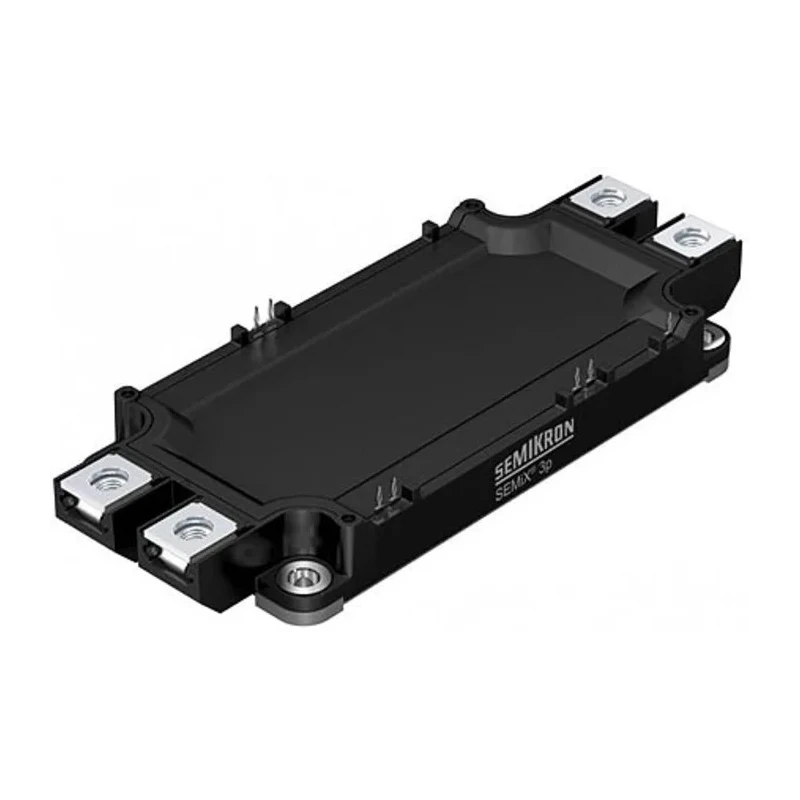

Semikron Danfoss N-Channel IGBT Module SEMiX603GB12E4p, 1.1 kA, 1200 V, 11-Pin SEMiX3p Surface Mount

Semikron Danfoss SEMiX603GB12E4p N-Channel IGBT Module provides high-efficiency power switching with a maximum continuous collector current of 1.1 kA and a maximum collector emitter voltage of 1200 V. Packaged in the low-profile SEMiX3p format, this surface mount module incorporates Trenchgate IGBTs for fast switching and power handling.

The solder-free spring and press-fit contacts allow direct mounting of gate drivers on top of the module, which saves PCB space and improves connection reliability, making it ideal for compact and high-density power electronics designs.

This module supports a broad operating temperature range from -40°C to 175°C, allowing deployment in demanding applications including industrial automation, renewable energy systems, uninterruptible power supplies (UPS), and electronic welding equipment. The device features a maximum gate emitter voltage rating of 20 V, ensuring robust control signals for high switching speeds.

The module's positive temperature coefficient of collector emitter saturation voltage enhances safe operation under thermal stress conditions, while its high short circuit current capability increases operational reliability. Physical dimensions include 17 mm height, 150 mm length, and 62.4 mm width, suitable for integration into constrained spaces.

While this product is not certified for automotive standards, it is UL recognized, confirming compliance with relevant safety regulations. Users looking for gate driver modules compatible with press-fit mounting should consider related models 122-0385 to 122-0387.

Equipped with 11 pins in SEMiX3p surface mount package. Trenchgate technology IGBTs for high-efficiency switching. Solder-free mounting with press-fit spring contacts. Operating temperature range from -40°C to 175°C. Maximum gate emitter voltage of 20 V.

Positive temperature coefficient for saturation voltage. High short circuit current capability. Measured dimensions: 17 mm height, 150 mm length, 62.4 mm width. UL recognition certifies safe industrial use. Designed for power applications such as inverters and UPS systems.
