Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Surface Mount SMC Package SMCJ48CA-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ48CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 77.4V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 53.3V |
| Maximum Reverse Stand-off Voltage Vwm | 48V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 19.4A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Features a single diode configuration ensuring effective transient voltage suppression.
- Bi-directional design suitable for protecting circuits from both positive and negative voltage transients.
- Surface mount package type SMC offers compact board footprint and easy assembly.
- Rated maximum peak pulse power dissipation of 1.5 kW and peak pulse current of 19.4 A.
- Operating temperature range from -55°C to 150°C ensures reliability in harsh environments.

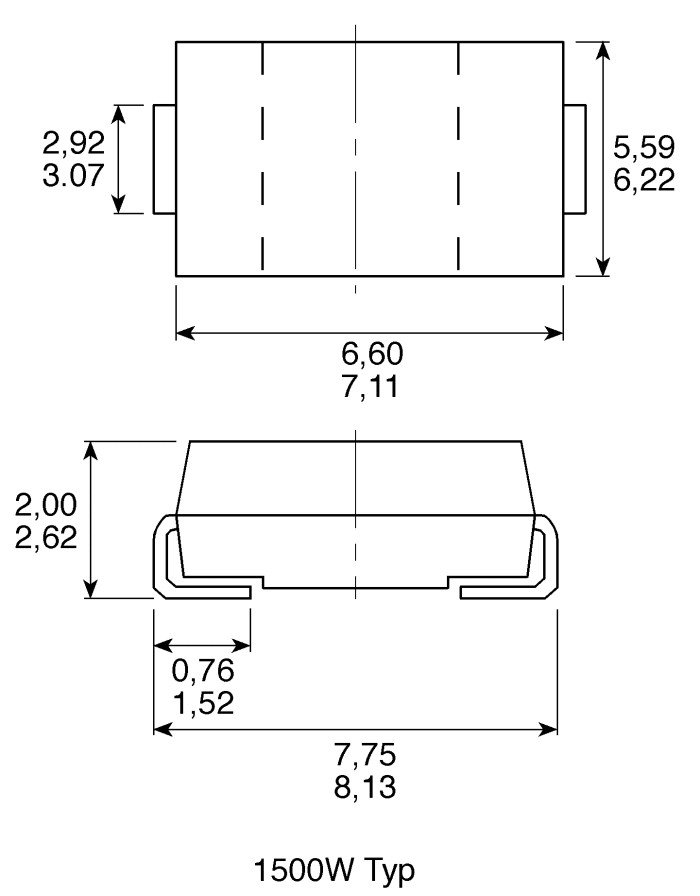

- Package dimensions are 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- Clamping voltage at 77.4 V protects sensitive electronics from surges.
- Complies with automotive standard AEC-Q101, enhancing suitability for automotive electronics protection.
Product Description
Vishay SMCJ48CA-E3/57T is a high-performance 1-element bi-directional transient voltage suppressor (TVS) diode designed for surface mount applications to protect sensitive electronic components from voltage spikes and transient surges. The device features a surface mount SMC package, enabling compact and efficient PCB assembly.
This TVS diode delivers a peak pulse power dissipation of 1.5 kW and is capable of withstanding a maximum peak pulse current of 19.4 A, providing robust transient surge protection. It operates within a wide temperature range from -55°C to 150°C, allowing it to function reliably in industrial, automotive, and harsh environmental conditions.
The diode's bi-directional design ensures protection against both positive and negative voltage transients, making it ideal for AC and DC circuit protection. Its clamping voltage of 77.4 V ensures that voltage spikes are effectively suppressed, safeguarding downstream electronics.
With dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, this compact component suits modern electronics with limited PCB space. Its compliance with the AEC-Q101 automotive standard highlights its suitability for automotive electronic protection applications.
Additional features include ESD protection capabilities, a minimum breakdown voltage of 53.3 V, and a maximum reverse stand-off voltage of 48 V. The device is single-element configured, enhancing its simplicity and effectiveness in transient voltage suppression tasks.
Single diode configuration for effective transient voltage suppression. Bi-directional to protect against positive and negative transients. Surface mount SMC package for compact assembly. Peak pulse power dissipation of 1.5 kW and peak pulse current of 19.4 A.
Operating temperature range from -55°C to 150°C for reliability. Compact package dimensions: 7.11 x 6.22 x 2.42 mm. Clamping voltage of 77.4 V to protect sensitive electronics. Meets AEC-Q101 automotive standard for enhanced automotive suitability.
ESD protection to safeguard against electrostatic discharge. Minimum breakdown voltage of 53.3 V and reverse stand-off voltage of 48 V.
This Vishay TVS Diode is widely used in industrial, automotive, manufacturing, and electronic circuit protection applications, ensuring reliable performance during voltage transient events. Browse EnvMart's extensive semiconductor categories for more electronic components and discrete diodes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 1.5 kW.
The clamping voltage is 77.4 V, which helps protect sensitive electronics from voltage spikes.
It operates within a temperature range of -55°C to 150°C, ensuring reliability in harsh environments.
The maximum peak pulse current is 19.4 A, providing robust protection against transient surges.
The dimensions are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
Yes, it complies with the AEC-Q101 automotive standard, making it suitable for automotive electronics protection.
It features a single diode configuration, which enhances its effectiveness in transient voltage suppression.
The minimum breakdown voltage is 53.3 V.
The maximum reverse stand-off voltage is 48 V, which helps in protecting the circuit from overvoltage conditions.
This diode is designed for surface mount applications, allowing for compact PCB assembly.
Yes, it includes ESD protection capabilities to safeguard against electrostatic discharge.
This model has a single element per chip, simplifying its integration into electronic circuits.
