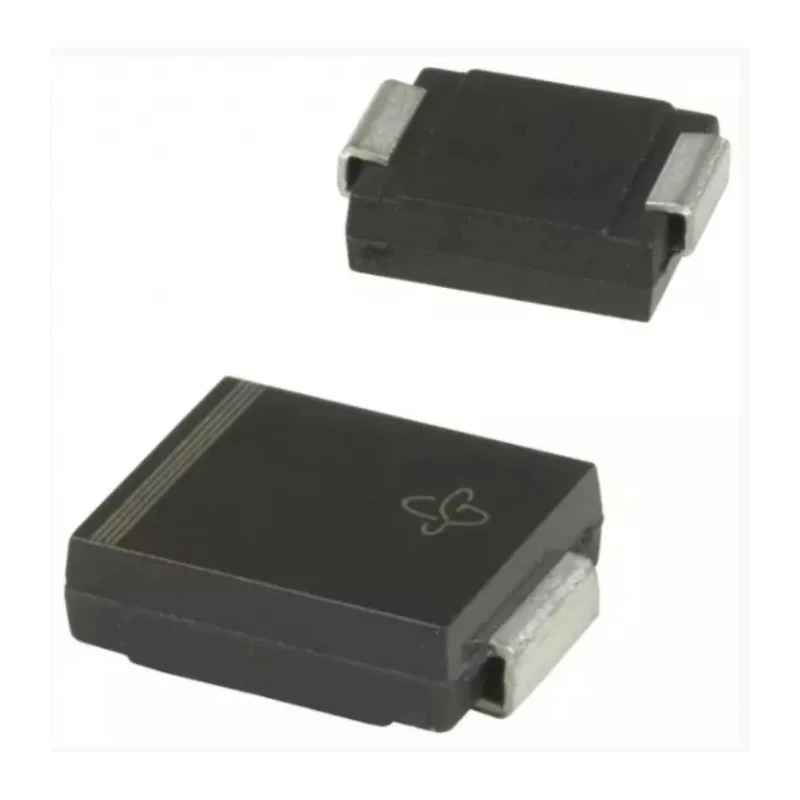

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Surface Mount SMC Package SMCJ36CA-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ36CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 58.1V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 40V |
| Maximum Reverse Stand-off Voltage Vwm | 36V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25.8A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for protection against voltage surges in electronic circuits.
- Bi-directional diode configuration suitable for AC and DC applications.
- Typical breakdown voltage of 40 V and maximum reverse stand-off voltage of 36 V.
- Compact SMC package with dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height.
- Operating temperature range from -55°C to 150°C ensures reliable performance under extreme conditions.
- Peak pulse current rating of 25.8 A supports robust surge handling capability.
- Clamping voltage of 58.1 V for effective transient voltage suppression.
- Meets automotive standard AEC-Q101 for enhanced automotive reliability.
Product Description
Vishay SMCJ36CA-E3/57T is a single-element, bi-directional transient voltage suppression (TVS) diode designed for high power dissipation of 1.5 kW. This device provides efficient surge protection in electronic circuits by clamping and absorbing voltage spikes, safeguarding sensitive components from damage.
Encapsulated in a compact surface mount SMC package, this TVS diode has a breakdown voltage of 40 V and can withstand a maximum reverse stand-off voltage of 36 V. Its pin count of two allows for easy integration on PCBs, while the robust construction supports operation over a wide temperature range from -55°C to 150°C.
The diode's peak pulse current capacity of 25.8 A and clamping voltage of 58.1 V ensure the device can handle high transient events effectively. Its low maximum leakage current of 1 μA further contributes to energy efficiency. This product meets the stringent automotive standard AEC-Q101, making it suitable for automotive applications requiring high reliability.
This TVS diode finds extensive use in industrial, automotive, and consumer electronic applications where transient voltage protection is critical. It serves industries such as manufacturing, telecommunications, automotive electronics, and power supply protection.
Designed for transient voltage suppression in electronic circuits. Bi-directional configuration enables AC and DC surge protection. High peak pulse power dissipation of 1.5 kW. Compact surface mount package for space-saving PCB design.
Wide operating temperature range from -55°C to 150°C. Meets AEC-Q101 automotive standard for reliability. Low leakage current minimizes power loss. Robust construction suitable for harsh industrial environments. Enables protection of sensitive components against damaging voltage spikes.
Easy to integrate into automated manufacturing processes. Explore more Vishay Semiconductor products and comprehensive TVS Diode solutions at EnvMart to enhance your circuit protection designs and assembly efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the Vishay SMCJ36CA-E3/57T is 1.5 kW, allowing it to handle high transient voltage events effectively.
The typical breakdown voltage of this TVS diode is 40 V, which is essential for its operation in protecting circuits from voltage surges.
The maximum reverse stand-off voltage for the SMCJ36CA-E3/57T is 36 V, ensuring it can withstand high voltage conditions without conducting.
The clamping voltage for this model is 58.1 V, which helps in effectively suppressing transient voltage spikes.
This TVS diode operates within a temperature range of -55°C to 150°C, making it suitable for extreme environmental conditions.
The maximum peak pulse current rating for the SMCJ36CA-E3/57T is 25.8 A, which supports its robust surge handling capability.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, allowing for compact PCB designs.
This model features a single element configuration, which is typical for its application in transient voltage suppression.
The pin count for this diode is two, facilitating easy integration into printed circuit boards (PCBs).
This TVS diode meets the AEC-Q101 automotive standard, ensuring enhanced reliability for automotive applications.
The maximum reverse leakage current for the SMCJ36CA-E3/57T is 1 μA, contributing to its energy efficiency.
The SMCJ36CA-E3/57T is designed for surface mounting, which is advantageous for space-saving PCB layouts.
