ams OSRAM 2 V Red LED 2012 Surface CHIP LED 0805 LS R976-NR-1

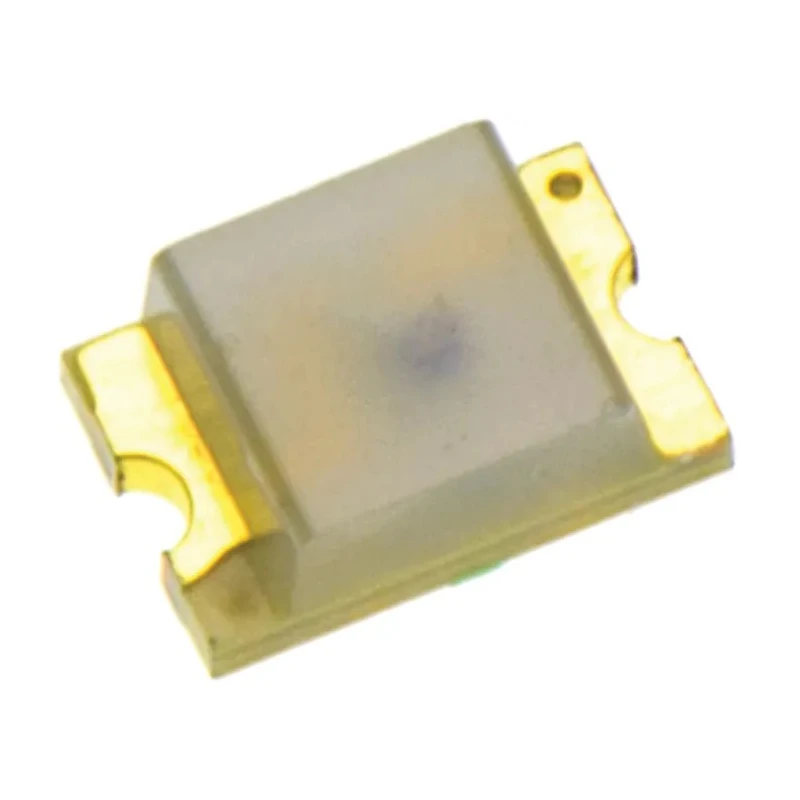

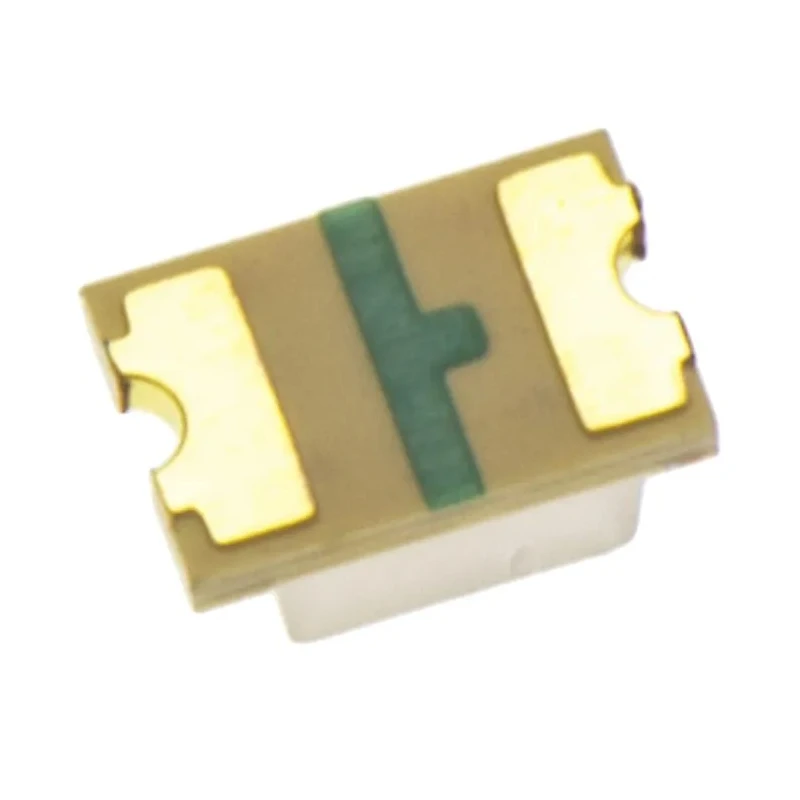

The ams OSRAM LS R976-NR-1 2 V Red LED 2012 Surface CHIP LED 0805 is designed for compact electronic devices requiring efficient and reliable red LED indicators. Featuring a compact 0805 standard rectangular chip LED form factor with dimensions of 2.0 x 1.25 x 0.8 mm, it fits well in space-constrained applications.

Its maximum forward current of 25 mA enables bright illumination with a luminous intensity of 146 mcd and a luminous flux of 0.47 lm. The forward voltage of 2 V assures compatibility with a variety of low voltage circuits. The wide 160-degree viewing angle allows excellent visibility from multiple directions.

The LED's clear lens finish and colourless diffused resin package ensures precise and consistent light output with a dominant wavelength of 633 nm. This red LED is RoHS compliant, meeting environmental directives for safe usage.

Typical usage includes electronic indicators, display backlighting, floor marker lighting, and toys where signal clarity and compact footprint are essential. Packaged in tape and reel, it supports automated PCB assembly and volume manufacturing.

The LED features a red colour with a dominant wavelength of 633 nm. Maximum forward current is 25 mA ensuring efficient operation. Package type is industry standard 2012, with tape and reel packaging for automated assembly.

Surface mount type ensures easy PCB integration with two pins. Forward voltage is 2 V, suitable for low voltage circuits. Viewing angle of 160 degrees provides wide light dispersion. LED luminosity rating is 146 mcd for bright indication.

The lens is rectangular, clear with dimensions 2.0 x 1.25 x 0.8 mm for precise light emission. RoHS compliant ensuring environmental safety and quality.

This robust ams OSRAM LED series is well-suited for industrial, commercial, and consumer electronics where reliable visual signalling is crucial. For expanded alternatives and technical support, browse the LED category at EnvMart.
