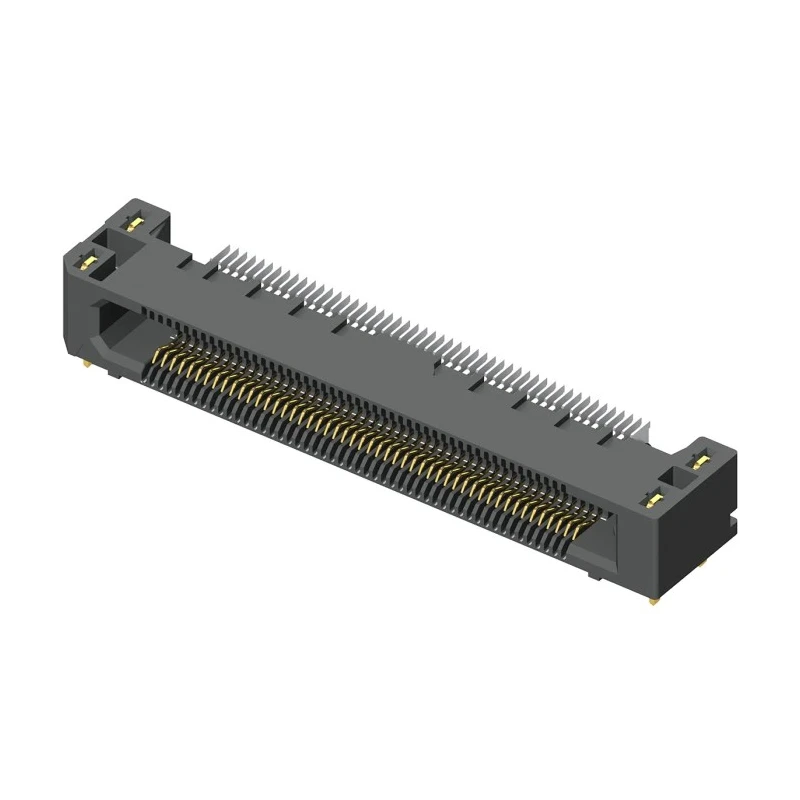

Samtec ERF5 Series Right Angle Surface PCB Socket, 100-Contact, 2 Row, 0.5 mm Pitch Solder ERF5

Samtec ERF5 Series Right Angle Surface PCB Socket ERF5 is a high-performance 0.5 mm pitch, 100-contact, 2-row SMT PCB socket designed for reliable board-to-board connections in demanding industrial and electronic applications.

Its Beryllium Copper Alloy contacts are plated with gold to maintain excellent electrical conductivity and mechanical durability, supporting a current rating of 1.6 A and voltage up to 194 V. The socket housing is made of Liquid Crystal Polymer, offering stable performance in a temperature range from -55°C to 125°C.

This right angle orientation socket features ruggedized Edge Rate contacts with a smooth milled surface to minimize wear and insertion forces, allowing for efficient zippered unmating. It is specifically engineered to reduce broadside coupling and crosstalk, delivering superior signal integrity suitable for high-speed data transfer applications up to 28 Gbit/s.

The stacking height of 12 mm enables combination with the ERM5 series SMT headers for flexible mating height options between 7 mm and 12 mm, accommodating various PCB designs. The solder termination and surface mount configuration facilitate robust and compact board assembly.

Features 0.5 mm pitch for precise and compact connections. Incorporates Beryllium Copper Alloy contacts plated with gold for durability and conductivity. Supports a current rating of 1.6 A and voltage rating up to 194 V.

Right angle orientation with surface mount technology (SMT) for versatile PCB layouts. Constructed with Liquid Crystal Polymer housing providing thermal stability from -55°C to 125°C. Stacking height is 12 mm, compatible with ERM5 series headers for varied mating heights.

Engineered with ruggedized Edge Rate contacts for high cycle durability and reduced contact wear. Designed to reduce crosstalk and ensure high signal integrity with minimized insertion and withdrawal forces.

This connector is suited for industrial, manufacturing, electronic device assembly, telecommunications, and instrumentation applications requiring reliable high-speed board-to-board interfaces. Samtec’s ERF5 series represents advanced engineering for electronic connectivity solutions.
