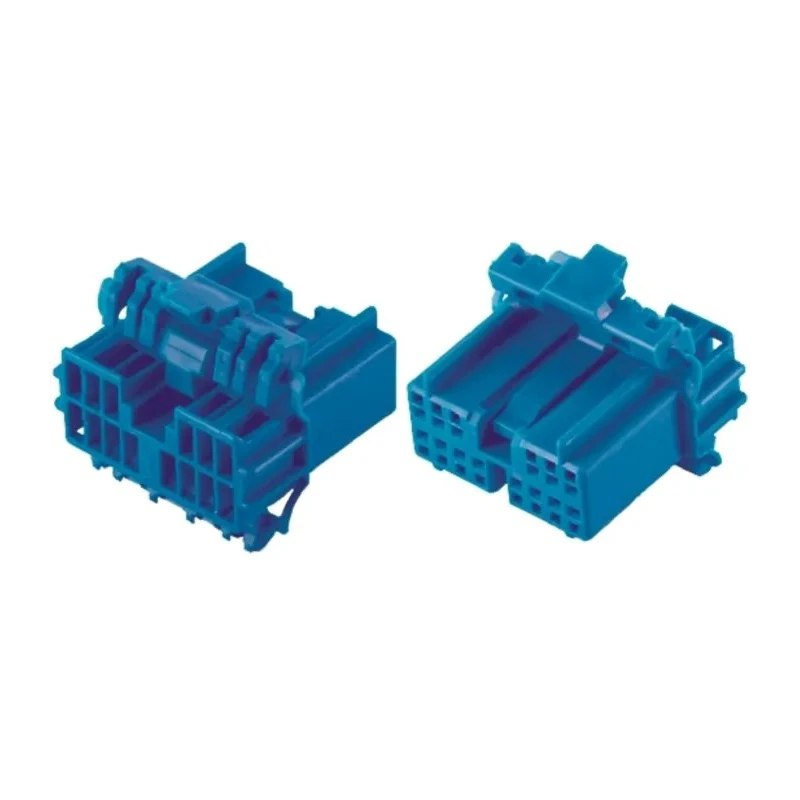

JAE IL-AG5-22SK-D3C1-LB Automotive Connector Female Blue Cable 22 Way Crimp Termination
Specifications
| Country of Origin | India |
|---|---|
| Brand | JAE |
| Colour | Blue |
| Current | 3A |
| Height | 12.8mm |
| Model | IL-AG5-22SK-D3C1-LB |
| Depth | 24.6mm |
| Width | 36.7mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | IL-AG5 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Contact Plating | Tin |
| Number of Contacts | 22 |
Key Features
- Connector features 22 contacts with crimp termination for secure connections.
- Designed as a female cable mount with a single row configuration.
- Current rating of 3A suitable for automotive instrument panel uses.
- Blue polybutylene terephthalate housing offers durability and resistance.
- Operating temperature range from -40°C to +85°C ensures reliability in harsh conditions.
- Tin-plated contacts minimize corrosion and ensure good electrical conductivity.
- Mechanical and double lock mechanisms prevent contact dislodging and mismating.
- Polarized socket housing simplifies mating to prevent incorrect connections.
Product Description
JAE IL-AG5-22SK-D3C1-LB Automotive Connector Female Blue Cable 22 Way Crimp Termination is a high-quality connector designed specifically for automotive electrical systems.
The connector supports 22 contacts arranged in a single row and uses crimp-type termination to ensure secure and stable electrical connections. Rated for a current of 3A, it is ideal for automotive instrument panel use where reliable connectivity is essential.
Featuring a durable polybutylene terephthalate housing in blue, the connector withstands operating temperatures ranging from -40°C to 85°C, making it suitable for harsh automotive environments. The tin-plated contacts help prevent corrosion while ensuring excellent conductivity.
Mechanical locks and a double locking mechanism ensure positive mating and prevent accidental dislodging of contacts during operation. The unique housing configuration provides polarization to avoid mismating, enhancing installation accuracy and electrical safety.
The compact dimensions of 36.7mm width, 12.8mm height, and 24.6mm depth allow for space-efficient integration in electrical systems. This connector is not supplied with a cord and is available as a production pack (bag) for efficient manufacturing assembly.
JAE IL-AG5 series automotive connectors are widely used in automotive electrical harnesses, industrial machinery, and other transportation equipment installations where dependable performance and durability are required.
Connector features 22 contacts with crimp termination for secure connections. Designed as a female cable mount with a single row configuration. Current rating of 3A suitable for automotive instrument panel uses. Blue polybutylene terephthalate housing offers durability and resistance.
Operating temperature range from -40°C to +85°C ensures reliability in harsh conditions. Tin-plated contacts minimize corrosion and ensure good electrical conductivity. Mechanical and double lock mechanisms prevent contact dislodging and mismating.
Compact dimensions: 36.7mm width, 12.8mm height, and 24.6mm depth. Polarized socket housing simplifies mating to prevent incorrect connections.
This connector is an essential component for automotive electrical systems, industrial manufacturing, HVAC, and transportation equipment applications. Browse more Automotive Connectors and electrical components at EnvMart for dependable industrial-grade electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 3A, making it suitable for automotive instrument panel applications.
This model features 22 contacts arranged in a single row configuration.
The housing is made of polybutylene terephthalate, which provides durability and resistance.
The dimensions are 36.7mm in width, 12.8mm in height, and 24.6mm in depth.
It uses crimp termination to ensure secure and stable electrical connections.
Yes, it features mechanical locks and a double locking mechanism to prevent contact dislodging and mismating.
Yes, the polarized socket housing simplifies mating and prevents incorrect connections.
The connector is blue in color.
The connector is manufactured in India.
It is suitable for automotive electrical systems, industrial machinery, and transportation equipment.
The contacts are tin-plated to minimize corrosion and ensure good electrical conductivity.
