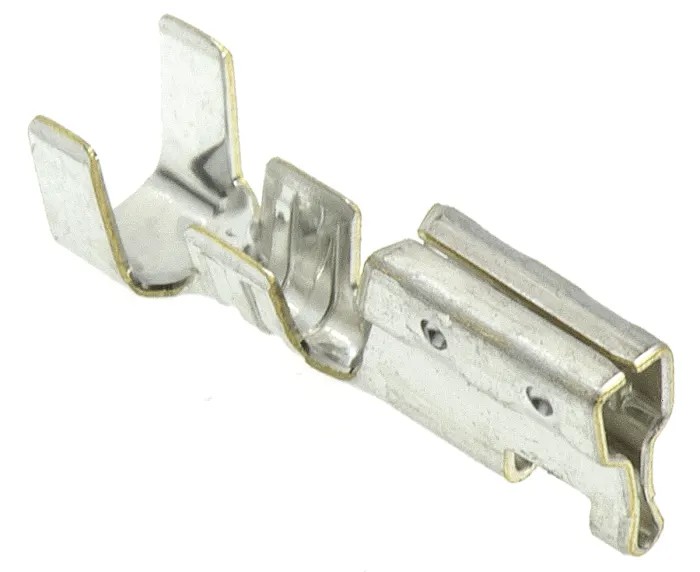

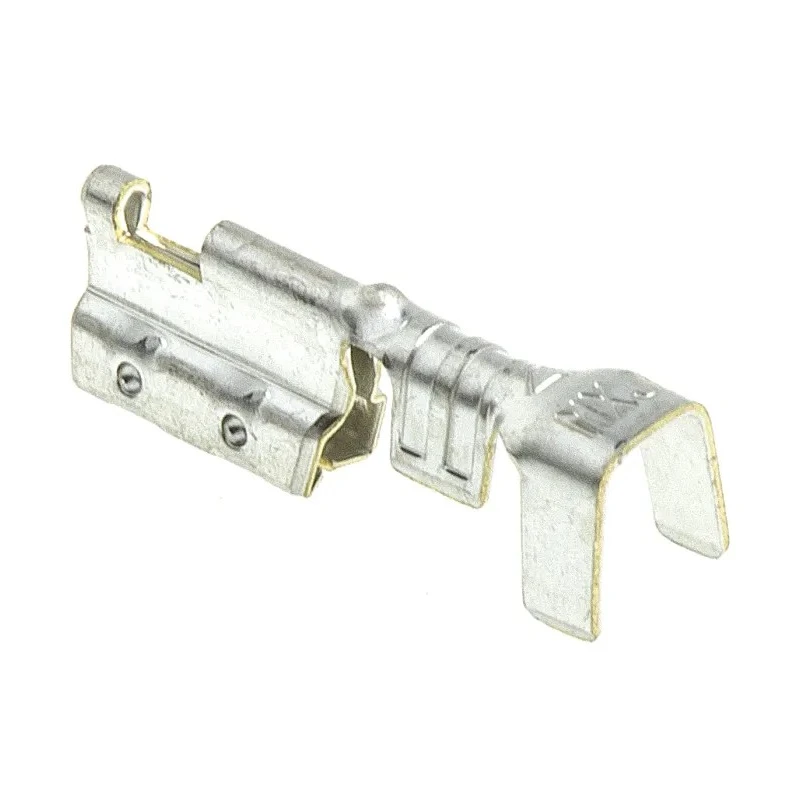

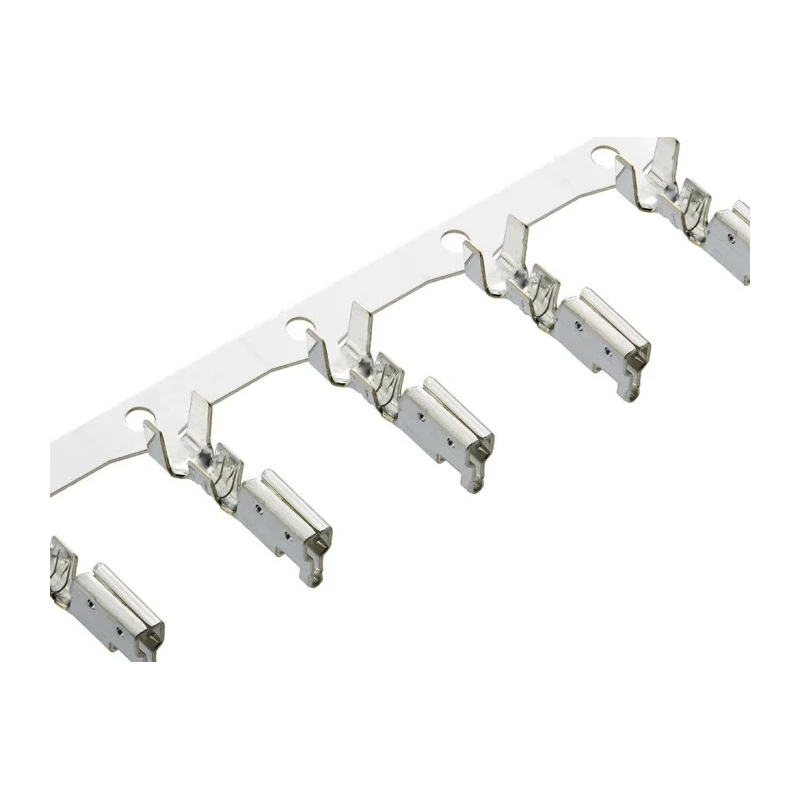

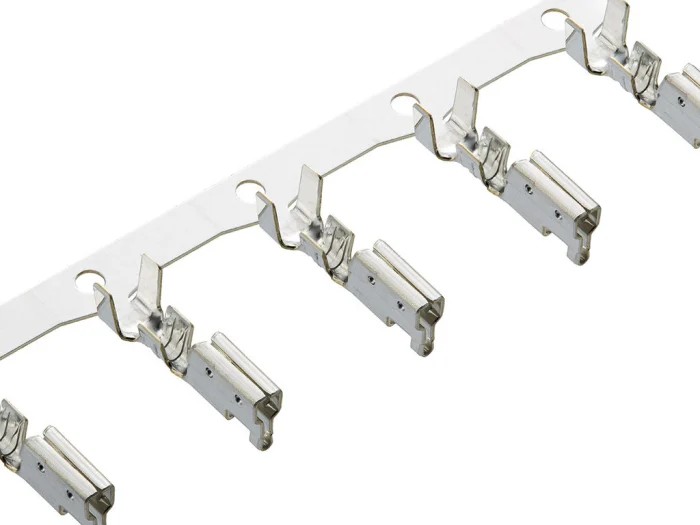

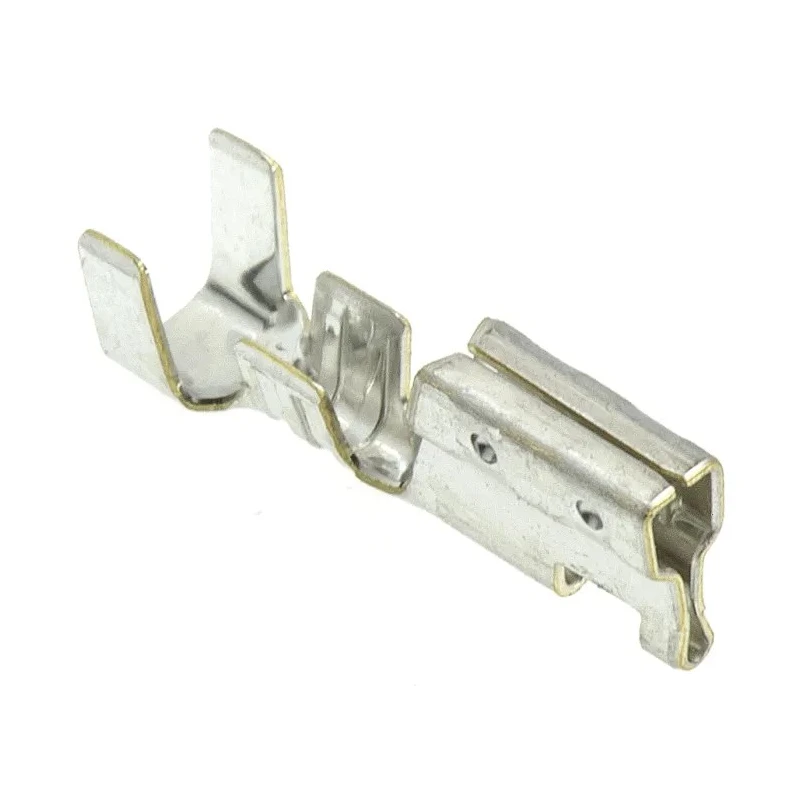

Molex Female Crimp Terminal 7A Current, Brass Contact with Tin Plating, 24 AWG to 18 AWG Wire Size, 5194 Series 08-70-1030
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Current | 7A |
| Gender | Female |
| Contact Material | Brass |
| Series | 5194 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SPOX Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with tin plating to ensure excellent conductivity and corrosion resistance.
- Designed with spring box style contact for secure multi-point electrical connection.
- Suitable for use with SPOX connector housing for easy PCB wire connections.
- Operates reliably in temperature range of -40°C to 105°C for versatile environments.
- Low contact resistance of 10 milliohms minimizes signal loss in critical circuits.
- Low-halogen construction reduces harmful fumes during soldering or heating conditions.
- Compatible with wire diameters from 0.2 mm² to 0.8 mm² supporting broad wiring options.
Product Description
Molex 08-70-1030 is a female crimp terminal from the 5194 series designed for efficient electrical wire-to-board connections. This terminal supports a current of 7 amps and is compatible with wire sizes ranging from 24 AWG minimum to 18 AWG maximum, allowing for flexible application scope in electronic assembly work.
Manufactured with a brass contact material and tin plating, the terminal ensures excellent conductivity and resistance to corrosion. The spring box style contact design provides multiple points of electrical contact, enhancing connection reliability and protecting the mating interface area. The crimp termination technique creates a tight, moisture-resistant seal that prevents oxidation and signal interruptions.
Operating temperature range from -40°C to 105°C enables use in harsh industrial, automation, robotics, and networking environments. The low contact resistance of 10 milliohms guarantees minimal electrical loss. Molex's spring box construction also minimizes wire damage during handling, ensuring long-term durability.
Applications include computer networking, factory automation, robotics systems, and other electronic component assemblies requiring high reliability and effective signal transmission. This terminal works with SPOX connector housings for streamlined PCB wiring and assembly.
Brass contact with tin plating for high conductivity and corrosion resistance. Spring box style multiple points of contact ensuring signal integrity. Crimp termination for a secure, moisture-resistant electrical joint. Wire size range from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²).
Current rating of 7A suitable for moderate power electronic circuits. Temperature range from -40°C to 105°C for industrial applications. Lightweight design at approximately 0.185 g to prevent PCB stress. Low halogen content for reduced hazardous fumes during processing.
This Molex 08-70-1030 female Crimp Terminal is ideal for industrial and electronic manufacturing sectors requiring robust and reliable wire-to-board connections. Explore more Molex connectors and terminals in the Electronics Components category at EnvMart for your industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal has a current rating of 7A, making it suitable for moderate power electronic circuits.
It is compatible with wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²), providing flexibility in wiring options.
The terminal operates reliably within a temperature range of -40°C to 105°C, suitable for various industrial environments.
The contact is constructed from brass and features tin plating, which ensures excellent conductivity and corrosion resistance.
The crimp termination technique creates a tight, moisture-resistant seal that prevents oxidation and signal interruptions, enhancing connection reliability.
The maximum contact resistance is 10 milliohms, which helps minimize electrical loss in critical circuits.
This model is designed for use with SPOX connector housings, facilitating easy PCB wire connections.
It is suitable for applications in computer networking, factory automation, robotics systems, and other electronic component assemblies requiring high reliability.
This terminal weighs approximately 0.185 grams, which helps prevent stress on the PCB during assembly.
Yes, it features a low-halogen construction that reduces harmful fumes during soldering or heating conditions.
This terminal belongs to the 5194 series, which is known for its efficient wire-to-board connections.
The country of origin for this crimp terminal is Japan.
