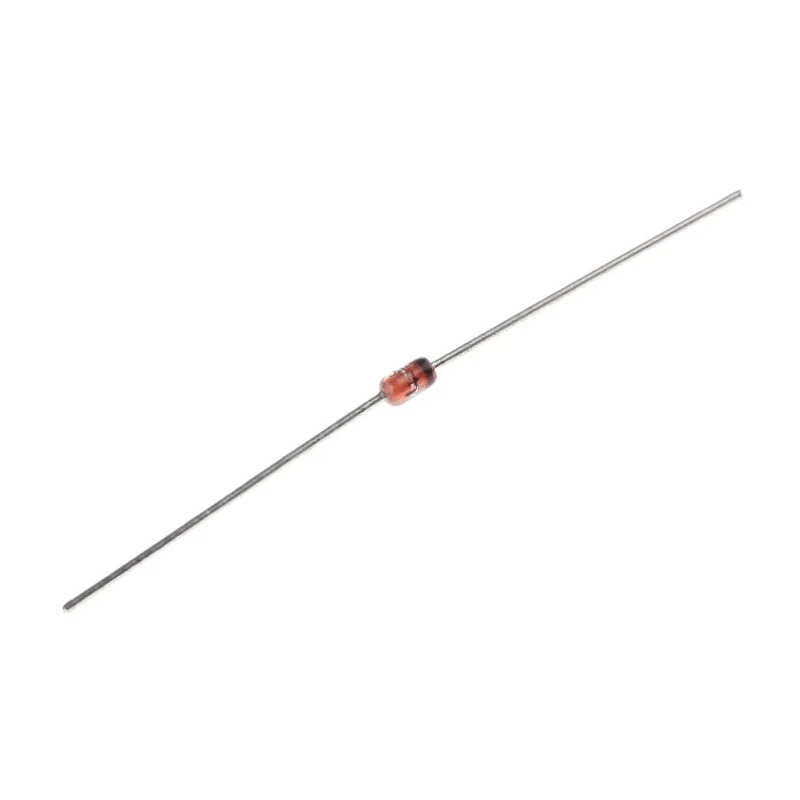

onsemi 1.15 V Zener Diode Single 1 W 5% Tolerance Through Hole 2-Pin DO-41 BZX85C15

onsemi BZX85C15 is a high-quality single 1 W Zener diode designed for voltage regulation with a nominal Zener voltage of 15 V and a tolerance of ±5%. Packaged in a DO-41 through hole 2-pin axial package, this diode offers reliable protection and precise voltage stabilization for electronic circuits and power semiconductor applications.

The device features a maximum power dissipation of 1 watt and is tested at a current of 15 mA, providing stable operation within defined parameters. Its maximum Zener impedance is 15 ohms, and the maximum reverse leakage current is only 500 nA, ensuring efficiency and low leakage under reverse bias conditions.

The BZX85C15 diode operates effectively within a wide temperature range from -65°C to 200°C, making it suitable for harsh industrial and commercial environments. The sealed glass construction of the DO-41 package offers excellent environmental protection across various applications including power regulation, voltage reference, and surge suppression.

Features of the BZX85 series include an ESD rating of Class 3 and double slug construction which enhances performance stability and resilience. The device’s simple 2-pin pin count and through hole mounting facilitate easy integration into printed circuit boards and other electronic assemblies.

This diode is typically used in industrial electronics, power supply design, manufacturing equipment, and other applications requiring consistent voltage regulation with minimal power loss. onsemi’s BZX85C15 ensures long service life and dependable operation in demanding electrical environments.

This Zener diode features a 15 mA test current and a maximum power dissipation of 1 watt. It is housed in a sealed glass axial leaded DO-41 package for reliable environmental protection. The device operates over a wide temperature range from -65°C to 200°C, suitable for industrial applications.

The maximum reverse leakage current is 500 nA, ensuring low leakage during operation. The maximum Zener impedance is 15 ohms which provides stable voltage regulation. It has a pin count of 2 and is designed for voltage regulation in electronic circuits.

The axial leaded DO-41 package simplifies through-hole mounting on PCBs. This diode series includes an ESD rating of Class 3 and double slug type construction for enhanced reliability. Explore more semiconductor components and specialized Zener Diodes within the Electronics & Electricals category at EnvMart.
