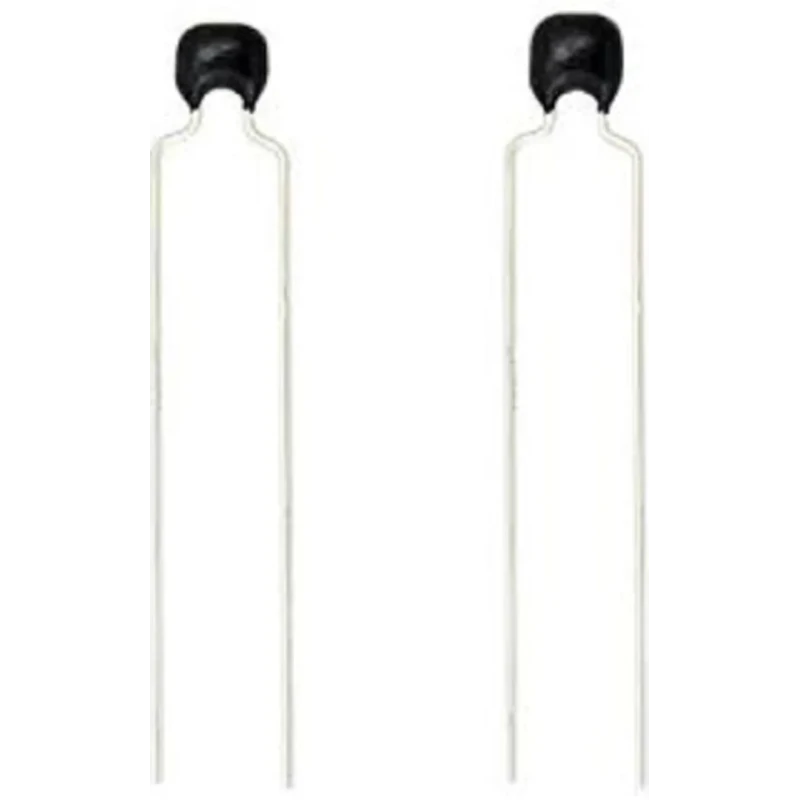

Vishay Multilayer Ceramic Capacitor 100pF 50V DC ±5% Through Hole C0G Radial K101J15C0GF53H5G
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V dc |
| Brand | Vishay |
| Height | 3.8mm |
| Model | K101J15C0GF53H5G |
| Packaging | Bulk |
| Width | 3.8mm |
| Mount Type | Through Hole |
| Series | K.G |
| Termination Type | Radial |
| Maximum Operating Temperature | 160°C |
| Tolerance | ±5 % |
| Capacitance | 100pF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS, UL, EN, EIA, IEC |
| Lead Diameter | 0.5mm |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Lead Spacing | 5mm |
| Seated Plane Height | 2.6mm |
Key Features
- High-reliability multilayer ceramic construction for stable performance.
- Capacitance value of 100pF with tight ±5% tolerance.
- Rated for up to 50V DC operating voltage.
- Through hole radial lead mounting for easy PCB assembly.
- C0G dielectric material provides minimal temperature and voltage coefficient.
- Compliant with AEC-Q200 automotive standards for quality and reliability.
- Wide operating temperature range from -55°C to +160°C.
- RoHS, UL, EN, EIA, IEC approved for assured compliance.
Product Description
The Vishay K101J15C0GF53H5G is a precision multilayer ceramic capacitor designed for high reliability circuits in automotive, industrial, and demanding electronics. Combining advanced C0G dielectric with robust through hole radial construction, this component ensures stable capacitance and minimal electrical drift over a wide range of applications.
Featuring a nominal capacitance of 100pF with tight ±5% tolerance, the K101J15C0GF53H5G supports up to 50V DC and withstands harsh operating conditions, including a broad temperature span from -55°C to +160°C. Its AEC-Q200 automotive compliance makes it suitable for mission-critical automotive modules, industrial control units, communication devices, and high-frequency signal filtering applications.
High reliability MLCC with Vishay's K.G series quality and screening. Through hole radial mounting and lead spacing of 5mm simplifies PCB installation. C0G dielectric provides exceptional stability of capacitance across voltage and temperature.
Suitable for both commercial and automotive designs, including harsh-duty environments. Bulk packaging and RoHS, UL, EN, EIA, IEC compliance for manufacturing convenience. Meets automotive standard AEC-Q200 and supports ELV directive conformity.
Mechanical details include a seated plane height of 2.6 mm, overall body height and width of 3.8 mm, and robust 0.5 mm lead diameter, optimizing durability and handling during assembly. Its radial leaded design ensures excellent thermal cycling resistance and mechanical strength, enhancing operational life in vibration-prone environments.
Typical use cases cover industrial automation, automotive ECUs, medical devices, power supplies, precision oscillators, telecommunications, and laboratory instrumentation. The K101J15C0GF53H5G also finds application in circuit decoupling, signal bypassing, and RF filtering where precision, reliability, and temperature stability are paramount.
Explore the extensive Vishay range of Multilayer Ceramic Capacitors and other precision passive electronic components on EnvMart to elevate your next industrial or electronics engineering project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 100pF with a tolerance of ±5%.
It is rated for a maximum operating voltage of 50V DC.
This unit operates within a temperature range of -55°C to +160°C.
The capacitor utilizes a C0G dielectric material, which provides minimal temperature and voltage coefficient.
The overall body height and width are both 3.8 mm, with a seated plane height of 2.6 mm and a lead diameter of 0.5 mm.
The lead spacing for this capacitor is 5 mm, which facilitates easy PCB installation.
Yes, it complies with the AEC-Q200 automotive standard for quality and reliability.
This model is packaged in bulk for manufacturing convenience.
It is compliant with RoHS, UL, EN, EIA, and IEC standards.
The termination type is radial, designed for through hole mounting.
This capacitor belongs to the K.G series by Vishay.
It is suitable for automotive ECUs, industrial control units, communication devices, and high-frequency signal filtering applications.
