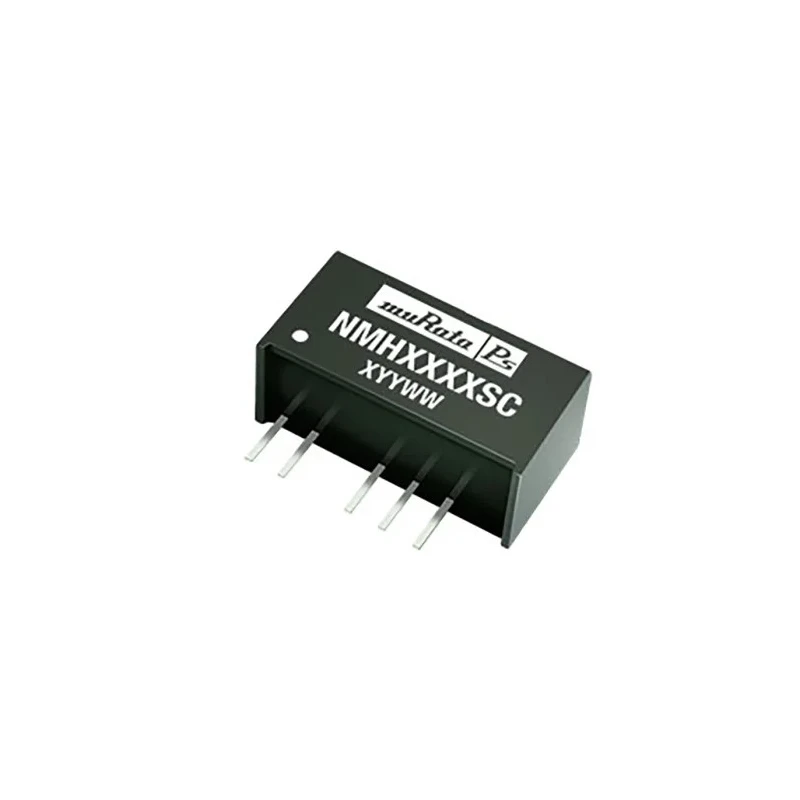

Murata Power Solutions DC/DC Converter SIP7 Package 2W Dual Output Through Hole 4.5-5.5V Input 9V Output NMH0509SC
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions NMH DC/DC Converter, 9V dc/ |
| Brand | Murata Power Solutions |
| Efficiency | 81% |
| Length | 19.5mm |
| Model | NMH0509SC |
| Depth | 10mm |
| Gross Weight | 2.76g |
| Width | 10mm |
| Mount Type | Through Hole |
| Series | NMH |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 663000h |
| Number of outputs | 2 |
| Ripple and Noise | 200mV Pk-Pk |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 4.5V |
| Number of Pins | 7 |
| Output Voltage 1 | 9V dc |
| Output Current 1 | 111mA |
| Output Voltage Adjustment Range | 4.5/5.5 V |
| Isolation Voltage | 1kV dc |
| Output Voltage 2 | -9V dc |
Key Features
- High efficiency of 81% enables low power loss operation.
- Dual unregulated isolated outputs suitable for compact power supply designs.
- 1kV dc isolation enhances safety and circuit protection.

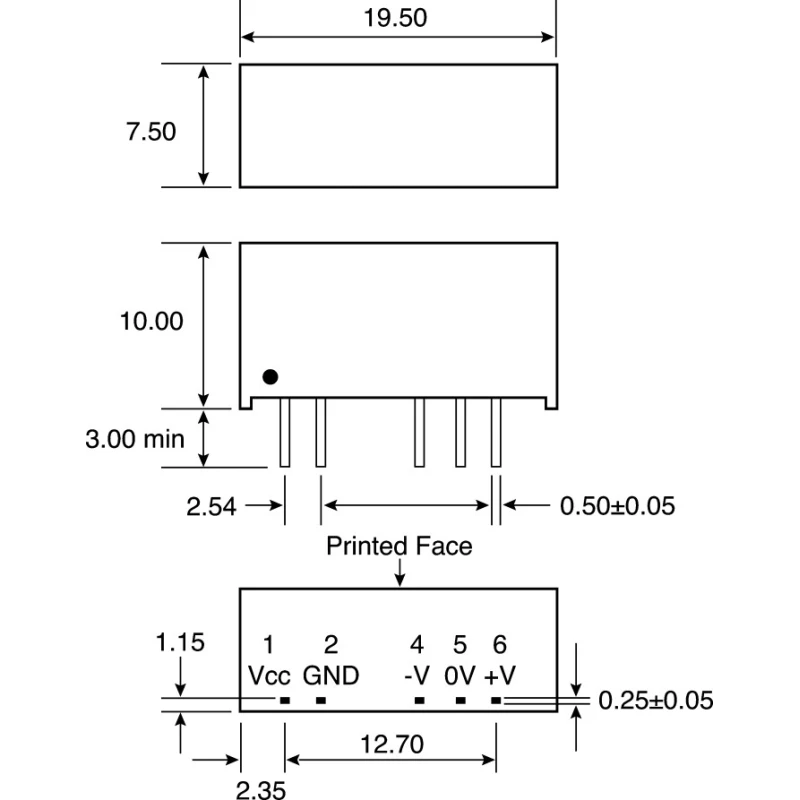

- Compact dimensions of 19.5mm length, 10mm width, and 10mm depth.
- Operating temperature range from -40°C to +85°C for industrial environments.
- RoHS compliant and UL 94V-0 package material for environmental safety.
- No external components required for simplified circuit integration.
- Constructed with internal SMD components in a SIP7 plastic package.
Product Description
Murata Power Solutions NMH0509SC is a high-efficiency 2W dual output DC/DC converter designed for isolated power supply applications. Operating from a 4.5 to 5.5V dc input range, it provides regulated 9V dc and -9V dc outputs in a through-hole SIP7 package with a compact footprint (19.5mm x 10mm x 10mm).
This converter features a 1kV dc isolation voltage ensuring safety and interference immunity in industrial, laboratory, and commercial electronic equipment. Built with internal surface mount device components, the package meets UL 94V-0 flame retardant standards and is RoHS compliant, supporting environmentally conscious designs.
The device operates reliably over a wide temperature range (-40°C to +85°C), making it suitable for demanding industrial, telecommunications, instrumentation, and embedded system power applications. With a typical efficiency of 81% and low output ripple (200mV peak-to-peak), it supports energy-efficient and noise-sensitive circuits without external components.
The NMH series includes a robust MTBF of 663,000 hours under MIL-HDBK-217F standards, ensuring dependable long-term operation. This module supports automatic insertions with through-hole mounting and a narrow 7-pin SIP format for easy PCB integration.
High efficiency of 81% for reduced heat generation. Dual unregulated isolated 9V and -9V outputs for versatile power supply needs. 1kV isolation voltage enhances safety and noise immunity. Compact SIP7 package with through-hole mounting for compatibility.
Wide operating temperature range (-40°C to +85°C) for industrial applications. RoHS compliant and UL 94V-0 certified package material. No external components necessary, simplifying circuit design. MTBF of 663,000 hours for long-term reliability.
Output ripple and noise of 200mV peak-to-peak suitable for sensitive devices.
This DC/DC Converter is ideal for industrial power supplies, telecommunications equipment, instrumentation, embedded systems, and other applications requiring compact, isolated dual outputs. Explore more power solutions and electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within an input voltage range of 4.5V to 5.5V dc.
It provides dual unregulated outputs of 9V dc and -9V dc.
The maximum output power of this converter is 2W.
It has a typical efficiency of 81%, enabling low power loss operation.
The NMH0509SC features an isolation voltage of 1kV dc, enhancing safety and interference immunity.
This unit operates reliably over a temperature range of -40°C to +85°C.
The compact dimensions of this model are 19.5mm in length, 10mm in width, and 10mm in depth.
It uses through-hole mounting in a SIP7 package for easy PCB integration.
The output ripple and noise is specified at 200mV peak-to-peak.
This model is RoHS compliant and meets UL 94V-0 flame retardant standards.
The MTBF for this unit is rated at 663,000 hours under MIL-HDBK-217F standards.
No external components are required, simplifying circuit integration.
