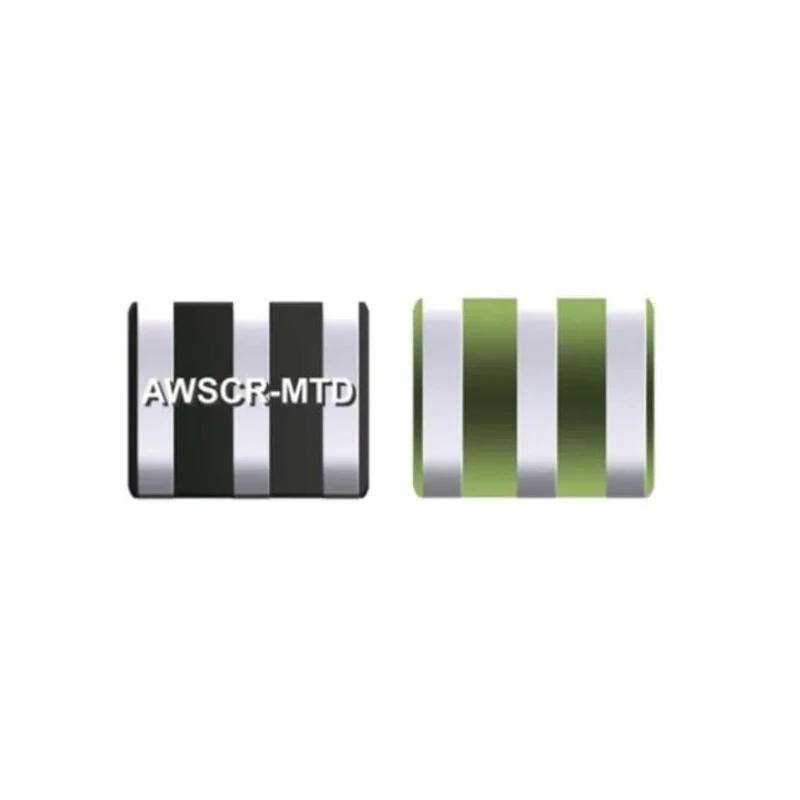

Abracon Ceramic Resonator 20 MHz, 15 pF, 3-Pin Surface Mount AWSCR-20.00MTD-T

Abracon AWSCR-20.00MTD-T is a ceramic resonator designed for industrial and electronic applications requiring reliable timing control. Operating at a resonance frequency of 20 MHz, this device features built-in load capacitance of 15 pF, supporting stable oscillation in circuit designs.

Its surface mount configuration with 3 pins allows for easy PCB integration, making it ideal for compact electronics such as microprocessor clocks, remote controls, mobile phones, and DVD/CD-ROM devices. The resonator offers a frequency tolerance of ±5% and frequency stability from -0.3% to 0.3%, ensuring consistent performance.

Measuring just 4.7 mm in length, 4.1 mm in width, and 1.2 mm in height, the AWSCR-20.00MTD-T is optimized for space-sensitive applications. Operating reliably from -55°C up to 125°C, it is suitable for environments with demanding temperature requirements.

Operates at a resonance frequency of 20 MHz. Built-in load capacitance of 15 pF for stable circuit operation. 3-pin surface mount design simplifies PCB layout and assembly. Frequency tolerance of ±5% and stability from -0.3% to 0.3%.

Compact size: 4.7 mm x 4.1 mm x 1.2 mm (Length x Width x Height). Temperature range: -55°C to 125°C supports industrial environments. RoHS, ISO 9001, QS 9000 certified for quality assurance. Not designed for automotive standard applications.

The ceramic resonator is packaged in tape & reel format for efficient production and is IR reflow capable, streamlining automated assembly. It serves well in consumer electronics, industrial components, and commercial products where precise timing is essential.
