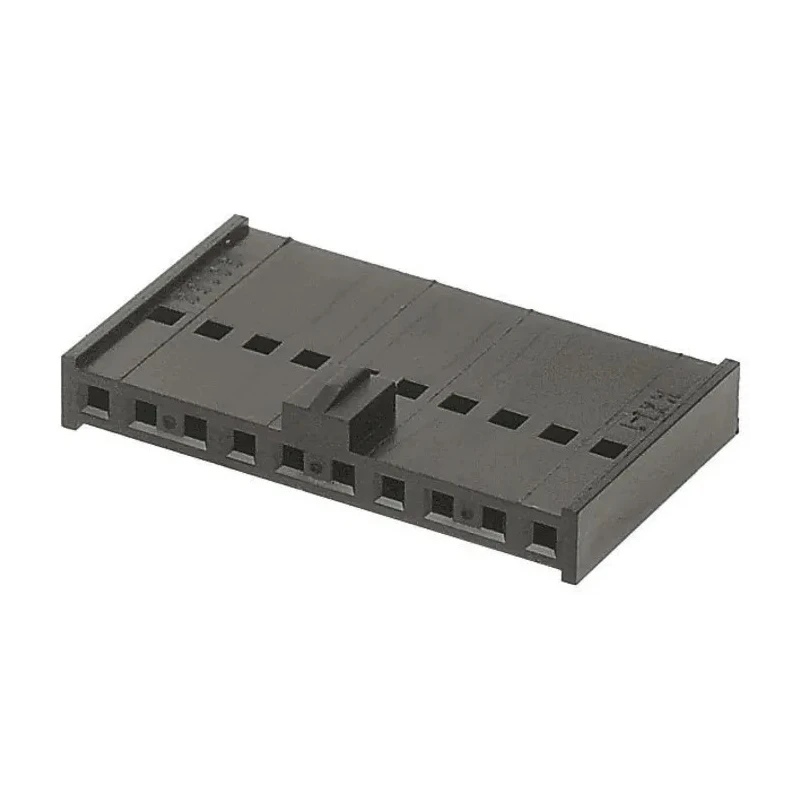

Molex C-Grid III Female Connector Housing 25 Way 2.54 mm Pitch 1 Row Straight 90156-0165
Specifications
| Country of Origin | Ireland |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 64.56mm |
| Width | 5.35mm |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | C-Grid III |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | C-Grid III Connector |
| Number of Contacts | 25 |
| Connector Gender | Female |
Key Features
- Features a 2.54 mm pitch for precise connectivity.
- Includes 25 contacts arranged in a single row.
- Black PBTC housing material ensures durability.
- Straight orientation suitable for cable mounting applications.
- Part of the versatile C-Grid III connector series.
- Interchangeable housing styles with uniform locking system.
- Ideal for commercial and consumer electronic applications.
- Manufactured in Ireland ensuring quality and reliability.
Product Description
The Molex 90156-0165 is a female connector housing designed as part of the C-Grid III interconnection system. It features a 2.54 mm pitch and supports 25 contacts in a single row with a straight cable mount orientation. Made of durable PBTC material, this housing is black in color and provides reliable wire-to-board connectivity.
This connector housing offers modular design flexibility with uniform locking mechanisms compatible across the C-Grid III series, enabling secure and stable connections. It is suitable for a broad range of electronic applications including commercial and consumer electronics, providing a robust solution for PCB wiring needs.
Key technical details include a compact length of 64.56 mm and width of 5.35 mm, enhancing its adaptability within tight assembly spaces. The housing is manufactured in Ireland, maintaining high-quality standards with no specific certifications listed.
Industry sectors that benefit from this connector housing include industrial automation, telecommunications, consumer electronics manufacturing, and other electronic component assembly processes requiring reliable connectors.
Features a 2.54 mm pitch for precise connectivity. Includes 25 contacts arranged in a single row. Black PBTC housing material ensures durability. Straight orientation suitable for cable mounting applications. Part of the versatile C-Grid III connector series.
Interchangeable housing styles with uniform locking system. Ideal for commercial and consumer electronic applications. Manufactured in Ireland ensuring quality and reliability.
This Molex female connector housing 90156-0165 is a reliable choice for engineers and manufacturers seeking dependable wire housings for their PCB connector assemblies. Explore more Connector Housings and related components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, which allows for precise connectivity.
This housing supports 25 contacts arranged in a single row.
The Molex C-Grid III female connector housing features a straight orientation, suitable for cable mounting applications.
The housing has a length of 64.56 mm and a width of 5.35 mm, making it compact for tight assembly spaces.
It is made from durable PBTC material, which ensures reliable wire-to-board connectivity.
This model is part of the C-Grid III connector series, known for its modular design flexibility.
Yes, it is suitable for a broad range of electronic applications, including both commercial and consumer electronics.
This connector housing is manufactured in Ireland, ensuring quality and reliability.
It supports cable mounting, making it versatile for various applications.
The connector gender of this housing is female, designed for use with C-Grid III connectors.
Yes, it features interchangeable housing styles with a uniform locking system compatible across the C-Grid III series.
This housing is beneficial for industries such as industrial automation, telecommunications, and consumer electronics manufacturing.
