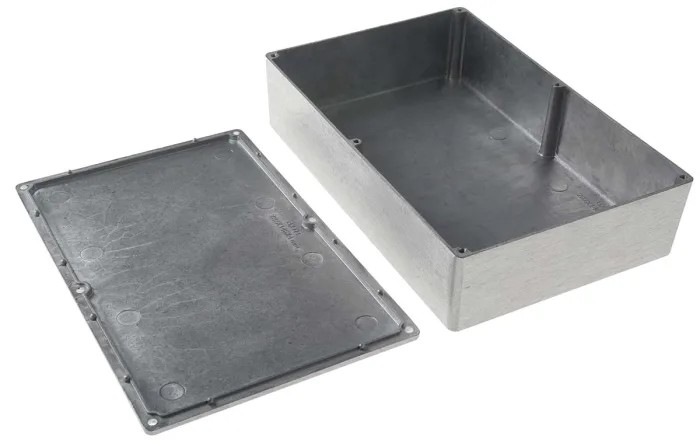

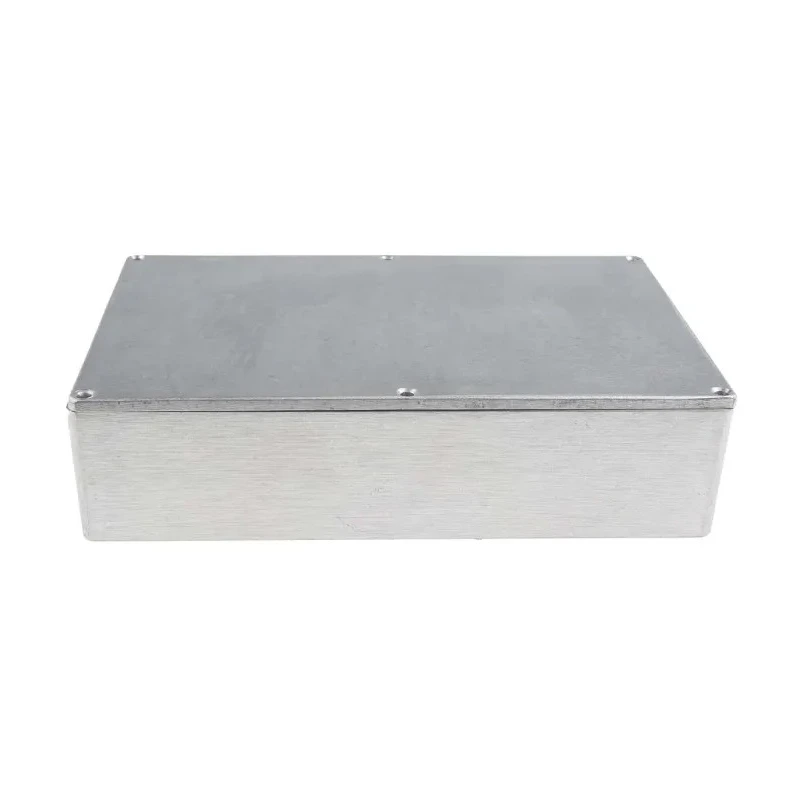

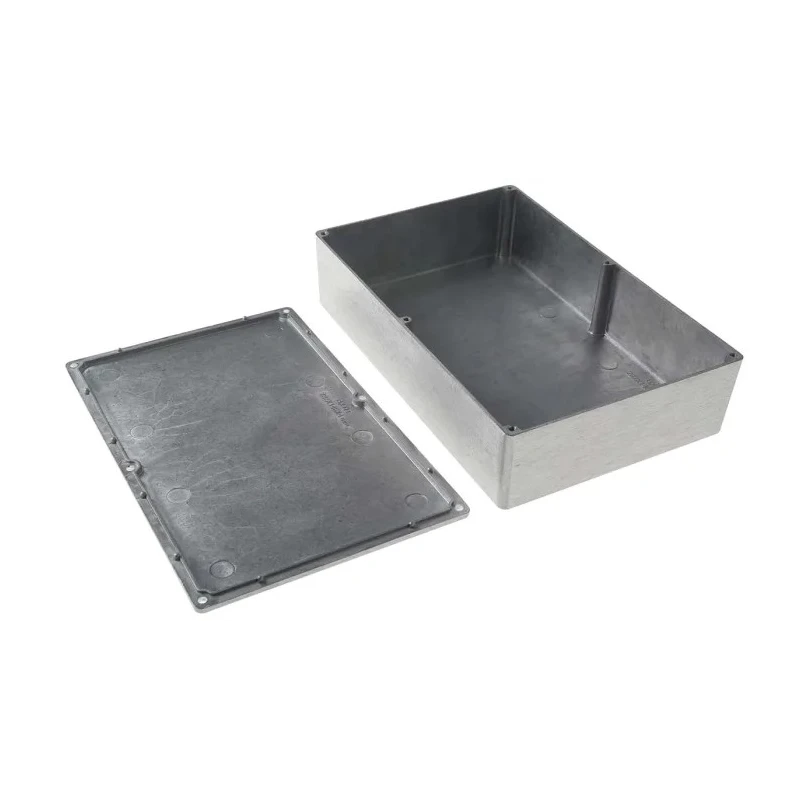

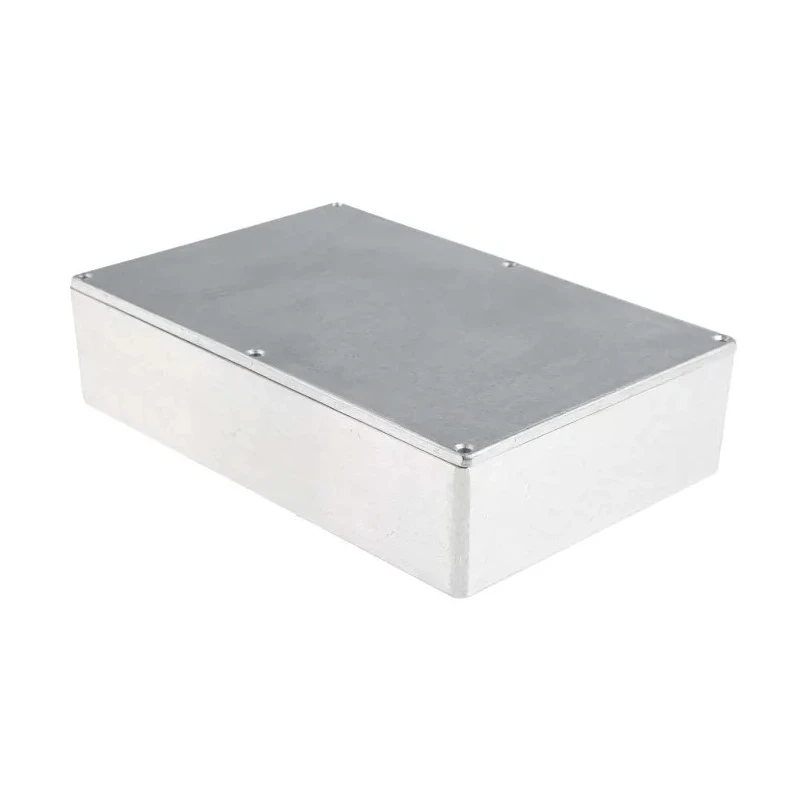

RS PRO Silver Silver Lid Die Cast Aluminium Enclosure, IP66, 55.9 mm x 222.1 mm x 145.9 mm IP66
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display | Screen |
| Brand | RS PRO |
| Body Material | Die Cast Aluminium |
| Model | IP66 |
| IP Rating | IP66 |
| External Width | 145.9mm |
| External Height | 55.9mm |
| Shielding | Shielded |
| Standards/Approvals | RoHS |
| External Length | 222.1mm |
| Lid Colour | Silver |
| Gasket Material | Neoprene |
Key Features
- Constructed from durable die cast aluminium alloy ADC 12 for excellent strength.
- Silver lid designed with a 3 mm thickness and neoprene seal for environmental protection.
- Provides shielding better than 40dB at 10MHz and 76dB at 100 kHz.
- Resistant to temperatures up to 250°C without compromising structural integrity.
- M3.5 x 9 mm stainless steel Supadrive countersunk screws secure the lid accurately.
- Equipped with PCB and vertical mounting guides inside the enclosure.
- No external coating; natural aluminium finish suitable for powder painting if needed.
- Included IP66 self-adhesive neoprene seal ensures tight, dust and moisture proof enclosure.
Product Description
RS PRO IP66 Die Cast Aluminium Enclosure with Silver Lid, measuring 55.9 mm height, 222.1 mm length, and 145.9 mm width, is engineered to provide exceptional shielding and protection for sensitive electronic components. Made from high-quality ADC 12 aluminium alloy, the enclosure boasts robust construction capable of withstanding temperatures up to 250°C without degradation. The natural aluminium finish maintains durability while allowing customization through powder coating.
The enclosure’s shielded design includes a lipped lid, providing EMI/RFI screening with suppression levels exceeding 40dB at 10MHz and 76dB at 100 kHz. The lid’s 3 mm thickness incorporates a neoprene gasket seal rated for temperature ranges of -20°C to +80°C, ensuring excellent environmental protection and IP66 certification that guarantees resistance to dust ingress and powerful water jets.
Assembly is facilitated by M3.5 x 9 mm Supadrive countersunk stainless steel screws, installed outside the inner enclosure space, and the lid-to-base taper of 1.5° per side offers a tight and secure fit. Internal guides allow for flexible PCB and vertical mounting options to accommodate diverse industrial setups.
This enclosure is ideal for industrial, laboratory, manufacturing, and commercial sectors where shielding against electromagnetic interference and protection against hazardous environments is critical. The absence of external coatings makes it suitable for tailor-made surface finishes, enhancing integration into various applications.
Constructed from ADC 12 die cast aluminium alloy offering high mechanical strength. Shielded for EMI/RFI protection with superior screening performance. IP66 rated seal with self-adhesive neoprene gasket ensuring dust and moisture resistance.
Natural aluminium finish supports powder paint applications for custom colors. M3.5 x 9 mm Supadrive stainless steel screws secure the lid externally. Capable of enduring temperatures up to 250°C maintaining structural reliability.
Internal PCB and vertical mounting guides for versatile installation. Designed for use in industrial, commercial, and laboratory environments. Explore the full range of RS PRO quality enclosures and accessories at EnvMart for your project needs.
Explore more products in our Electrical Enclosure category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The external dimensions of the enclosure are 55.9 mm in height, 222.1 mm in length, and 145.9 mm in width.
It is constructed from die cast aluminium alloy ADC 12, which provides excellent strength and durability.
This enclosure has an IP66 rating, ensuring it is resistant to dust ingress and powerful water jets.
It can withstand temperatures up to 250°C without compromising its structural integrity.
The enclosure provides EMI/RFI shielding with suppression levels exceeding 40dB at 10MHz and 76dB at 100 kHz.
The lid is secured with M3.5 x 9 mm stainless steel Supadrive countersunk screws.
Yes, it includes a self-adhesive neoprene gasket that ensures a tight seal for dust and moisture resistance.
The enclosure is equipped with internal guides that allow for flexible PCB and vertical mounting options.
The enclosure has a natural aluminium finish, which is suitable for powder coating if customization is needed.
It complies with RoHS standards, ensuring it meets environmental regulations.
The country of origin for this enclosure is Taiwan.
This model is designed for use in industrial, commercial, and laboratory environments where protection against electromagnetic interference is critical.
