Molex KK 254 Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-03-2021

Free Delivery in India | Lowest Global Shipping Charges

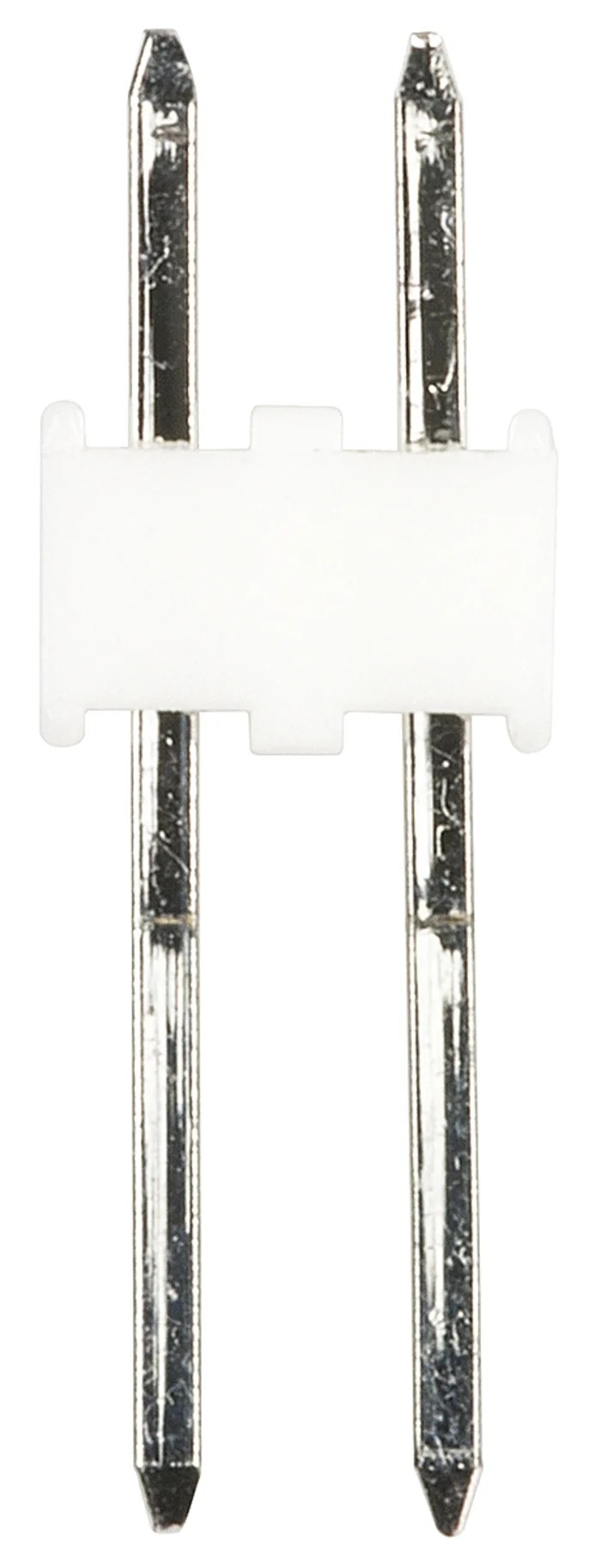

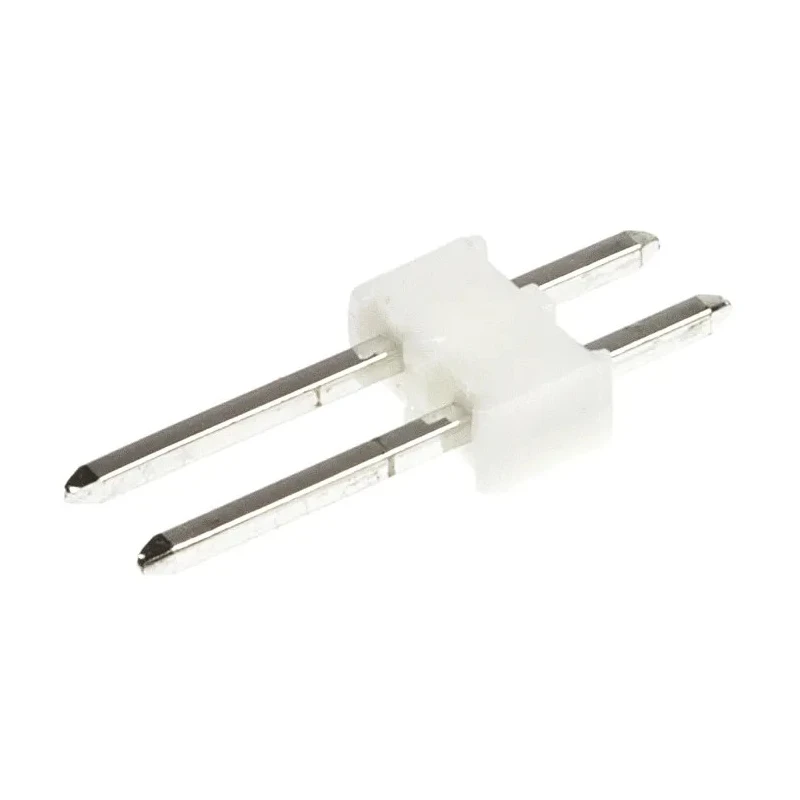

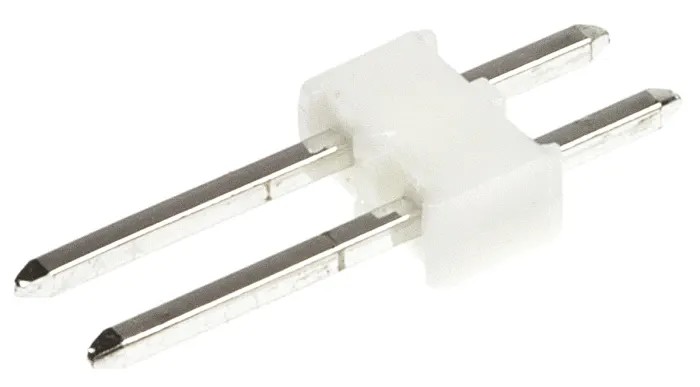

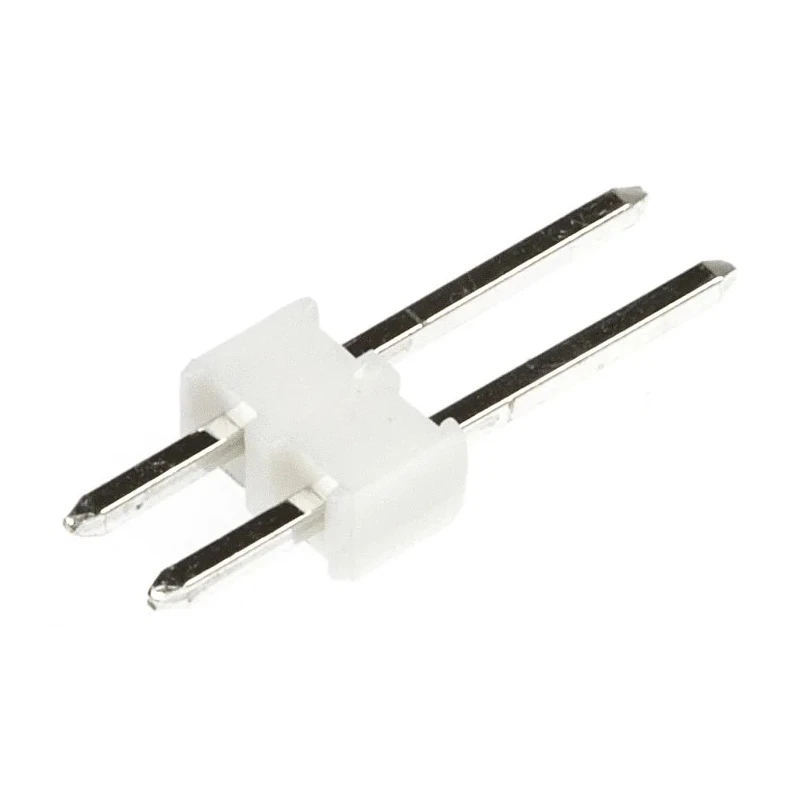

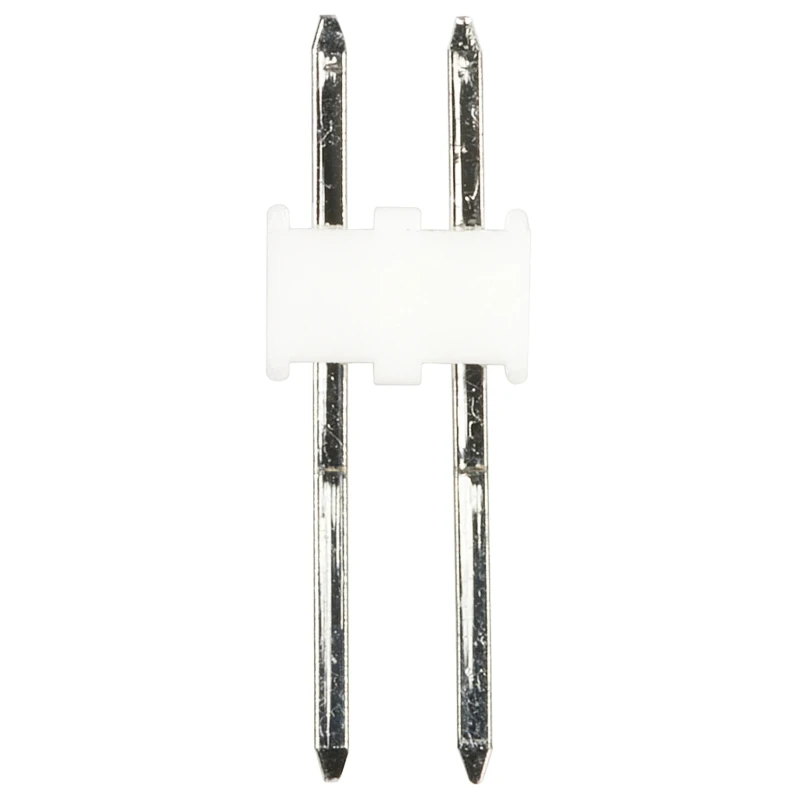

Molex KK 254 Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-03-2021

Name: Molex KK 254 Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 22-03-2021
Brand: Molex
SKU: 138063



Category PCB Connectors & Wire Housings Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Molex
Orientation	Straight
Current	4A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	KK 254
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Tail Pin Length	3.43mm
Mating Pin Length	2.54mm

Key Features

Constructed with brass contacts plated in tin for reliable conductivity.
Made from durable nylon housing material, ensuring mechanical strength.
Operates within a temperature range of -40°C to 105°C.
Supports a voltage rating of 250V and a current rating of 4A.
Designed as a straight, unshrouded through-hole mount suitable for board-to-board and wire-to-board connections.
Features a male contact gender with 3.43 mm tail pin length and 2.54 mm mating pin length.
Ideal for electronic assemblies requiring secure, reliable PCB interconnections.

Product Description

Molex 22-03-2021 KK 254 Series Straight Through Hole Pin Header is a high-quality electronic component designed for PCB connections with 2 contacts in a single row, featuring a 2.54 mm pitch. Its straight, unshrouded form factor facilitates effective mounting through PCB holes, ensuring robust mechanical and electrical performance.

The header uses brass contact material with tin plating to guarantee excellent conductivity and corrosion resistance. The housing is made from nylon, offering durability and insulation. It operates reliably within temperatures ranging from -40°C to 105°C, with a voltage rating of 250V and current capacity of 4A, suitable for diverse industrial and commercial electronic applications.

This pin header supports board-to-board and wire-to-board connector systems and is solder-terminated to secure in place. The male contact gender with specified tail and mating pin lengths enables precise mating and reliable electrical contact in circuit assemblies.

Molex KK 254 connectors offer industry-standard specifications for use in electronics manufacturing, assembly, repair, and prototyping across sectors such as industrial controls, telecommunications, computing, and consumer electronics.

Constructed with brass contacts plated in tin for reliable conductivity. Durable nylon housing with excellent insulating properties. Suitable for operating temperatures from -40°C to 105°C. Rated for 250V and 4A current capacity.

Straight, unshrouded through-hole pin header design. Male contact gender with 3.43 mm tail pin length and 2.54 mm mating pin length. Supports board-to-board and wire-to-board connector systems.

Choose the Molex 22-03-2021 KK 254 Series pin header for reliable and precise PCB connections in your electronic assemblies. Explore a broad range of PCB connectors and electronic components at EnvMart to complement your industrial and laboratory applications.
