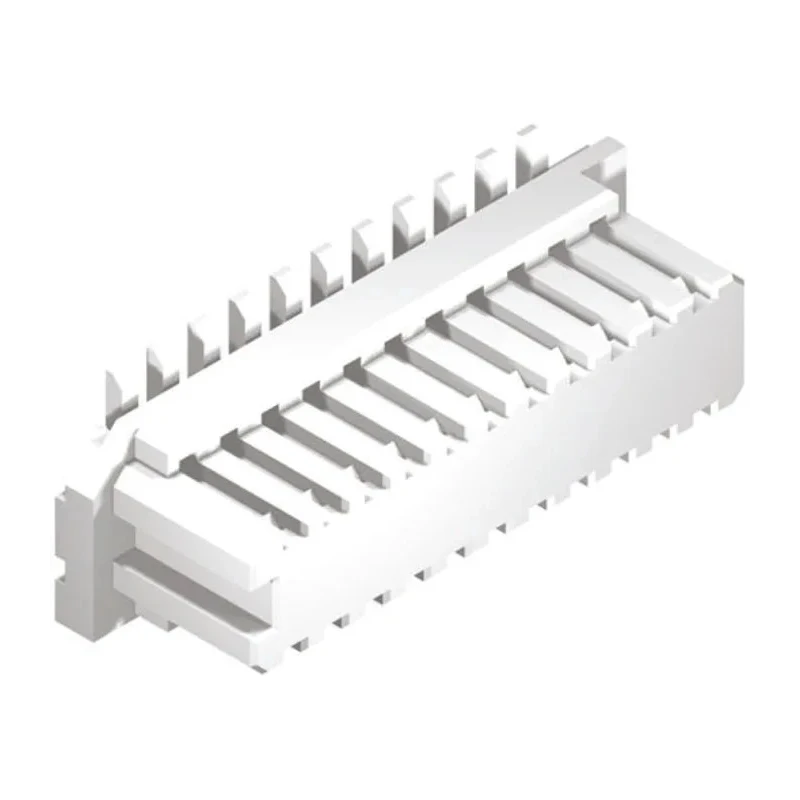

Molex 52465 Series Straight Surface PCB Socket, 40-Contact, 2 Row, 0.8 mm Pitch Solder 52465-4071

Molex 52465-4071 is a high-quality Straight Surface PCB Socket designed for board-to-board connections in electronics assemblies. It features 40 female contacts arranged in two rows with a compact 0.8 mm pitch solder termination system, suitable for precise and reliable signal interfacing.

This connector is constructed with a thermoplastic housing delivering mechanical stability and resistance to environmental influences. The contacts are made of bronze with tin plating to ensure conductivity and durability over time. Its surface mount configuration and straight orientation make it ideal for automated PCB assembly processes, improving production efficiency.

The 52465 series PCB sockets operate at a voltage rating of 50V and support a 500mA current, catering well to low voltage and signal applications. The robust temperature rating from -40°C to 105°C allows deployment in various industrial and commercial electronics environments, including communication devices, control systems, and instrumentation.

The row pitch is 2.2 mm, accommodating standard PCB layouts with high density and signal integrity. This model does not come with additional certifications or approvals but complies with standard Molex series design requirements.

Its precise board-to-board compatibility, reliable mechanical and electrical properties make the 52465-4071 model a dependable choice for industrial, manufacturing, and laboratory applications demanding consistent connectivity and assembly quality.

Supports a current rating of 500mA for reliable signal transmission. Constructed with thermoplastic housing material ensuring durability. Contacts are made from bronze with tin plating for corrosion resistance. Operates within a temperature range of -40°C to 105°C for versatile use.

Connector orientation is straight with surface mount installation type. Voltage rating is 50V making it suitable for low voltage applications. The row pitch measures 2.2 mm accommodating precise PCB layouts. Designed as a female contact gender type in the 52465 series.

No additional standards or approvals are specified for this model.
