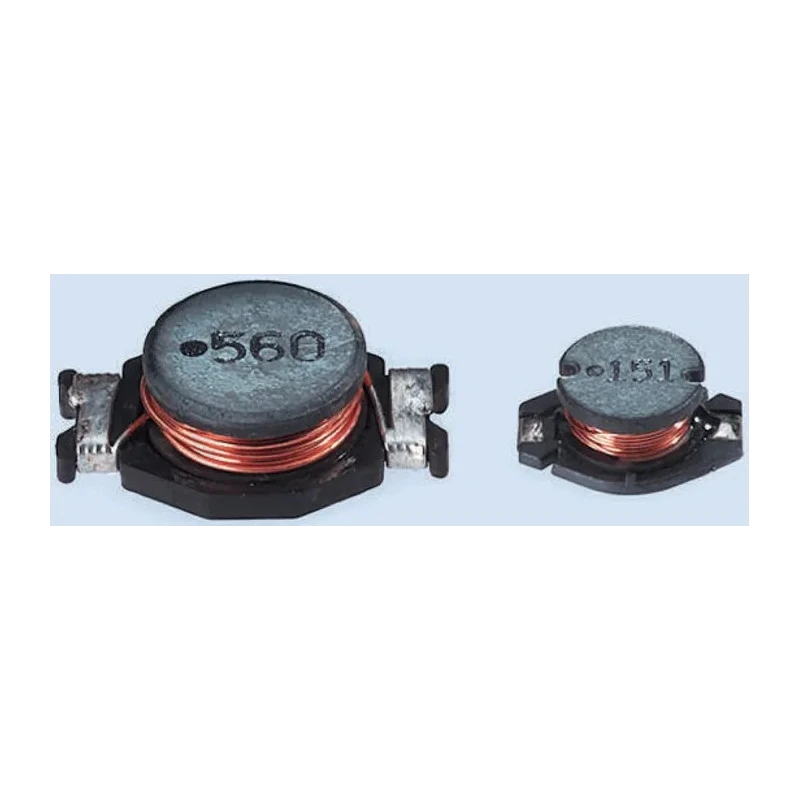

Wurth Elektronik Wirewound Surface Mount Inductor, Ferrite Core, 10 μH ±20 % 1.2 A IDC 7445510
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.92mm |
| Length | 6.6mm |
| Model | 7445510 |
| Depth | 4.45mm |
| Packaging | Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS LF |
| Maximum DC Current | 1.2A |
| Maximum DC Resistance | 160mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 35MHz |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact surface mount design suitable for high-efficiency SMPSUs.
- Ferrite core ensures low loss performance.
- Inductance tolerance rated at ±20 % for reliable operation.
- Maximum DC resistance is 160 mΩ to minimize power loss.
- Operates effectively within -40°C to 100°C temperature range.
- Maximum self-resonant frequency of 35 MHz supports high-frequency applications.
- Compliance to RoHS LF standards ensures environmental safety.
- Packaging supplied on reel for efficient automated placement.
Product Description
Wurth Elektronik 7445510 is a Wirewound Surface Mount Inductor featuring a ferrite core, designed to deliver 10 μH inductance with ±20 % tolerance and handle a maximum DC current of 1.2 A. This compact component has a length of 6.6 mm, height of 2.92 mm, and depth of 4.45 mm, making it suitable for space-constrained electronic circuits.
The inductor is optimized for high-efficiency Switched-Mode Power Supplies (SMPSUs) and interference suppression, operating reliably in environments ranging from -40°C to 100°C. Its maximum DC resistance of 160 mΩ helps reduce power losses during operation, while a maximum self-resonant frequency of 35 MHz allows use in high-frequency circuits.
This model is compliant with RoHS LF environmental standards and meets the automotive quality standard AEC-Q200, ensuring robust performance in automotive and industrial applications. The device is surface mount terminated and supplied on a reel to facilitate automated PCB assembly processes.
Featuring a low loss ferrite core, the Wurth Elektronik WE-PD4 series supports current ratings up to 15 A and frequencies up to 10 MHz, making this particular 7445510 model ideal for efficient power inductance and EMI suppression tasks in demanding electronic systems.
Compact surface mount wirewound inductor with ferrite core. 10 μH inductance with ±20 % tolerance. Supports 1.2 A maximum DC current. Low loss with 160 mΩ maximum DC resistance. Operates from -40°C to 100°C ambient temperature.
Meets automotive AEC-Q200 standard for reliability. RoHS LF compliant for environmental safety. Maximum self-resonant frequency of 35 MHz. Surface mount termination for automated PCB assembly. Supplied on reel packaging.
Ideal for industrial, automotive, and power electronics applications requiring precise inductance and reliable performance. Explore more Surface Mount Inductors and electronic components for your design needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 10 μH with a tolerance of ±20%.
It can handle a maximum DC current of 1.2 A.
The maximum DC resistance is rated at 160 mΩ, which helps minimize power loss during operation.
It operates effectively in a temperature range from -40°C to 100°C.
The maximum self-resonant frequency is 35 MHz, making it suitable for high-frequency applications.
The core material is ferrite, which ensures low loss performance.
It is supplied on a reel, which facilitates efficient automated placement during PCB assembly.
This model meets the automotive quality standard AEC-Q200, ensuring reliability in automotive applications.
Yes, it is compliant with RoHS LF standards, ensuring environmental safety.
The dimensions are 6.6 mm in length, 2.92 mm in height, and 4.45 mm in depth.
It features a surface mount termination style, suitable for automated assembly processes.
It is ideal for industrial, automotive, and power electronics applications requiring precise inductance and reliable performance.
