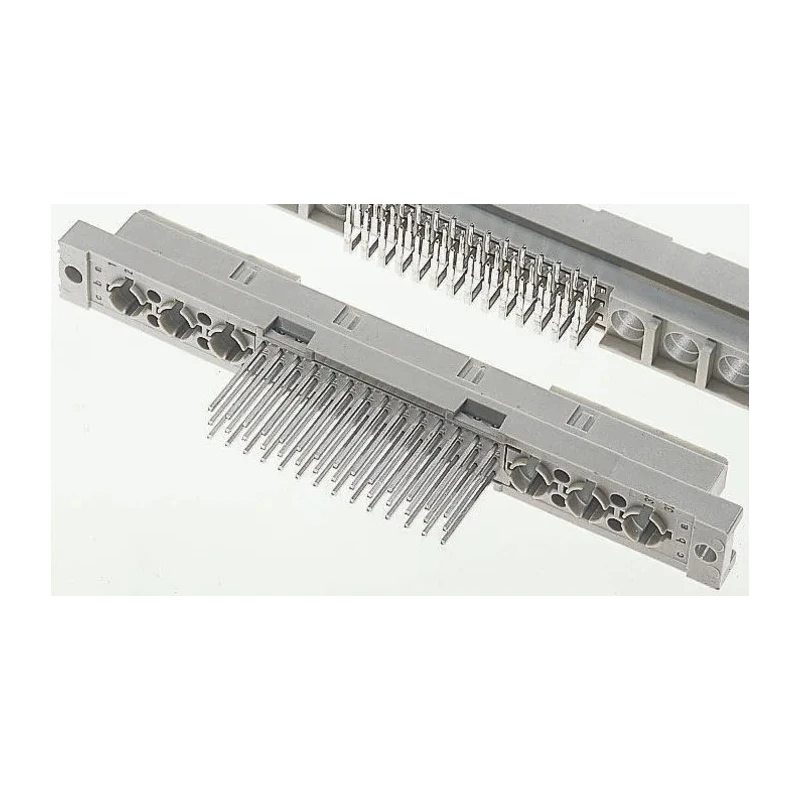

ERNI DIN 41612 48 Way 2.54 mm Pitch Type C/2 Solder Class C2 3 Row Female Straight Connector 354.108 / 354108-E

Free Delivery in India | Lowest Global Shipping Charges

ERNI DIN 41612 48 Way 2.54 mm Pitch Type C/2 Solder Class C2 3 Row Female Straight Connector 354.108 / 354108-E

Name: ERNI DIN 41612 48 Way 2.54 mm Pitch Type C/2 Solder Class C2 3 Row Female Straight Connector 354.108 / 354108-E
Brand: ERNI
SKU: 124420
Price: 18.55 USD
Availability: InStock



Category DIN 41612 Connector Brand ERNI Condition New

Specifications

Country of Origin	Germany
Brand	ERNI
Orientation	Straight
Current	2A
Model	354.108 / 354108-E
Approvals	UL, VG, CSA, CECC 75101-801
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	DIN 41612
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	C/2
Minimum Operating Temperature	-55°C
Number of Rows	3
Pitch	2.54mm
Contacts	the special contacts MADE from beryllium copper can be used without aids in the cavities provided
Contact Plating	Gold
Number of Contacts	48
Contact Gender	Female
Connector Gender	Female
Maximum Contact Resistance	20mΩ
Row Loading	A/B/C

Key Features

Features a 3-row female straight connector configuration.
Constructed with gold-plated copper alloy contacts for enhanced conductivity.
Operates reliably from -55°C to 125°C for diverse environments.
Specifically designed for industrial and telecommunication applications.
Housing made from durable Polybutylene Terephthalate material.
Complies with DIN 41612 Series and IEC 60603-2 standards.
Includes special beryllium copper contacts suitable for hybrid signal and power connections.
Connector coding prevents incorrect mating to protect sensitive electronics.

Product Description

ERNI 354.108 / 354108-E DIN 41612 Connector is a 48-way, 3-row, female straight connector with a 2.54 mm pitch, ideal for industrial, telecommunication, and data technology uses. Designed with solder termination and classified under Class C2, it ensures robust electrical connections and reliable performance in demanding environments.

This connector uses gold-plated copper alloy contacts which provide excellent electrical conductivity and corrosion resistance. The housing is made of Polybutylene Terephthalate, offering mechanical strength and thermal stability within the operating range of -55°C to 125°C.

The connector allows for coding, preventing incorrect plugging and protecting sensitive electronic components from potential damage due to overload. Special beryllium copper contacts are incorporated in the cavities to cater to hybrid signal and power requirements, supporting signals up to 4A and high current contacts up to 40A for expanded application flexibility.

The product complies with DIN 41612 standards, IEC 60603-2 quality class 2 (Draft), and approvals including UL, VG, CSA, and CECC 75101-801. Its effective design suits backplane and rack connector scenarios, streamlining assembly and maintenance.

Features a 3-row female straight connector with 48 contacts and 2.54 mm pitch. Gold-plated copper alloy contacts ensure optimal conductivity and durability. Operating temperature range from -55°C to 125°C for versatile deployment.

Durable Polybutylene Terephthalate housing for mechanical and thermal resilience. Coding available to prevent incorrect connector mating and damage. Hybrid contacts capable of handling signals and high currents. Conforms to DIN 41612 Series and IEC 60603-2 standards with multiple safety approvals.

Manufactured in Germany ensuring premium quality and reliability.

This ERNI DIN 41612 connector is suitable for various industrial, telecommunication, and electronic system integration tasks requiring dependable, high-density electrical connectors. Browse EnvMart for more DIN 41612 Connectors and related products to find the ideal solution for your technical requirements.
