Pepperl + Fuchs Threaded Barrel Ultrasonic Proximity Sensor M30 x 1.5 4000 mm 200mA NPN 30V UB4000-30GM-E4-V15
Specifications
| Country of Origin | India |
|---|---|
| Brand | Pepperl + Fuchs |
| Response time | 280ms |
| Length | 108mm |
| Model | UB4000-30GM-E4-V15 |
| IP Rating | IP65 |
| Width | 36mm |
| Housing Material | Nickel Plated Brass |
| Output type | NPN |
| Maximum Operating Temperature | 70°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Terminal type | Connector-V15 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Maximum Switching Frequency | 1.5Hz |
| Standards/Approvals | EN 60974-5-2 |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 4000mm |
| Switch, proximity, M30, ultrasonic, 6000mm, NPNBrand | Pepperl + Fuchs |
Key Features
- Offers a maximum supply voltage of 30V dc for reliable operation.
- Equipped with an NPN output type and a switching current of 200mA.
- Constructed with a nickel plated brass housing and rated IP65 for dust and water resistance.
- Features a rapid response time of 280ms and a maximum switching frequency of 1.5Hz.
- Operates efficiently between -25°C and 70°C temperature range.
- Includes a connector type terminal (Connector-V15) for secure wiring.
- Designed with synchronisation and deactivation functions to avoid signal interference.
- Compatible with M12 5-pin plug-in leads and easy programmable via onboard buttons.
Product Description

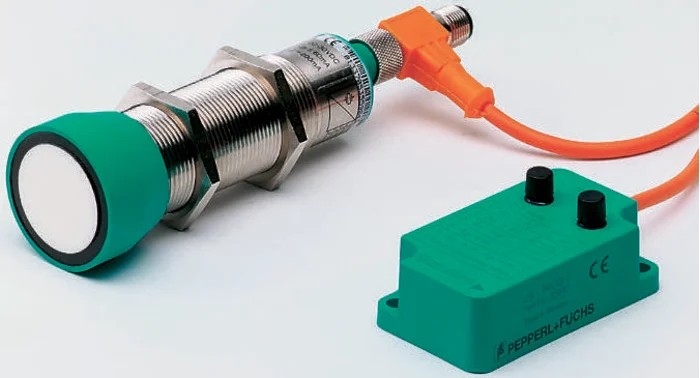

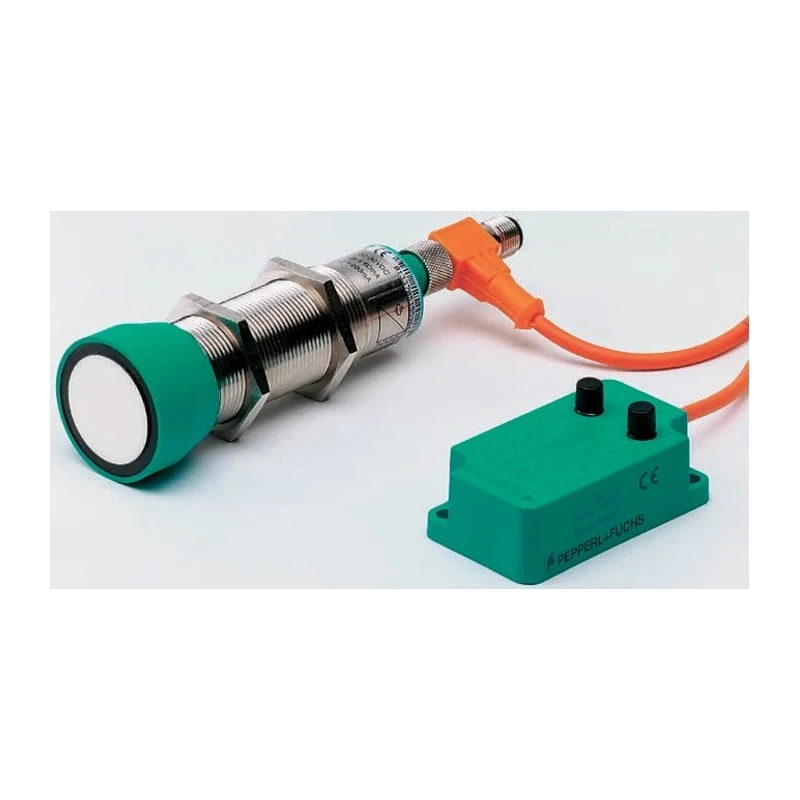

The Pepperl + Fuchs UB4000-30GM-E4-V15 is a high-precision Threaded Barrel Ultrasonic Proximity Sensor designed for industrial automation and control applications. Featuring a thread size of M30 x 1.5, it provides a maximum detection range of 4000 mm and supports a maximum supply voltage of 30V dc for optimal performance.
Its robust nickel plated brass housing offers durability and an IP65 rating for protection against dust and water ingress, making it suitable for harsh industrial environments. The sensor is equipped with an NPN output type and supports a switching current of up to 200mA, complemented by a fast response time of 280ms and a maximum switching frequency of 1.5Hz to ensure timely and accurate sensing.

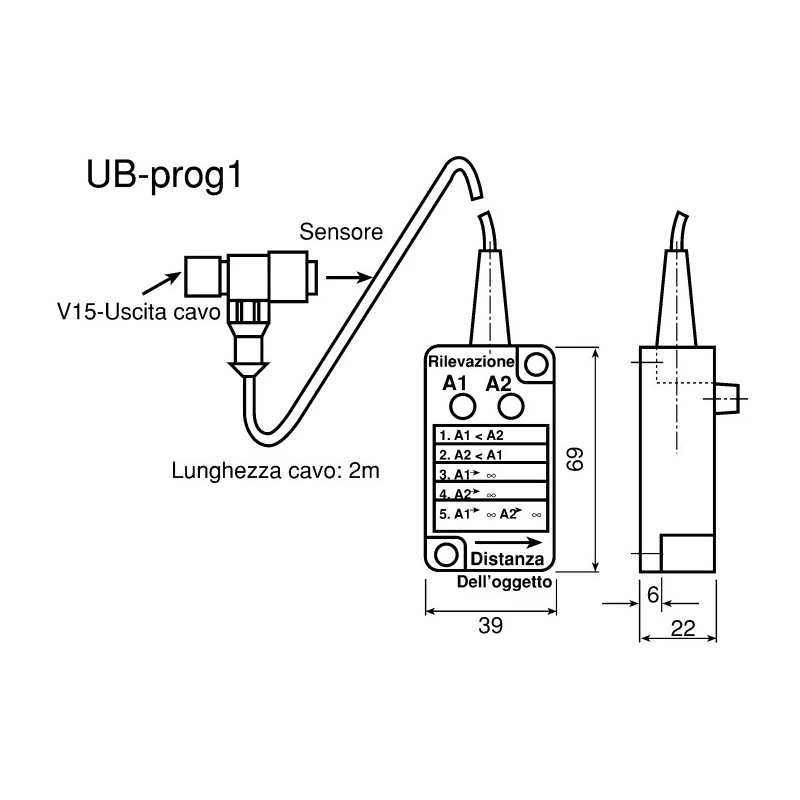

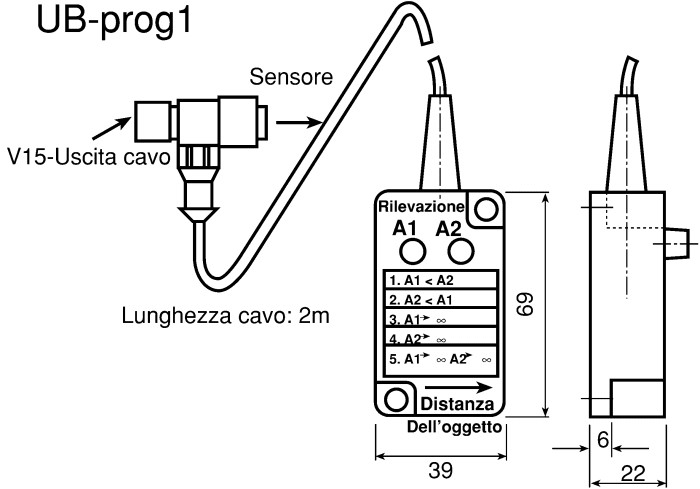

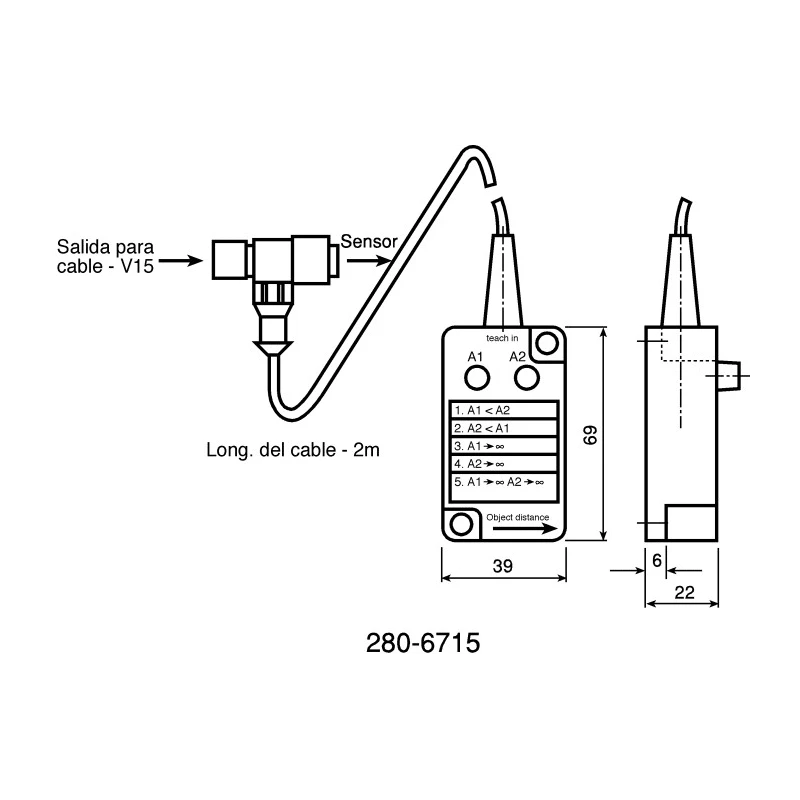

Designed to operate effectively within a temperature range of -25°C to 70°C, this sensor includes synchronization and deactivation features to prevent interference during simultaneous operation of multiple units. Programming is simplified through a built-in programmer with two buttons, allowing setting of output functions and switching distances without the need for additional cables.

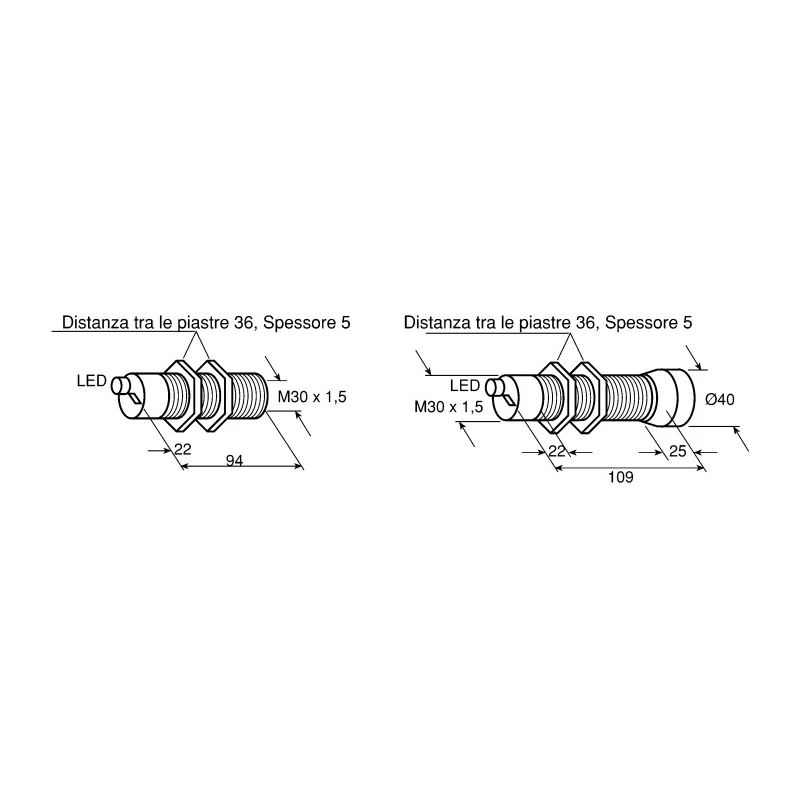

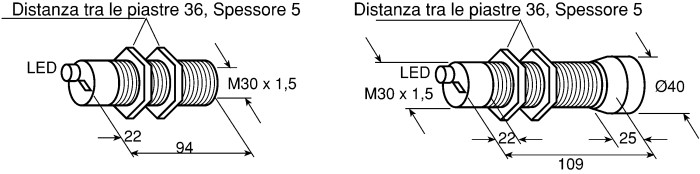

The UB4000-30GM-E4-V15 uses a Connector-V15 terminal type compatible with M12 5-pin plug-in cables, facilitating easy installation and maintenance. Its dimensions, 108mm in length and 36mm in width, provide a compact form factor for space-constrained setups.
Its versatile design makes it ideal for use in diverse industrial sectors such as manufacturing automation, HVAC systems, water treatment plants, and general industrial sensor applications. The sensor complies with standard EN 60974-5-2 ensuring quality and reliability.
Maximum supply voltage of 30V dc for efficient operation. Nickel plated brass housing with IP65 protection rating. NPN output with a switching current rating of 200mA. Response time of 280ms and maximum switching frequency of 1.5Hz.
Operating temperature range from -25°C to 70°C. Threaded barrel body style with M30 x 1.5 thread size. Connector-V15 terminal for secure electrical connections. Easy programming with built-in programmer and two-button operation.
Synchronization and deactivation features for interference-free sensing. Compact dimensions of 108mm length and 36mm width. Explore more Pepperl + Fuchs sensors and Ultrasonic Proximity Sensor products to meet your industrial automation needs here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4000 mm.
It has a response time of 280 ms.
This unit features an NPN output type.
The maximum switching current is 200 mA.
The dimensions are 108 mm in length and 36 mm in width.
It operates effectively within a temperature range of -25°C to 70°C.
The housing is made of nickel plated brass, providing durability and protection.
It has an IP65 rating, indicating protection against dust and water ingress.
Programming is simplified through a built-in programmer with two buttons for setting output functions and switching distances.

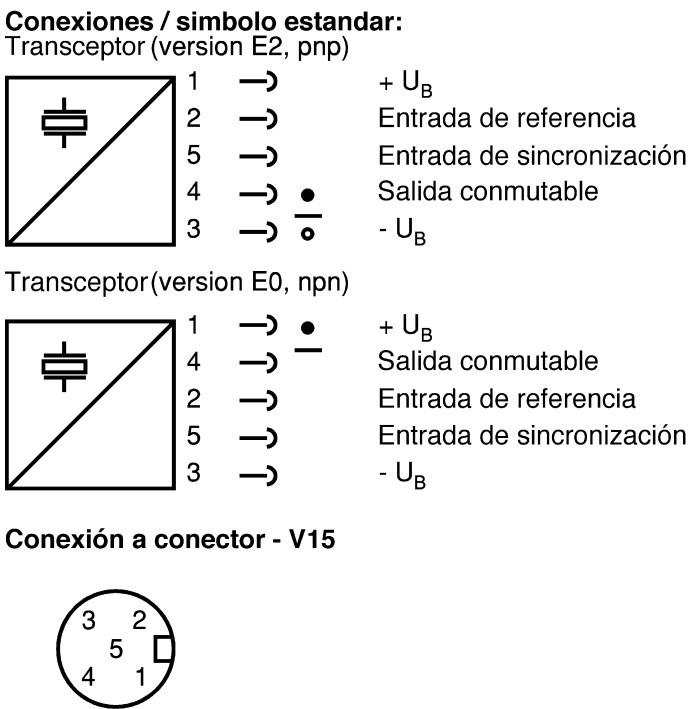

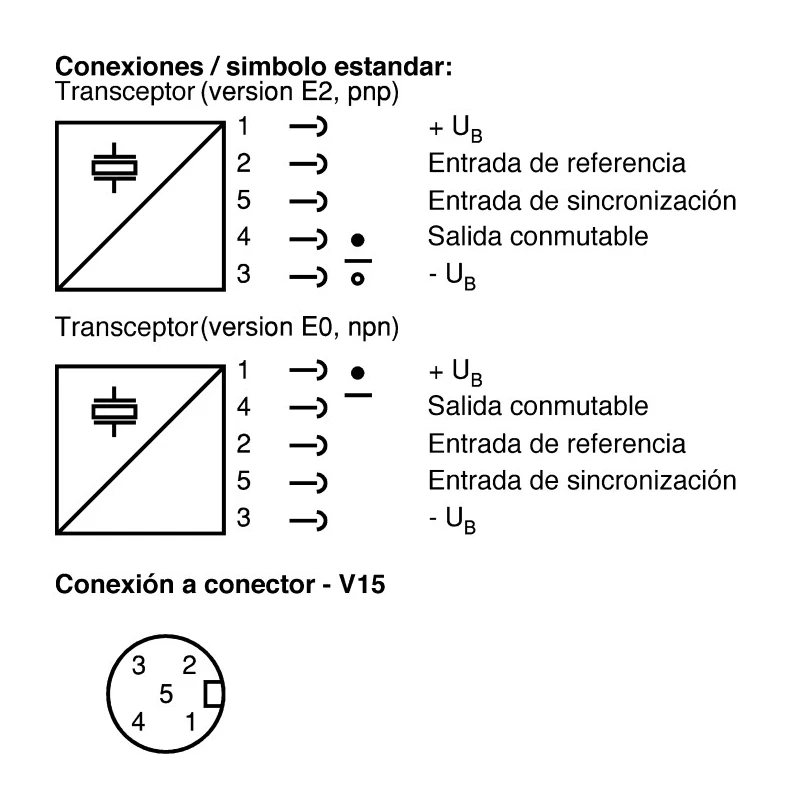

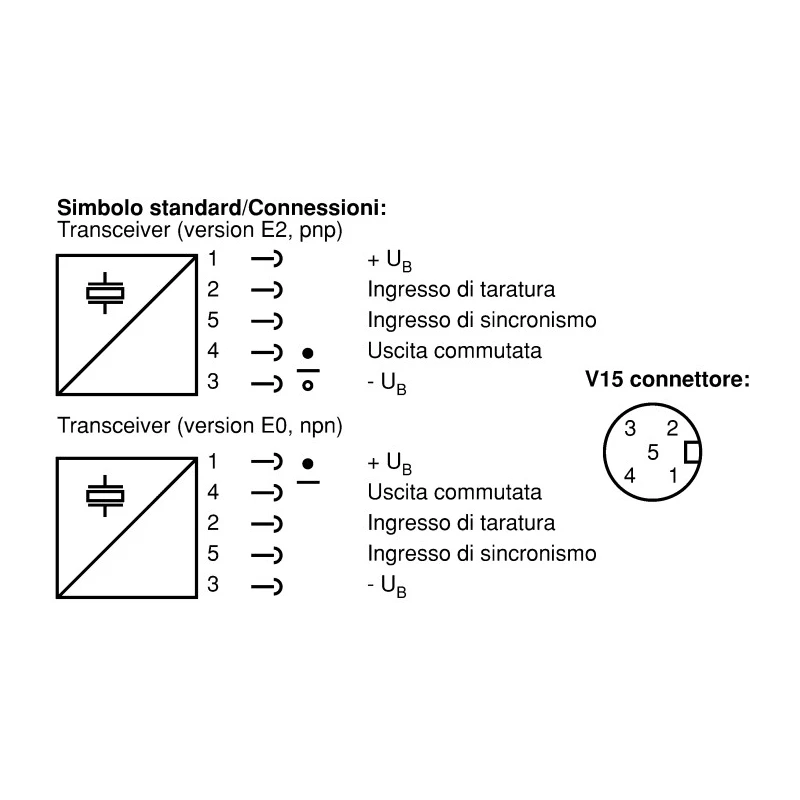

It includes a Connector-V15 terminal type, compatible with M12 5-pin plug-in cables.
The maximum supply voltage is 30V dc.
It complies with the standard EN 60974-5-2, ensuring quality and reliability.
