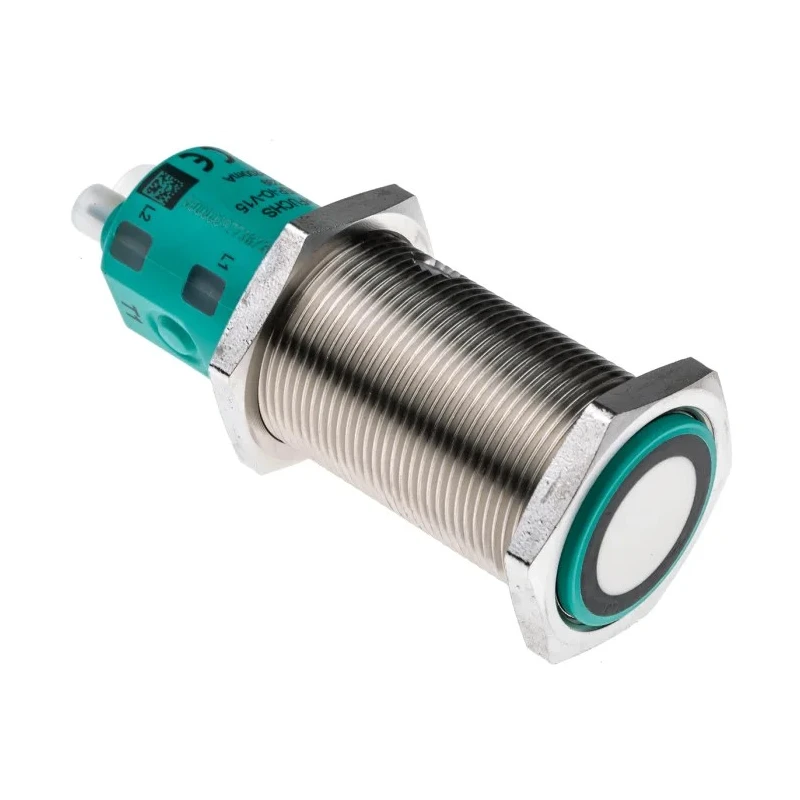

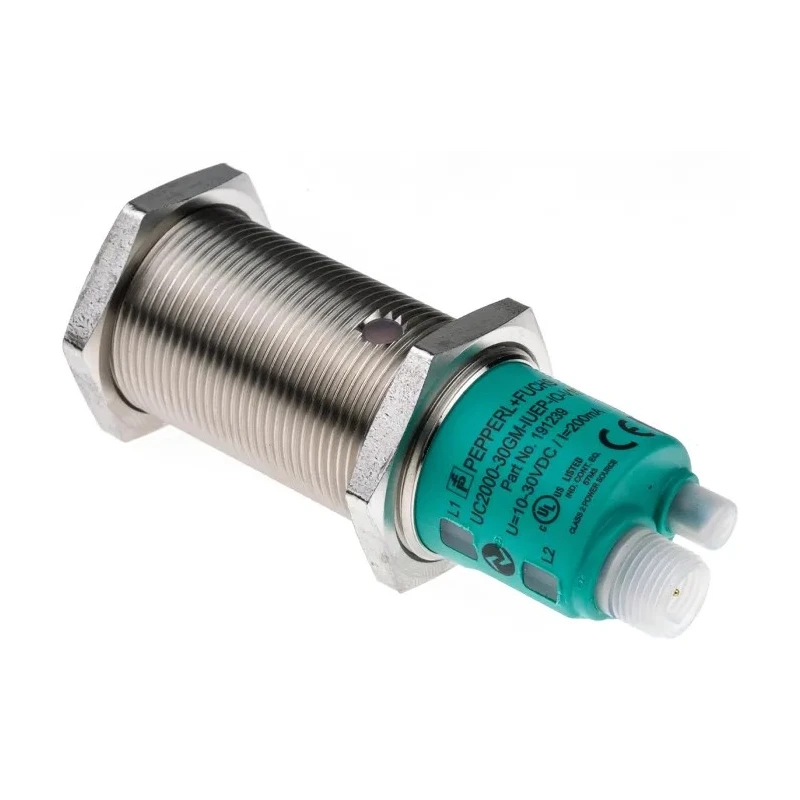

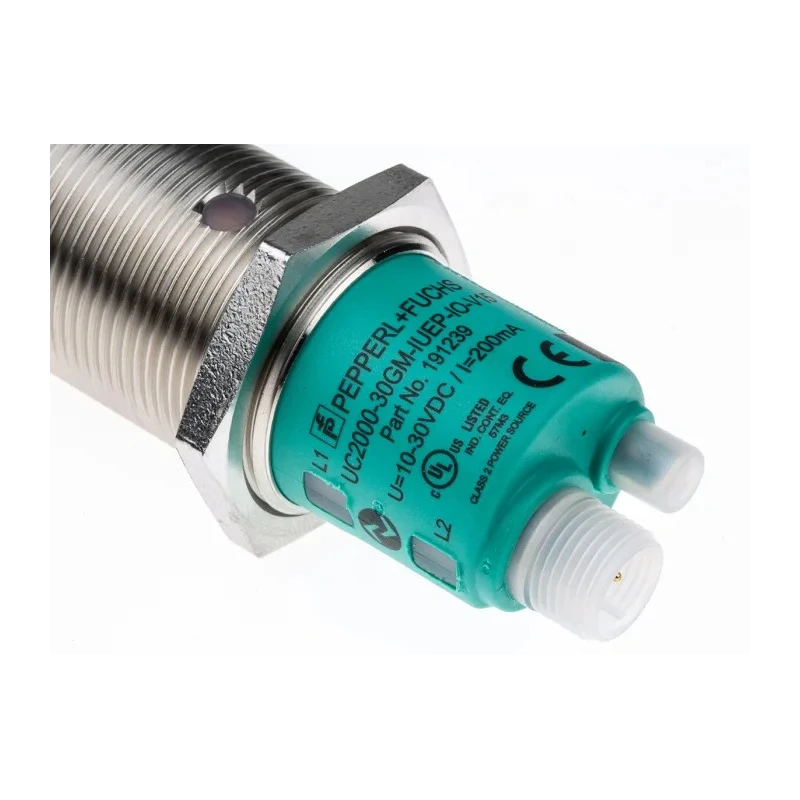

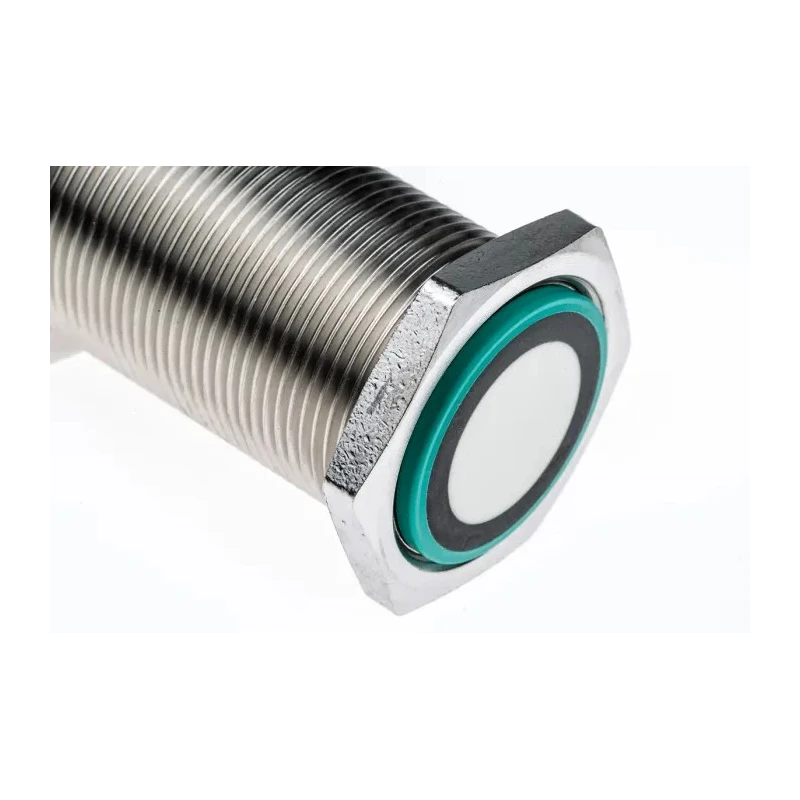

Pepperl + Fuchs Threaded Barrel Ultrasonic Proximity Sensor M30 x 1.5 2000 mm 200mA IO-Link 3V UC2000-30GM-IUEP-IO-V15
Specifications
| Country of Origin | Singapore |
|---|---|
| Brand | Pepperl + Fuchs |
| Response time | 125ms |
| Length | 81mm |
| Model | UC2000-30GM-IUEP-IO-V15 |
| IP Rating | IP67 |
| Width | 36mm |
| Housing Material | Stainless Steel, Polyamide, Thermoplastic Polyurethane |
| Output type | IO-Link |
| Maximum Operating Temperature | 70°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 200mA |
| Interface Type | IO-Link |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Maximum Switching Frequency | 4Hz |
| Standards/Approvals | CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, IO-Link |
| Maximum Supply Voltage | 3V |
| Maximum Detection | 2000mm |
Key Features
- Features a threaded barrel design with M30 x 1.5 thread size for secure mounting.
- Maximum detection range of 2000 mm with a response time of 125 ms.
- Interface utilizes IO-Link communication protocol for efficient data transmission.
- Constructed with stainless steel, polyamide, and thermoplastic polyurethane for durable housing.
- Rated IP67 for protection against dust and water ingress.
- Operates within a temperature range of -25°C to 70°C for versatility.
- Supports switching current of up to 200 mA and maximum switching frequency of 4 Hz.
- Equipped with CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, and IO-Link approvals.
Product Description
Pepperl + Fuchs UC2000-30GM-IUEP-IO-V15 Ultrasonic Proximity Sensor with threaded barrel design M30 x 1.5 offers reliable, accurate detection up to 2000 mm. Operating at 3V supply voltage with a durable stainless steel, polyamide, and TPU housing rated IP67, this sensor is suited for demanding industrial environments. It supports IO-Link interface for advanced connectivity and data handling, enabling integration in automated and control systems.
This sensor features adjustable acoustic power and sensitivity, hysteresis and window mode options, as well as synchronization capabilities. With a 125 ms response time and a maximum switching frequency of 4 Hz, it is designed for efficient operation in various manufacturing, automation, and HVAC applications. The device is protected against short circuit and overload, assuring robust performance and longevity.
Operating temperature range from -25°C to 70°C makes it adaptable for diverse environments. Its compact size (81 mm length, 36 mm width) allows easy installation even in restricted spaces. The sensor’s LED indicators facilitate quick diagnostics and setup, while the M12 5-pin plug-in lead type ensures secure connections. Pepperl + Fuchs UC2000-30GM-IUEP-IO-V15 is an ideal solution for precise detection of smooth solids, liquids, or powders within industrial, laboratory, and automated control gear systems.
Features a threaded barrel M30 x 1.5 for secure mounting. Durable housing materials including stainless steel and engineering plastics. IO-Link output interface for seamless communication. High IP67 ingress protection for dust and water resistance.
Wide operating temperature range from -25°C to 70°C. 2000 mm detection range for long-distance sensing. Short response time of 125 ms and 4 Hz maximum switching frequency. Supports switching current of 200 mA with overload protection.
Compact dimensions fit in tight installation spaces. Certified to relevant international standards for safety and quality. Explore a comprehensive range of Pepperl + Fuchs sensors and automation solutions available on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of the Pepperl + Fuchs UC2000-30GM-IUEP-IO-V15 is 2000 mm.
This model has a response time of 125 ms.
It operates at a maximum supply voltage of 3V.
The sensor is rated IP67, providing protection against dust and water ingress.
The housing is constructed from stainless steel, polyamide, and thermoplastic polyurethane.
It supports a maximum switching current of 200 mA.
The operating temperature range is from -25°C to 70°C.
This model utilizes an IO-Link interface for efficient data transmission.
The dimensions are 81 mm in length and 36 mm in width.
The maximum switching frequency is 4 Hz.
It is certified with CCC, cCSAus Listed, CE, cULus Listed, EN, IEC, and IO-Link approvals.
It features a threaded barrel design with an M30 x 1.5 thread size for secure mounting.
