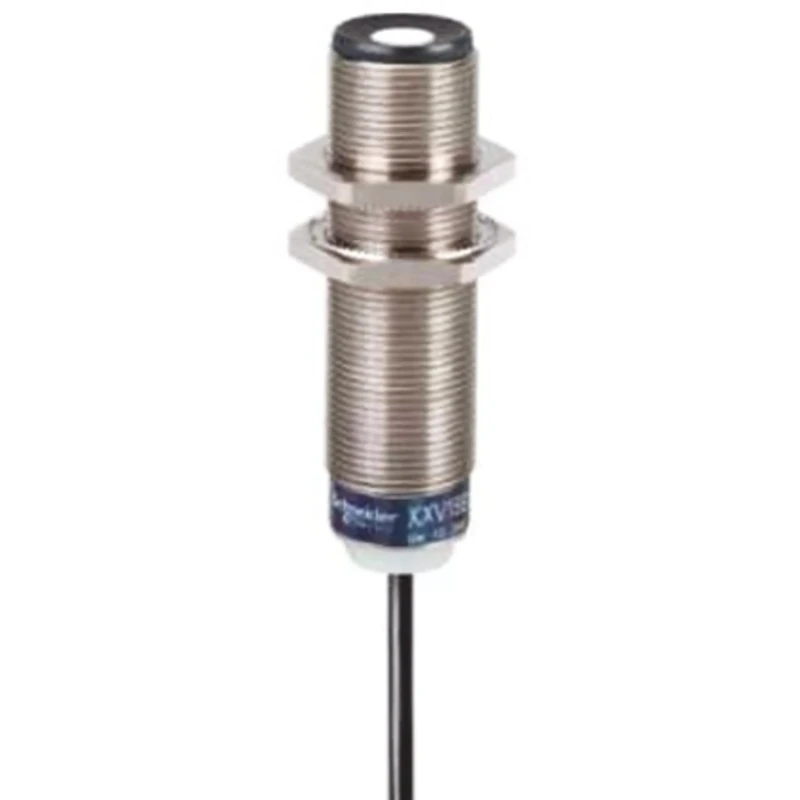

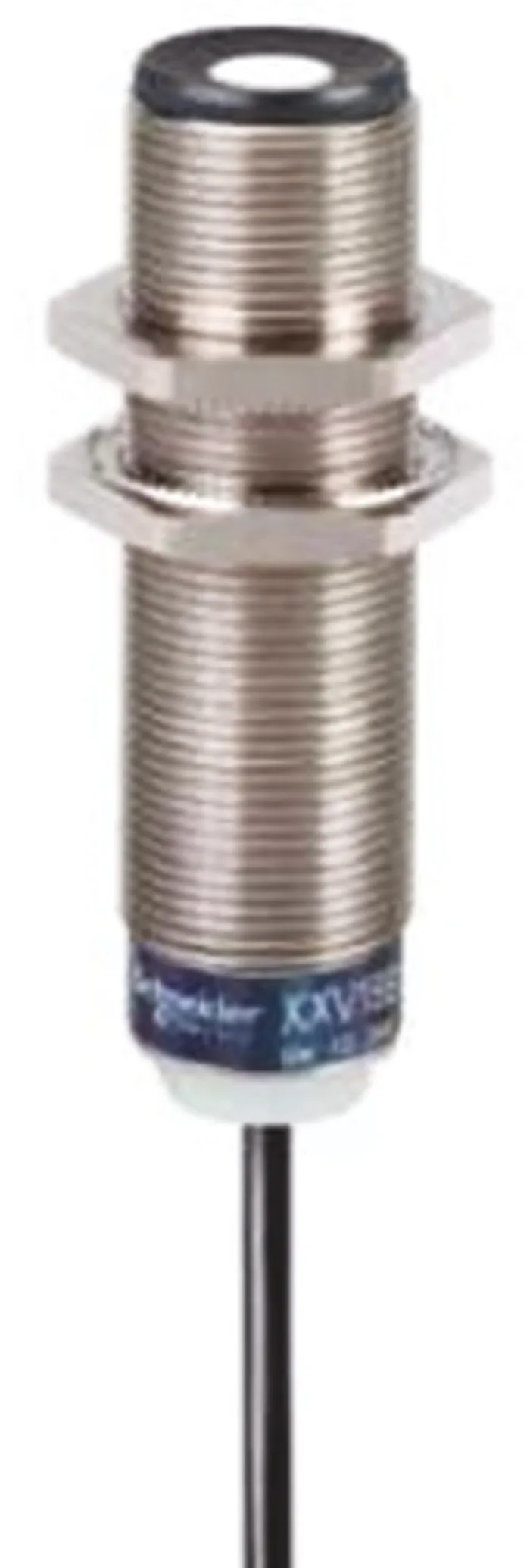

Telemecanique Sensors Threaded Barrel Ultrasonic Proximity Sensor M18 50 mm 200mA NPN 24V dc 36 V dc XXV18B1NAL2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Telemecanique Sensors |
| Response time | 4ms |
| Length | 65mm |
| Model | XXV18B1NAL2 |
| Depth | 65mm |
| IP Rating | IP67 |
| Width | 18mm |
| Housing Material | Brass |
| Output type | NPN |
| Maximum Operating Temperature | 60°C |
| Thread Size | M18 |
| Minimum Operating Temperature | 0°C |
| Switching Current | 200mA |
| Terminal type | Cable |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Maximum Switching Frequency | 80Hz |
| Standards/Approvals | IEC 60947-5-2 |
| Maximum Supply Voltage | 24V dc |
| Maximum Detection | 50mm |
Key Features
- Equipped with an M18 threaded barrel for easy mounting.
- Operates on 24 V dc supply with a maximum voltage tolerance of 36 V dc.
- Features an NPN output type compatible with industrial automation systems.
- Constructed with a durable brass housing and rated IP67 for protection against dust and water ingress.
- Suitable for harsh industrial environments with operating temperatures ranging from 0°C to 60°C.
- Provides switching current up to 200mA and a fast response time of 4 milliseconds.
- Offers a maximum switching frequency of 80 Hz for rapid detection tasks.
- Includes cable terminal type for reliable electrical connection.
Product Description
Telemecanique Sensors XXV18B1NAL2 is a threaded barrel ultrasonic proximity sensor designed for industrial automation with an M18 thread size and a maximum detection range of 50 mm. Operating at 24 V dc and capable of handling up to 36 V dc, this sensor features an NPN output type and delivers a switching current of 200mA. Its brass housing provides robust protection with an IP67 rating, suitable for use in harsh environments requiring high reliability.
This sensor measures 65 mm in length and 18 mm in width, facilitating integration into compact spaces. The cable terminal ensures secure electrical connections for efficient performance. Its response time of 4 ms and maximum switching frequency of 80 Hz make it ideal for fast-paced industrial processes including packaging, handling, and conveyor detection.
The XXV18B1NAL2 conforms to IEC 60947-5-2 standards and operates effectively between 0°C and 60°C. It supports applications across multiple industries such as automotive, food and beverage processing, and general material handling where non-contact detection of metals, plastics, liquids, and various colors is critical.
With no sensitivity adjustment required and LED output indication, this proximity sensor is engineered for ease of installation and reliable operation. The robust construction and resistance to environmental factors make it suitable for harsh industrial settings.
Equipped with M18 threaded barrel for flexible mounting options. Durable brass housing with IP67 rating for dust and waterproof performance. 24 V dc operational voltage with a maximum tolerance of 36 V dc. NPN output for compatibility in various automation systems.
Fast response time of 4 milliseconds supports high-speed switching. Maximum detection distance of 50 mm ensures precise sensing capabilities. Reliable cable terminal connection for stable electrical contact. Operating temperature range from 0°C to 60°C suitable for demanding environments.
Compliant with IEC 60947-5-2 safety and quality standards.
This product is a new industrial Ultrasonic Proximity Sensor ideal for use in diverse automation and control applications. For more high-quality sensors and components, explore the Electronics & Electricals and Sensors categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 50 mm.
It operates at 24 V dc with a maximum voltage tolerance of 36 V dc.
This sensor features an NPN output type, making it compatible with various industrial automation systems.
The response time is 4 milliseconds, allowing for quick detection.
It has an IP67 rating, providing protection against dust and water ingress.
The sensor measures 65 mm in length, 18 mm in width, and has a depth of 65 mm.
The maximum switching current is 200 mA.
The maximum switching frequency is 80 Hz, suitable for rapid detection tasks.
It operates effectively between 0°C and 60°C, making it suitable for harsh environments.
The housing is constructed from brass, ensuring durability in industrial settings.
It includes a cable terminal type for reliable electrical connections.
Yes, it conforms to IEC 60947-5-2 standards for safety and quality.
