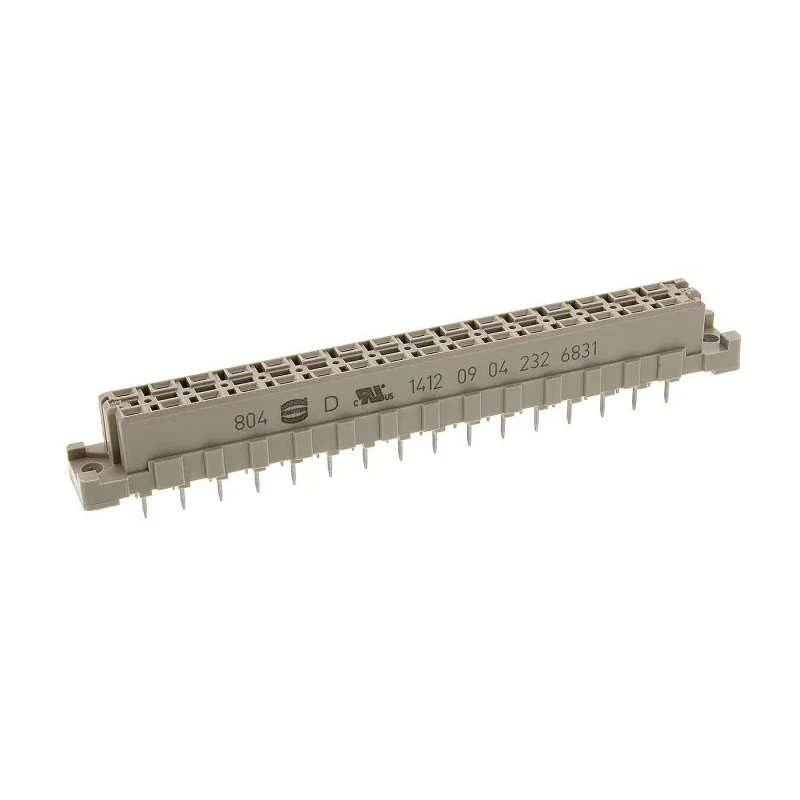

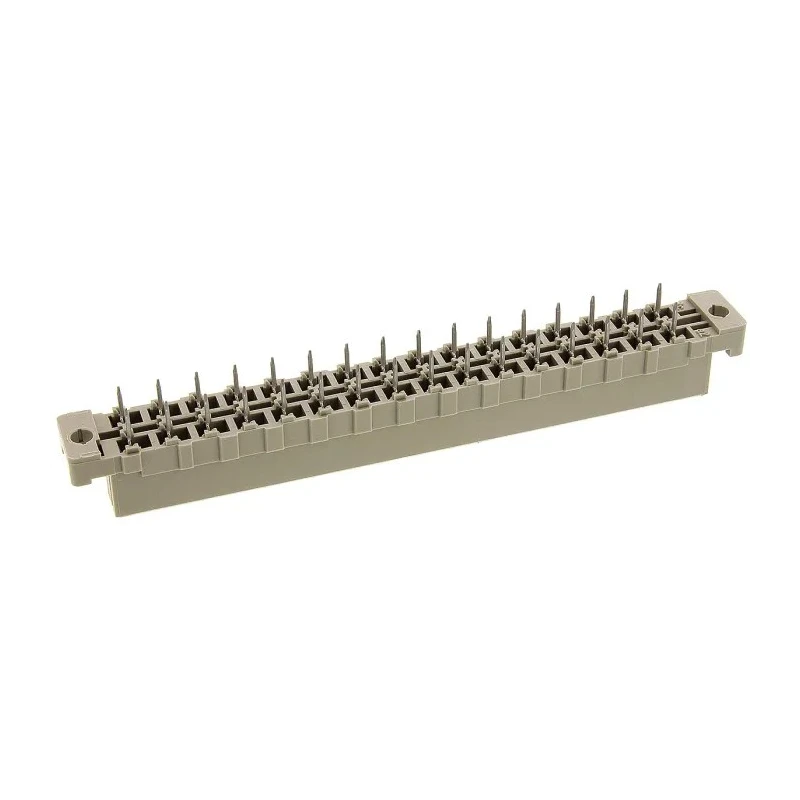

Harting DIN 41612 32 Way Connector, Female, Straight, Through Hole, Type C/2, Solder Class C2, 5.08 mm Pitch 09042326831
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/C |
| ERNI 32 Way 5.08mm Pitch, Straight DIN 41612 Connector, SocketBrand | ERNI |
Key Features
- Designed with DIN 41612 standard for reliable board-to-board connections.
- 32 contacts with 2 rows, supporting 6A current per contact.
- Female connector with straight orientation and through hole mounting.
- Solder termination type for secure electrical contact.
- Gold over nickel contact plating ensures corrosion resistance and conductivity.
- Robust copper alloy contacts and polybutylene terephthalate housing.
- Operating temperature range from -55°C to 125°C.
- Class C2, suitable for demanding industrial, transportation, and power supply environments.
Product Description
Harting 09042326831 DIN 41612 32 Way Female Straight Connector is engineered for robust and reliable board-to-board connections in electronic and industrial contexts. This connector conforms to DIN 41612 standards and is widely used in 19-inch Eurocard racking systems, making it ideal for applications such as railway transportation, industrial power supplies, and other environments where durability is critical.
Featuring 32 contacts arranged in 2 rows, this female connector supports a maximum current of 6A per contact, ensuring strong and stable performance in power-demanding applications. The connector's straight orientation and through hole mounting design facilitate easy installation on printed circuit boards, enhancing system integration and maintainability. The solder termination ensures secure and long-lasting electrical contact, suitable for repeated use and mechanical stress.
Engineered with high-quality materials, including copper alloy contacts plated with gold over nickel, the connector delivers excellent corrosion resistance and conductivity. Its polybutylene terephthalate housing further increases the device's mechanical stability and safety, supporting operation across a broad temperature range from -55°C to 125°C. These features make it well-suited for industrial equipment, control systems, and transportation-related applications.
Class C2 compliance and subtype C/2 enhance the connector's versatility for various demanding use cases. The product achieves a maximum contact resistance of 15mΩ, ensuring reliable signal and power transmission even in high-cycle conditions.
Harting's DIN 41612 connector range meets strict requirements for board connections in power and electronic systems. Applications include industrial control, railway equipment, manufacturing machinery, and commercial electronic installations.
Explore Harting's complete DIN 41612 Connector selection on EnvMart for electronic, industrial, and transportation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 6A per contact, making it suitable for power-demanding applications.
It operates within a temperature range of -55°C to 125°C, allowing it to function in various environments.
The connector features 32 contacts arranged in 2 rows, providing multiple connection points for board-to-board applications.
It utilizes through hole mounting, which facilitates easy installation on printed circuit boards.
It is constructed with copper alloy contacts and a polybutylene terephthalate housing, ensuring mechanical stability and conductivity.
This model features solder termination, ensuring secure and long-lasting electrical contact.
The contacts are plated with gold over nickel, which enhances corrosion resistance and conductivity.
It has a maximum contact resistance of 15mΩ, ensuring reliable signal and power transmission.
Yes, it conforms to the DIN 41612 standard and is classified as Class C2, suitable for demanding applications.
This connector is ideal for use in industrial control, railway equipment, and manufacturing machinery, among other applications.
The connector has a pitch of 5.08 mm, which is standard for DIN 41612 connectors.
The country of origin for this connector is India.
