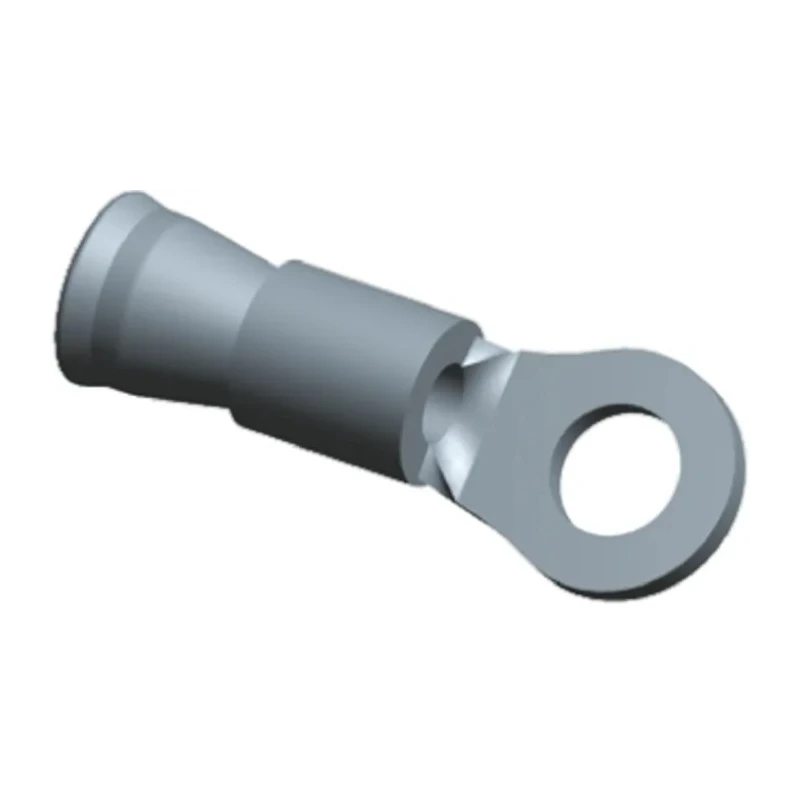

TE Connectivity DG STRATO-THERM Uninsulated Ring Terminal M2.5 Stud Size 22 AWG to 16 AWG Wire Size 322363
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| THICKNESS | 0.79mm |
| Model | 322363 |
| Insulation | Uninsulated |
| Overall Length | 15.85mm |
| Contact Material | Copper |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 343°C |
| Standards/Approvals | RoHS |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 5.54mm |
| Inner Ring Diameter | 3.02mm |
| Stud Size | M2.5 |
Key Features
- Constructed from nickel-plated electrolytic copper for optimal conductivity and corrosion resistance.
- Uninsulated ring terminal suitable for environments requiring heat resistance up to 343°C.
- Features a 5.54 mm outer ring diameter and 3.02 mm inner ring diameter for precise fitting.
- Overall terminal length is 15.85 mm with a thickness of 0.79 mm.
- Compatible with wire sizes ranging from 22 AWG (0.26 mm²) to 16 AWG (1.65 mm²).
- Provides secure electrical connection by forcing wire into barrel serrations during crimping.
- Compliant with RoHS standards ensuring environmental safety.
- Ideal for industrial applications requiring reliable and heat-resistant wire terminations.
Product Description
TE Connectivity 322363 DG STRATO-THERM Uninsulated Ring Terminal is engineered for high-performance electrical connections requiring heat resistance up to 343°C. This ring terminal accommodates wire sizes from 22 AWG to 16 AWG and features an M2.5 stud size ensuring compatibility with various fastening hardware.
Manufactured from nickel-plated electrolytic copper, the terminal assures excellent conductivity and long-term corrosion resistance. Its uninsulated design allows use in high-temperature environments where insulated terminals are unsuitable.
The terminal's outer ring diameter of 5.54 mm and inner ring diameter of 3.02 mm provide precise mounting capabilities. With an overall length of 15.85 mm and thickness of 0.79 mm, it fits compact spaces without compromising durability.
When crimped, the wire strand is driven into serrations inside the barrel, maximizing electrical contact area and ensuring low-resistance connections critical for industrial, manufacturing, and electrical assembly applications.
These Ring Terminals comply with RoHS standards to meet environmental and safety regulations. Their heat resistance makes them suitable for applications in industries such as HVAC, automotive, power electronics, and laboratory equipment.
Constructed from nickel-plated electrolytic copper for excellent conductivity. Uninsulated design suited for high-temperature conditions up to 343°C. Fits wire sizes from 22 AWG to 16 AWG with an M2.5 stud size. Compact overall length and thickness for versatile installations.
Ensures secure, low-resistance electrical connections through serrated barrel crimp. Meets RoHS compliance for environmental safety. Ideal for industrial, commercial, and laboratory electrical applications.
This product is part of the TE Connectivity DG STRATO-THERM series, designed for demanding electrical connectivity needs. Browse the Electronics Components category on EnvMart for compatible wire terminals and connectors from TE Connectivity and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this uninsulated ring terminal is 343°C.
This terminal is compatible with wire sizes ranging from 22 AWG (0.26 mm²) to 16 AWG (1.65 mm²).
The outer ring diameter is 5.54 mm and the inner ring diameter is 3.02 mm.
The overall length of this terminal is 15.85 mm, and its thickness is 0.79 mm.
It is constructed from nickel-plated electrolytic copper, which provides excellent conductivity and corrosion resistance.
The stud size for this model is M2.5.
The terminal ensures a secure electrical connection by forcing the wire into barrel serrations during crimping, maximizing the electrical contact area.
Yes, this product complies with RoHS standards, ensuring environmental safety.
This terminal is ideal for industrial applications requiring reliable and heat-resistant wire terminations, including HVAC, automotive, and power electronics.
The contact plating of this terminal is nickel, which enhances its conductivity and corrosion resistance.
This terminal is part of the TE Connectivity DG STRATO-THERM series, designed for demanding electrical connectivity needs.
The country of origin for this ring terminal is India.
