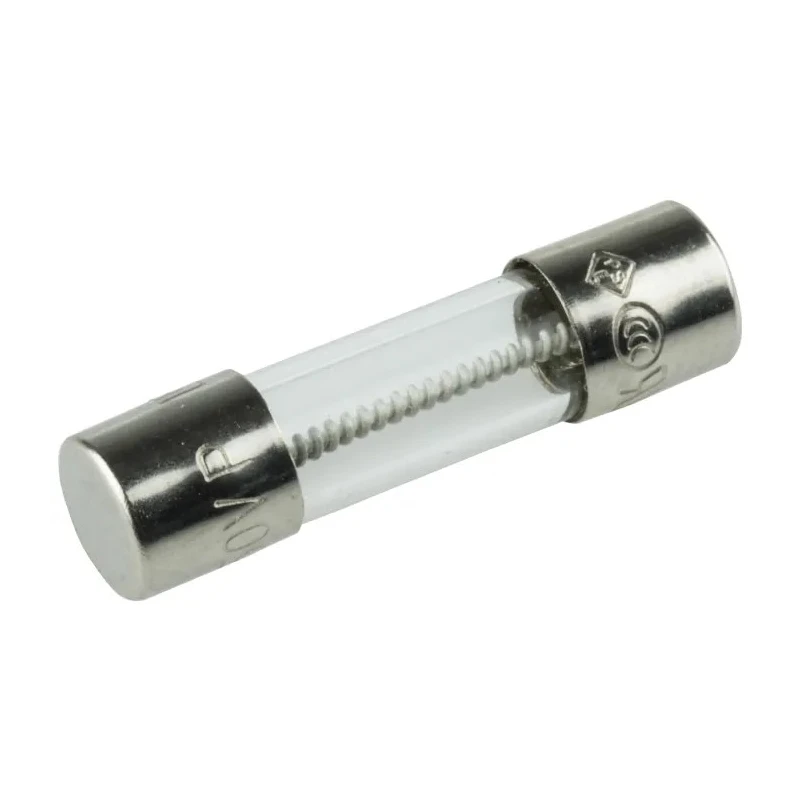

Eaton Glass Cartridge Fuse 100mA 250V AC 5 x 20 mm Time Delay S506-100-R

Eaton S506-100-R Glass Cartridge Fuse is a 100mA, 250V AC rated time delay fuse measuring 5 x 20 mm, designed to safeguard electronic circuits from overcurrent conditions effectively.

These glass-bodied cartridge fuses allow users to visually confirm the fuse status, enhancing maintenance efficiency by easily identifying blown fuses.

The fuse's time delay (T) or slow-blow characteristic means it can tolerate temporary current surges without blowing immediately, which is essential in applications with transient inrush currents.

Its Low Breaking Capacity (LBC) rating specifies the maximum fault current it can interrupt without damage, making it suitable for use in low fault current environments.

The compact 5 mm diameter and 20 mm length dimensions comply with standard fuse holder sizing, ensuring compatibility with a wide range of electronic equipment and panel board protection setups.

Primarily used in industrial, laboratory, and commercial electrical assemblies, it protects sensitive components from damage due to overloads or short circuits. This fuse features a glass body allowing visual inspection of fuse status.

Measures 5 mm in diameter and 20 mm in overall length, fitting standard 5 x 20 mm fuse holders. Designed for 250 Volt AC systems with a current rating of 100mA. The time delay (T) characteristic offers resistance to momentary current surges.

Has a Low Breaking Capacity (LBC) suitable for applications with limited fault current. Manufactured to IEC 60127-2-3 standards and RoHS compliant. Ideal for protection of internal circuits against overcurrent and short circuits.

Glass construction facilitates easy diagnosis of fuse status without removal. Explore the full range of Cartridge Fuses on EnvMart for diverse circuit protection needs.
