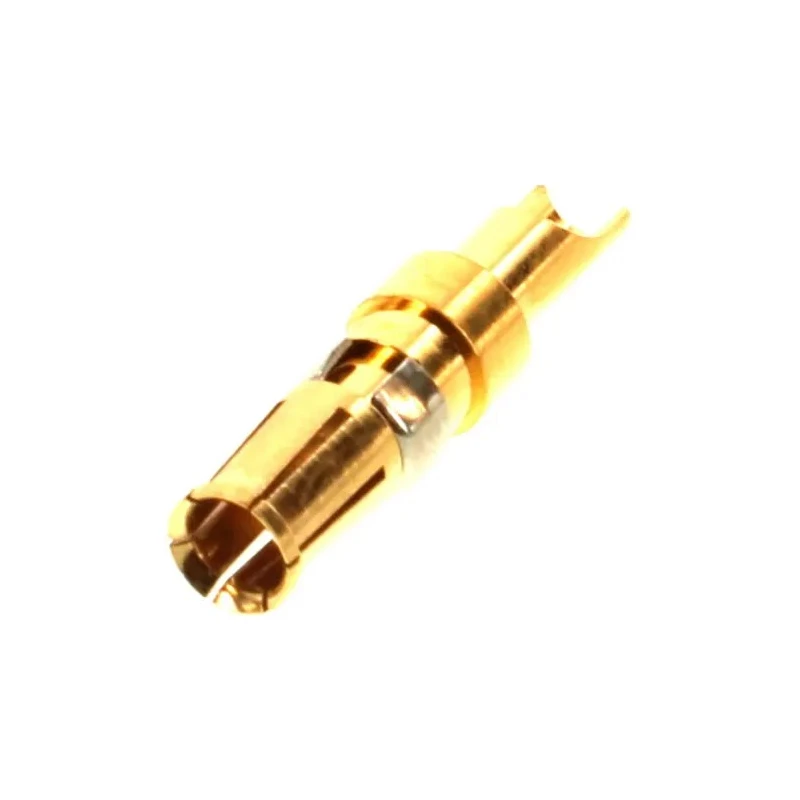

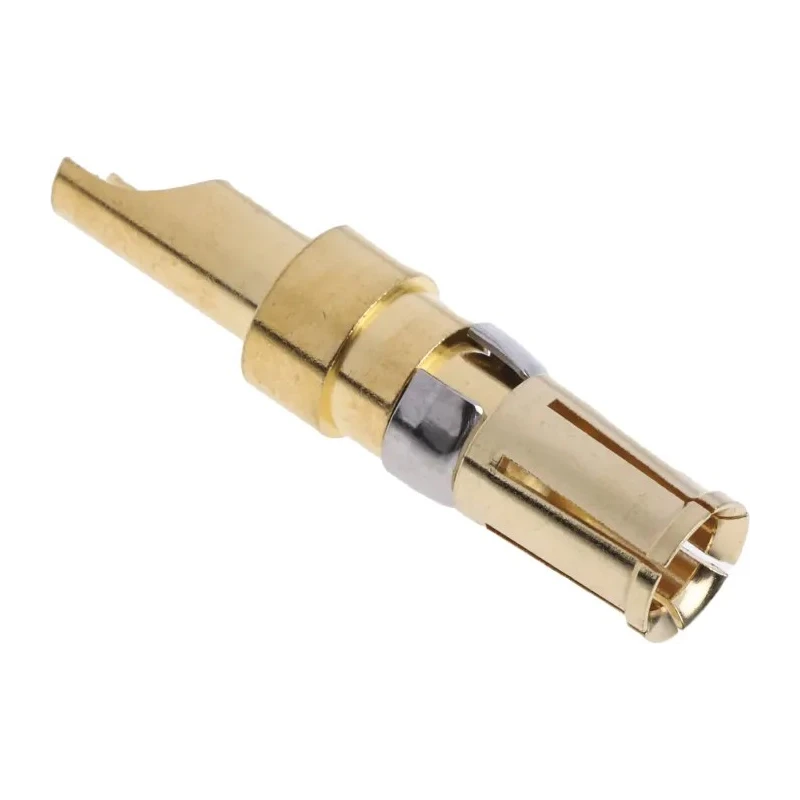

Molex RS PRO Female Solder D-Sub Connector Power Contact Gold over Nickel 16 AWG 20A 301-6828

Molex RS PRO 301-6828 Female Solder D-Sub Connector Power Contact is engineered for reliable power connections in electronic and computer systems. It supports wire sizes ranging from 12 AWG to 16 AWG and delivers a current rating of 20A for demanding applications.

The connector features a copper alloy contact material with gold over nickel plating which ensures excellent conductivity and resistance to oxidation over time. With a contact resistance capped at 50Ω, it provides a stable and efficient electrical flow necessary for mixed layout connector shells.

Physical dimensions measure 22.8 mm in length and it has solder-type termination designed for PCB mounting. The connector is female gender and intended for 17W2 shell housing that accommodates 17 mixed snap-fit contacts, including 15 signal contacts and 2 cavities for both coaxial and power contacts, providing versatility in connection types.

This product is RoHS compliant, meeting environmental standards by restricting hazardous substances, and is manufactured in Germany to high engineering quality standards. It is ideal for industrial, laboratory, manufacturing, and commercial electronic equipment applications requiring robust and sustainable connectivity.

Constructed from copper alloy with gold over nickel plating for enhanced conductivity and resistance to corrosion. Features a maximum contact resistance of 50Ω, ensuring stable electrical performance. Measures 22.8 mm in length with solder termination suitable for PCB mounting.

Designed to fit into 17W2 shell connectors with 17 mixed contacts: 15 signal and 2 power/coaxial cavities. Compliant with RoHS standards and made in Germany. Supports usage in mixed layout connector shells providing sustained and reliable connections.

Female gender, compatible with 12 AWG minimum and 16 AWG maximum wire sizes. Explore comprehensive power connector solutions within the D-Sub Connector category for your electronic assembly and system integration needs on EnvMart.
