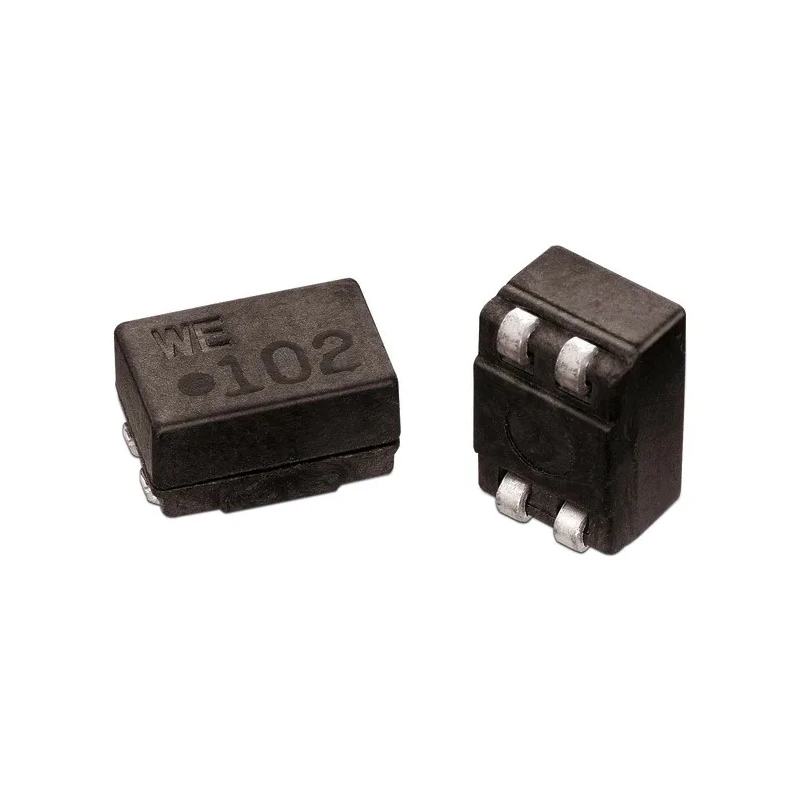

Wurth Elektronik Surface Mount Common Mode Line Filter with Ferrite Core, 25 μH Dual ±30 % 1 A Idc 744228

Wurth Elektronik 744228 Surface Mount Common Mode Line Filter is a highly effective dual inductor with a ferrite core designed for surface mount technology applications. This component provides an inductance of 25 μH with a tolerance of ±30% and supports a maximum DC current of 1 A, making it suitable for numerous electronic filtering requirements.

The device is constructed with a ferrite core that enhances electromagnetic interference (EMI) suppression and maintains consistent performance across a wide temperature range from -40°C to 125°C. Compliance with the automotive standard AEC-Q200 demonstrates its robustness for automotive and industrial electronics applications.

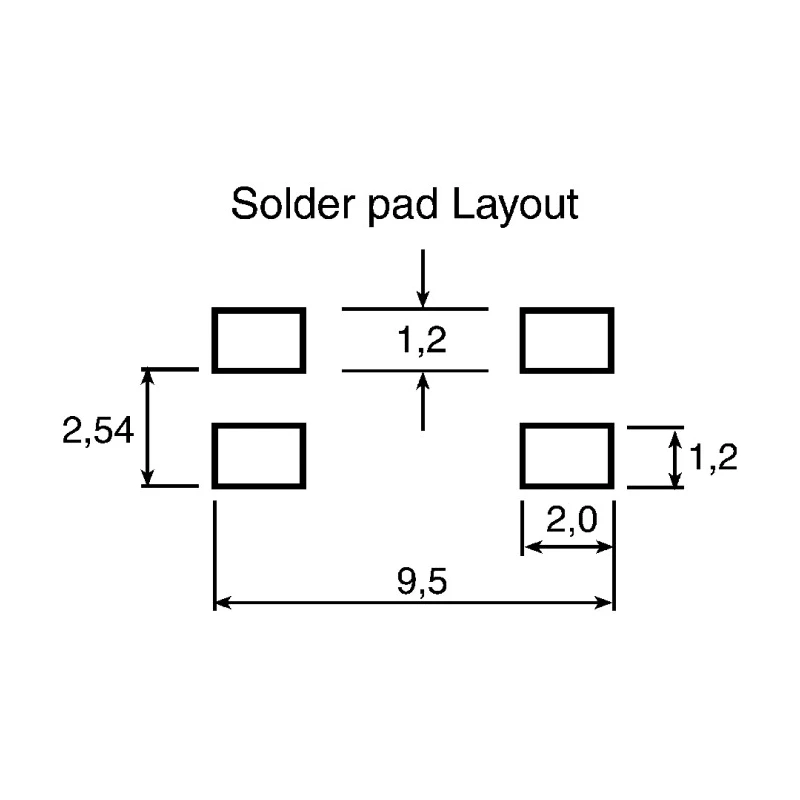

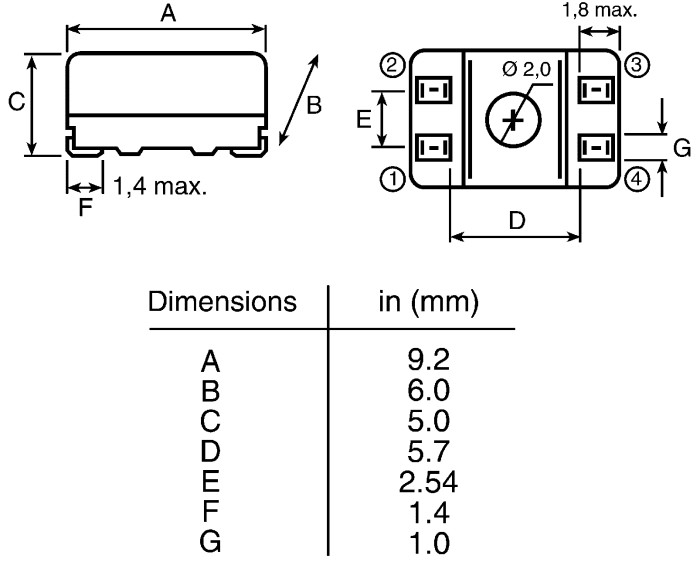

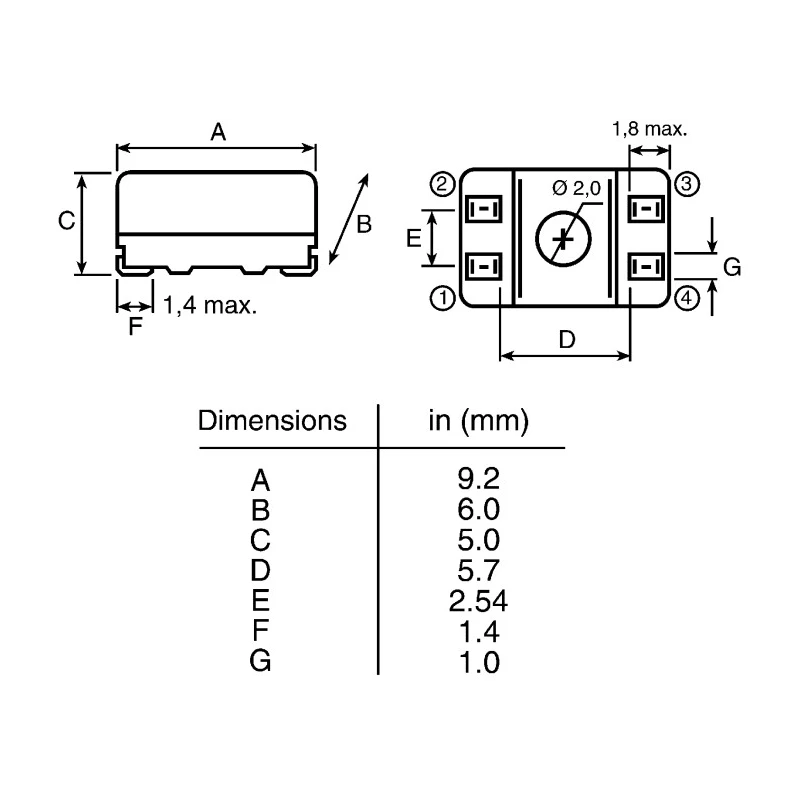

This surface mount choke features a low DC resistance of 120 mΩ and a compact 4-pin package measuring 9.2 mm in length, 5 mm in height, and 6 mm in depth. The termination style is optimized for modern PCB assembly lines, delivered in tape and reel packaging for efficient automated placement.

Typical use cases include noise filtering in bus systems such as CAN, USB, and ISDN signal lines, power supplies, and measurement signal lines in industrial, automotive, and commercial electronics environments. Its maximum self-resonant frequency is about 1 kHz, ensuring effective suppression of low-frequency interference.

This common mode line filter improves signal integrity in power and communication circuits. Surface mount style enhances mounting efficiency in automated PCB manufacturing. Ferrite core construction provides superior EMI noise reduction performance.

AEC-Q200 certification supports automotive durability and reliability standards. Compact dimensions facilitate use in space-constrained electronic designs. Low DC resistance reduces energy loss and heating during operation.

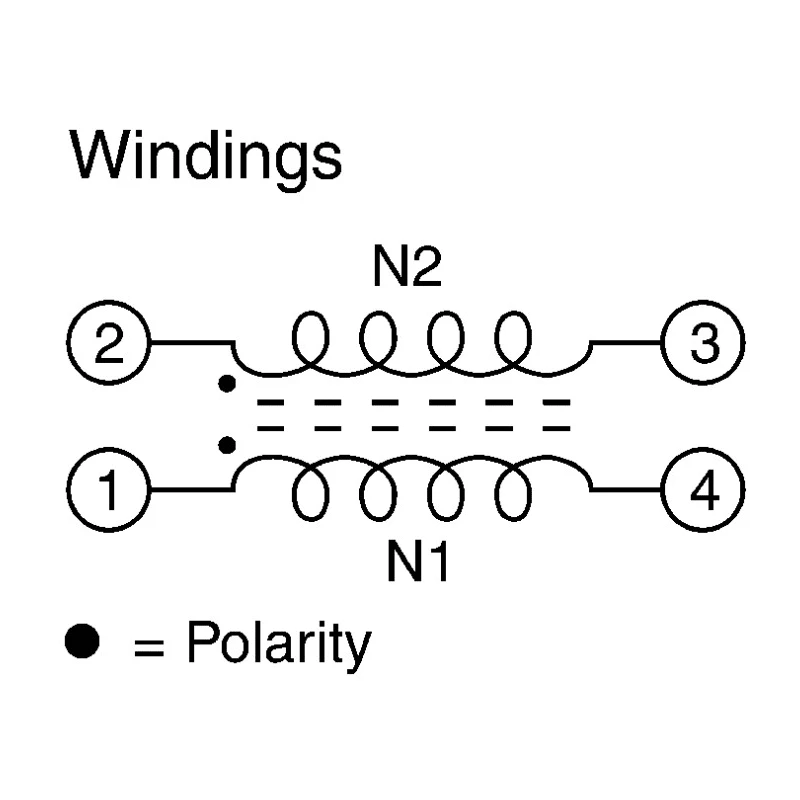

Suitable for filtering in USB, CAN bus, and ISDN applications. Dual inductor design offers balanced noise suppression on differential lines. Delivered in tape and reel packaging ideal for bulk assembly and production.

Choosing Wurth Elektronik 744228 ensures enhanced electromagnetic compatibility in electronic circuits and compliance with demanding industrial requirements. Explore more high-quality electronic components and Surface Mount Inductors from Wurth Elektronik at EnvMart for your project needs.
