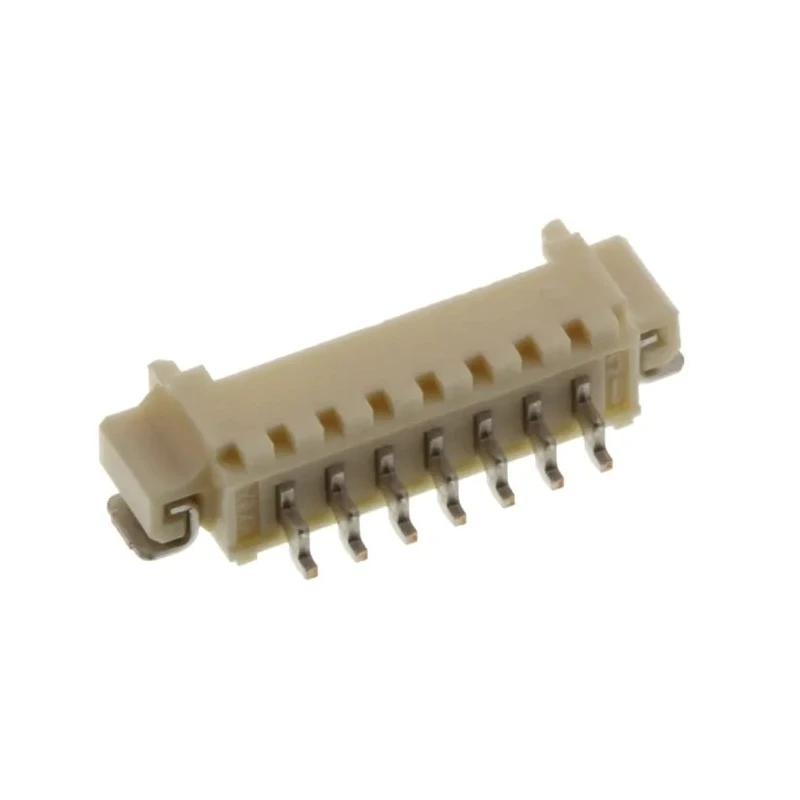

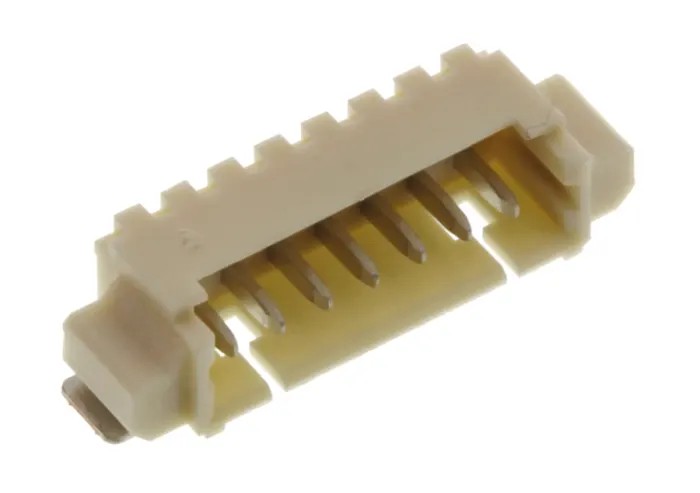

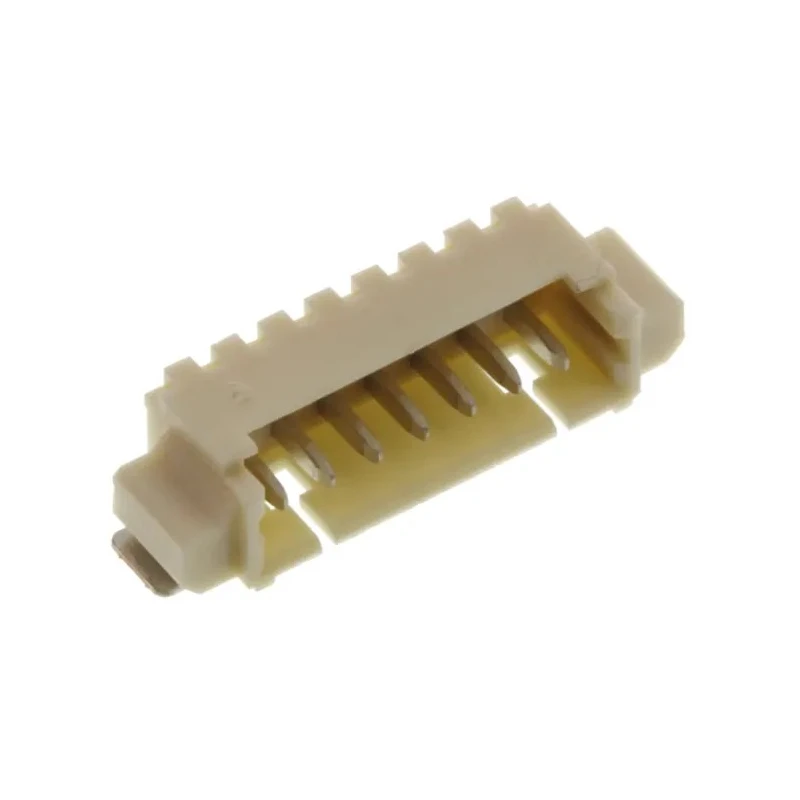

Molex PicoBlade Series Right Angle Surface PCB Header, 7 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53261-0771

Free Delivery in India | Lowest Global Shipping Charges

Molex PicoBlade Series Right Angle Surface PCB Header, 7 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53261-0771

Name: Molex PicoBlade Series Right Angle Surface PCB Header, 7 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 53261-0771
Brand: Molex
SKU: 123415
Price: 0.94 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	Malaysia
Voltage	125V
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Bronze
Series	PicoBlade
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	7
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This header features a shrouded design enhancing connection security.
Right angle orientation optimizes PCB space utilization.
Supports a current capacity of 1 ampere.
Constructed with polyamide housing and phosphor bronze contacts plated with tin for reliable conductivity.
Designed for surface mount soldering, providing strain relief via solder tabs.
The connector system includes a friction locking mechanism to prevent accidental unmating.
Operates safely from -40°C to 105°C.
Designed to save up to 45% PCB space compared to 2.00 mm pitch systems.

Product Description

Molex 53261-0771 PicoBlade Series Right Angle Surface PCB Header is an advanced compact wire-to-board connector designed for high-density PCB applications. Featuring 7 contacts in a single row with a fine 1.25 mm pitch, this connector offers space-saving advantages while maintaining a reliable 1 A current capacity.

The shrouded design includes locking windows which, paired with friction locking mechanisms, provide secure mating connections that resist accidental disconnection from vibration or mishandling. The right angle orientation is ideal for board layouts requiring directional cable management or minimizing footprint.

Made from durable polyamide housing and phosphor bronze contacts plated with tin, this PCB Header ensures excellent electrical performance and durability. The surface mount termination includes solder tabs that not only secure the header to the PCB but also serve as strain relief, reducing the risk of cracked solder joints.

This header operates reliably across a wide temperature range from -40°C to 105°C, making it suitable for various industrial, automotive, and medical applications where performance and reliability are critical.

The Molex PicoBlade connector series supports a wire-to-board system that can reduce PCB space usage by up to 45% compared to the more common 2.00 mm pitch connectors, enabling compact electronic device designs.

This header features a shrouded design enhancing connection security. Right angle orientation optimizes PCB space utilization. Supports a current capacity of 1 ampere. Constructed with polyamide housing and phosphor bronze contacts plated with tin for reliable conductivity.

Designed for surface mount soldering, providing strain relief via solder tabs. The connector system includes a friction locking mechanism to prevent accidental unmating. Operates safely from -40°C to 105°C. Designed to save up to 45% PCB space compared to 2.00 mm pitch systems.

Ideal for automotive alarms, industrial controls, and medical monitoring equipment. Explore Molex PicoBlade Series and other PCB connectors at EnvMart for high-quality electronic components for your industrial and manufacturing projects.
