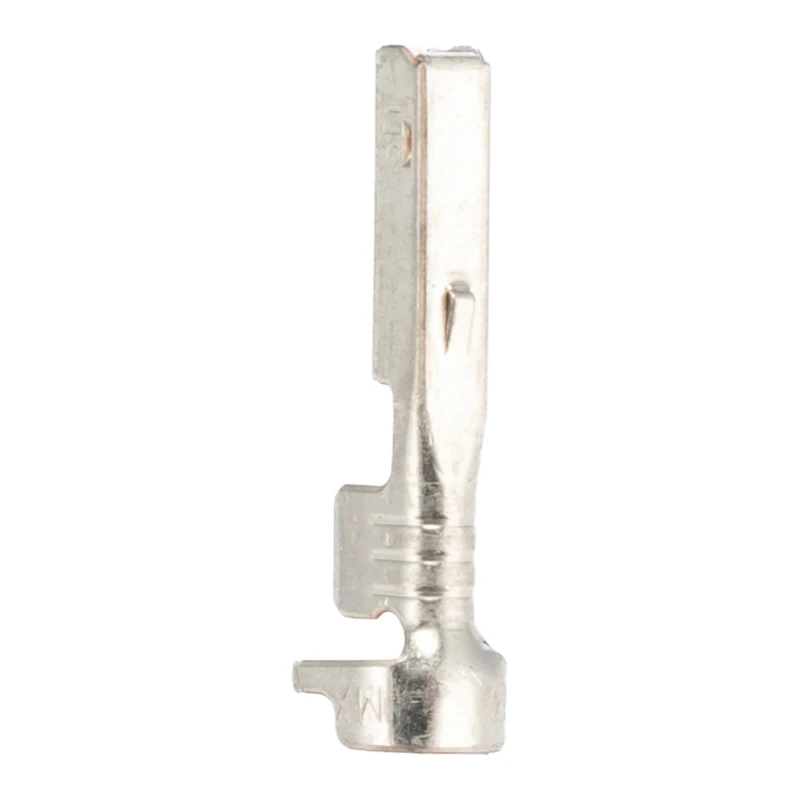

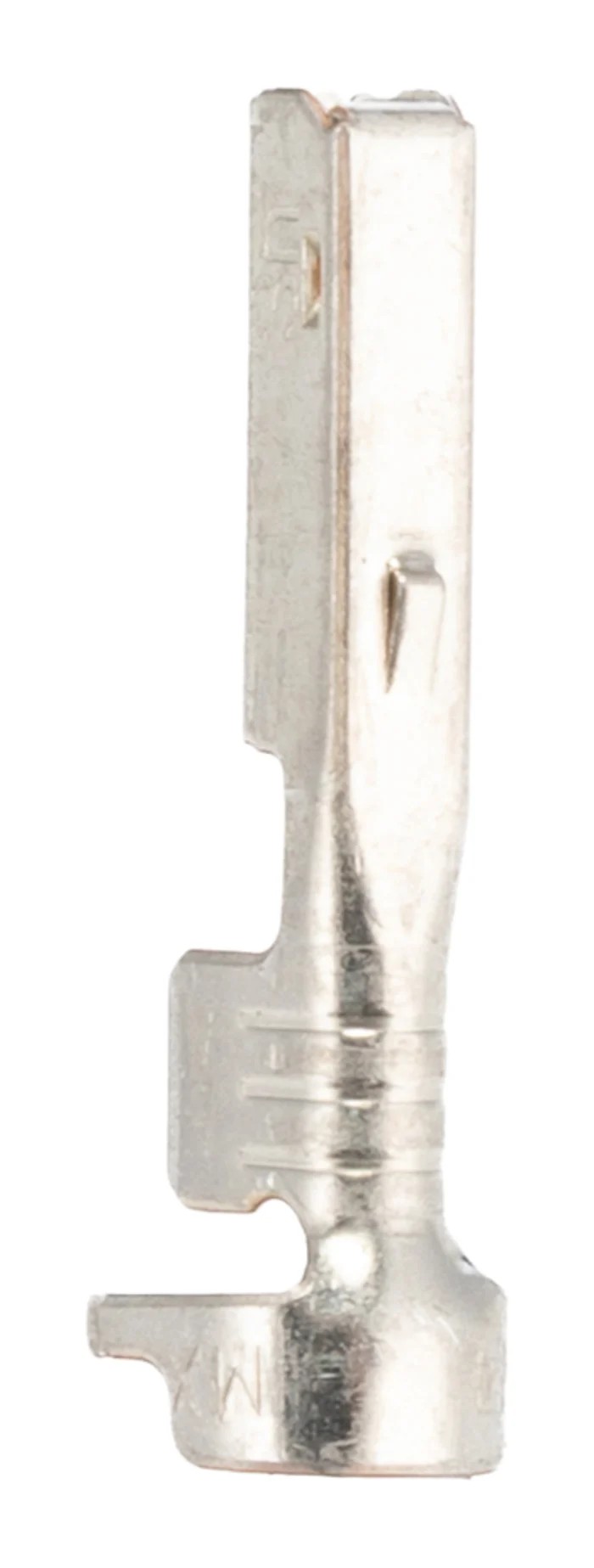

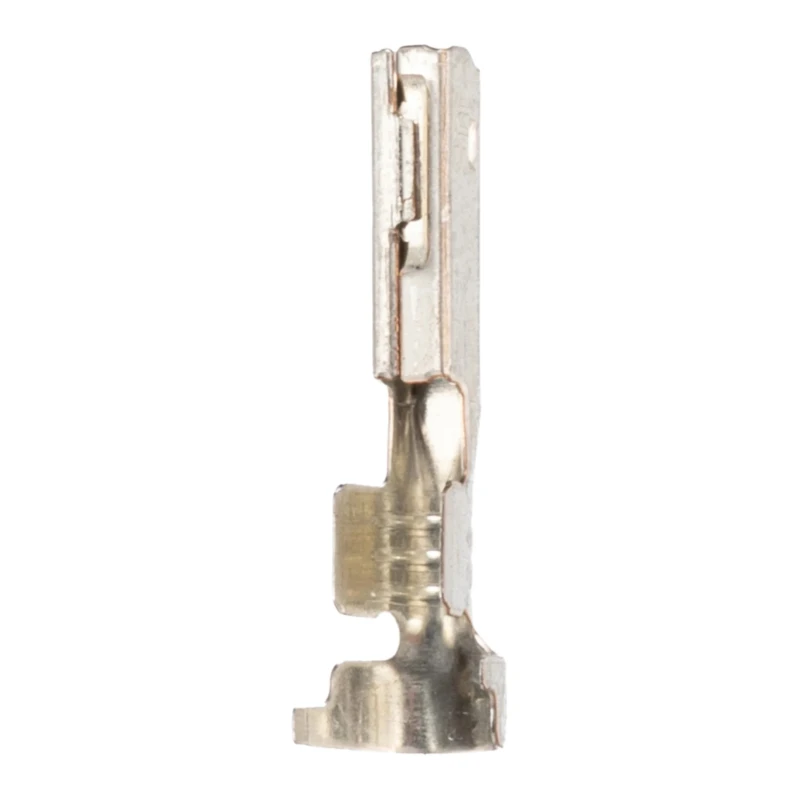

Molex 19420 Series Female Crimp Terminal for MX150L Connector Housing, 16 AWG Min, 14 AWG Max 19420-0009
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 19420 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| For Use With | MX150L Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.3mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with MX150L connector housing for reliable connections.
- Accepts wire sizes from 1.3 mm² (16 AWG) to 2 mm² (14 AWG).
- Constructed with copper alloy contact material for durability.
- Features tin plating to enhance conductivity and corrosion resistance.
- Operates efficiently between -40°C and 120°C.
- Crimp termination type ensures secure and robust electrical contact.
- Maximum contact resistance of 10 milliohms for optimal performance.
- Suitable for automotive wiring and electrical assembly applications.
Product Description
Molex 19420-0009 female crimp terminal, part of the 19420 Series, is engineered for the MX150L connector housing. It supports wire gauges from 16 AWG minimum to 14 AWG maximum (1.3 mm² to 2 mm²), providing a robust and dependable connection through a crimp termination method.
This terminal incorporates high-performance copper alloy with tin plating, which enhances electrical conductivity and provides resistance against corrosion. It is designed to perform reliably within a temperature range of -40°C up to 120°C, making it suitable for demanding industrial and automotive environments.
The Crimp Terminal's contact resistance is maintained at a low maximum of 10 milliohms to ensure efficient signal and power transmission. The product meets low-halogen and environmental directives ensuring safer usage and disposal.
Widely used for automotive wiring harnesses, electrical assemblies, and control system wiring, this terminal is ideal for both wire-to-board and wire-to-wire connections, supporting both power and low-level signal applications.
Compatible with MX150L connector housing for reliable connections. Accepts wire sizes from 1.3 mm² (16 AWG) to 2 mm² (14 AWG). Copper alloy contact material provides long-term durability. Tin plating enhances conductivity and corrosion resistance.
Operates effectively from -40°C to 120°C. Crimp termination type ensures secure connections. Maximum contact resistance of 10 milliohms. Suitable for automotive and industrial electrical assemblies. Supports both power and signal wiring applications.
This product is manufactured in the United States and offered in a new condition. It is widely applicable across industrial, automotive, manufacturing, and electrical sectors. Browse our extensive Electronics Components category to find compatible and complementary products for your application.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal accepts wire sizes from 1.3 mm² (16 AWG) minimum to 2 mm² (14 AWG) maximum.
It operates effectively within a temperature range from -40°C to 120°C.
The contacts are made from copper alloy, which provides durability and enhances conductivity.
This terminal utilizes a crimp termination type, ensuring secure and robust electrical connections.
The maximum contact resistance is 10 milliohms, ensuring optimal performance for signal and power transmission.
Yes, it is widely used for automotive wiring harnesses and electrical assemblies.
The contacts feature tin plating, which enhances conductivity and provides resistance against corrosion.
This crimp terminal is manufactured in the United States.
It is specifically designed for use with the MX150L connector housing.
This terminal supports both power and low-level signal applications, suitable for wire-to-board and wire-to-wire connections.
Specific dimensions are not provided, but it is designed to fit within the MX150L connector housing.
Yes, it meets low-halogen and environmental directives, ensuring safer usage and disposal.
