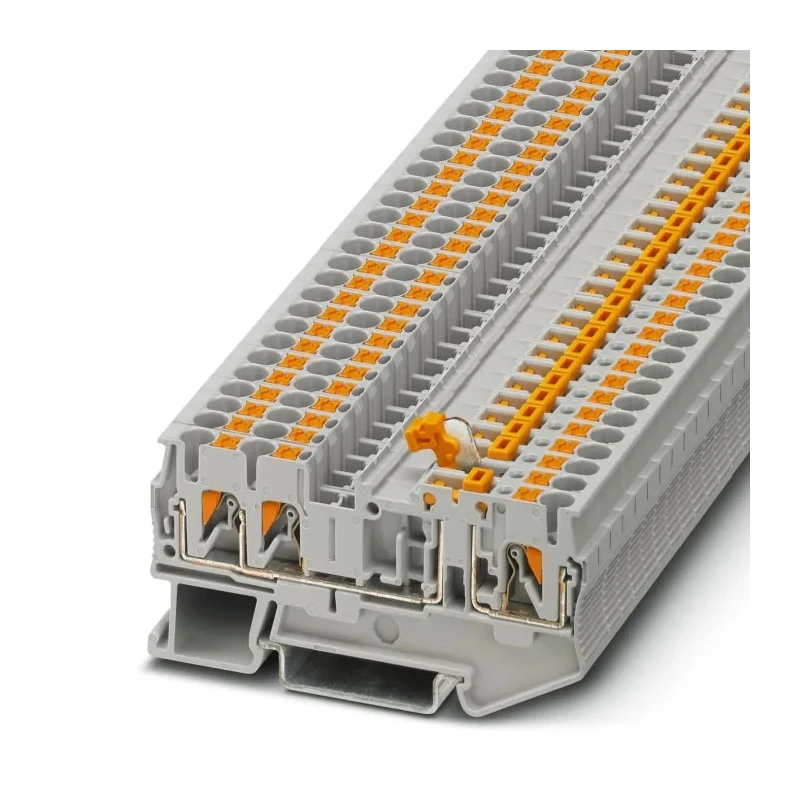

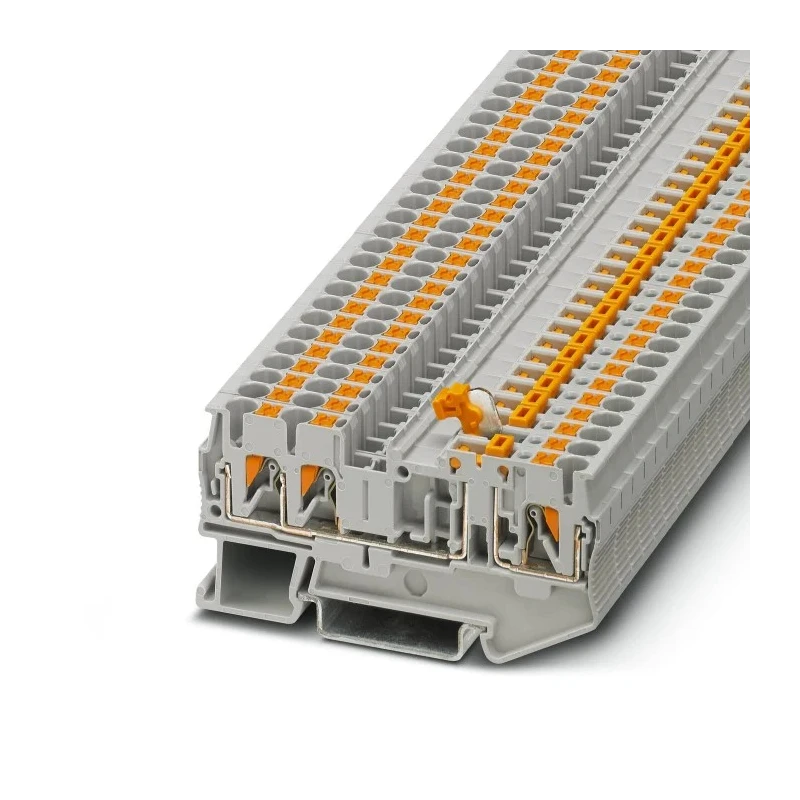

Phoenix Contact Knife Disconnect Terminal Block PT 2.5-TWIN-MT Series Grey, 0.14mm² to 4 mm², 1-Level, Push-in 3210169

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact Knife Disconnect Terminal Block PT 2.5-TWIN-MT Series Grey, 0.14mm² to 4 mm², 1-Level, Push-in 3210169

Name: Phoenix Contact Knife Disconnect Terminal Block PT 2.5-TWIN-MT Series Grey, 0.14mm² to 4 mm², 1-Level, Push-in 3210169
Brand: PHOENIX CONTACT
SKU: 212158
Price: 6.55 USD
Availability: InStock



Category Terminal Block Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Poland
Voltage	400V
Brand	Phoenix Contact
Colour	Grey
Model	3210169
Series	PT 2.5-TWIN-MT
Termination Type	Push-in
Maximum Operating Temperature	105°C
Number of Levels	1
Sub Type	Disconnect
Minimum Operating Temperature	-60°C
Standards/Approvals	EAC
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	12AWG
Cable CSA	0.14, 4mm²
Terminal Block Current	20A

Key Features

The terminal block features a slim grey PA housing with a width of 5.2 mm for space-saving DIN rail installation.
It supports a voltage rating of 400 V and a current carrying capacity of 20 A for robust electrical performance.
Push-in termination technology enables quick and secure conductor connections at the front of the block.
Operating temperature range from -60°C to 105°C ensures durability in harsh industrial environments.
Integrated test points facilitate current measurements for precise monitoring applications.
Single-level design with a central lever allows for fast and safe circuit interruption without wire removal.
Compatible with FBS bridges to link multiple blocks in the CLIPLINE range for flexible setups.
Easy snap-on mounting onto any standard 35 mm DIN rail simplifies installation in control cabinets.

Product Description

Phoenix Contact 3210169 Knife Disconnect Terminal Block PT 2.5-TWIN-MT series is engineered for efficient and safe electrical circuit management in automation and electrical distribution systems. Featuring a robust polyamide (PA) insulation housing in grey, it supports wire cross sections from 0.14 mm² to 4 mm² and offers a voltage rating of 400 V with a current capacity of 20 A.

The push-in termination design allows conductors to be connected swiftly at the front without additional tools, while the central lever and latching mechanism facilitate quick circuit opening. This design eliminates the need to pull wires during maintenance, enhancing safety and productivity.

With a slim width of 5.2 mm, the terminal block conserves rail space, making it ideal for crowded industrial control cabinets. It operates reliably across an extensive temperature range from -60°C to 105°C, making it suitable for harsh environmental conditions.

Integrated test points allow for convenient current measurements, supporting monitoring and diagnostic tasks within electrical installations. The double-function shaft supports FBS bridging bars, enabling modular linking with other CLIPLINE terminal blocks for customized wiring arrangements.

This terminal block snaps securely onto any standard 35 mm DIN rail, streamlining installation and reducing setup time in industrial, manufacturing, HVAC, and control cabinet applications.

The terminal block's slim design saves space in electrical panels. Push-in technology ensures quick, reliable conductor connection. Wide operating temperature range enhances durability and safety. Integrated test points support electrical current monitoring.

Compatibility with FBS bridges allows flexible system configurations. Durable PA housing offers impact resistance in demanding environments. Designed for fast mounting on standard 35 mm DIN rails.

This product is an excellent choice for OEMs, electrical installers, and system integrators involved in industrial automation, control systems, and electrical distribution. Explore more high-quality Terminal Blocks and power connectors by Phoenix Contact at EnvMart.
