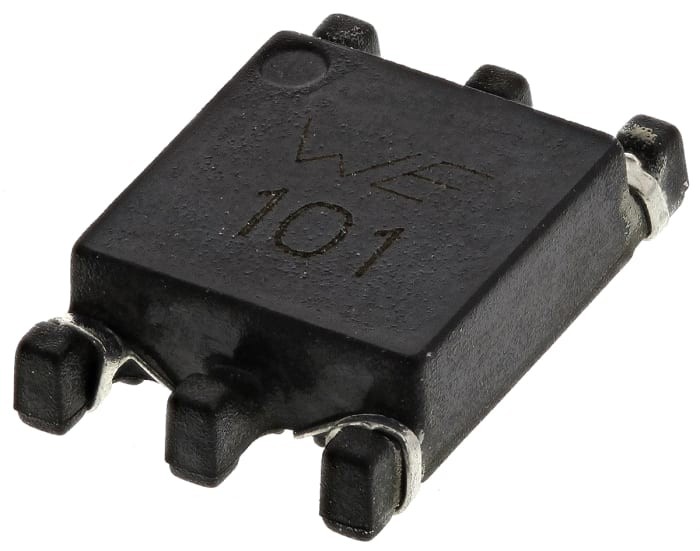

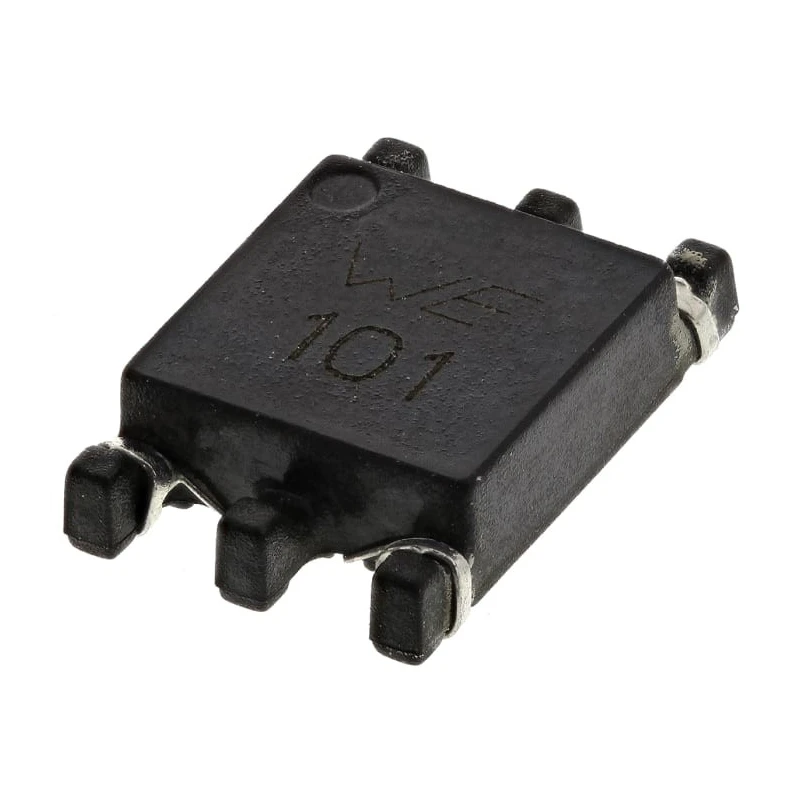

Wurth Elektronik WE-SL3 Surface Mount Common Mode Line Filter with Ferrite Core 100µH Dual Inductor 500mA DC 744252101
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.5mm |
| Length | 9.2mm |
| Depth | 6.6mm |
| Packaging | Tape & Reel |
| Series | WE-SL3 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | UL 94 V0 |
| Package/Case | Surface Mount |
| Maximum DC Current | 500mA |
| Pin Count | 4 |
| Maximum DC Resistance | 280mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |

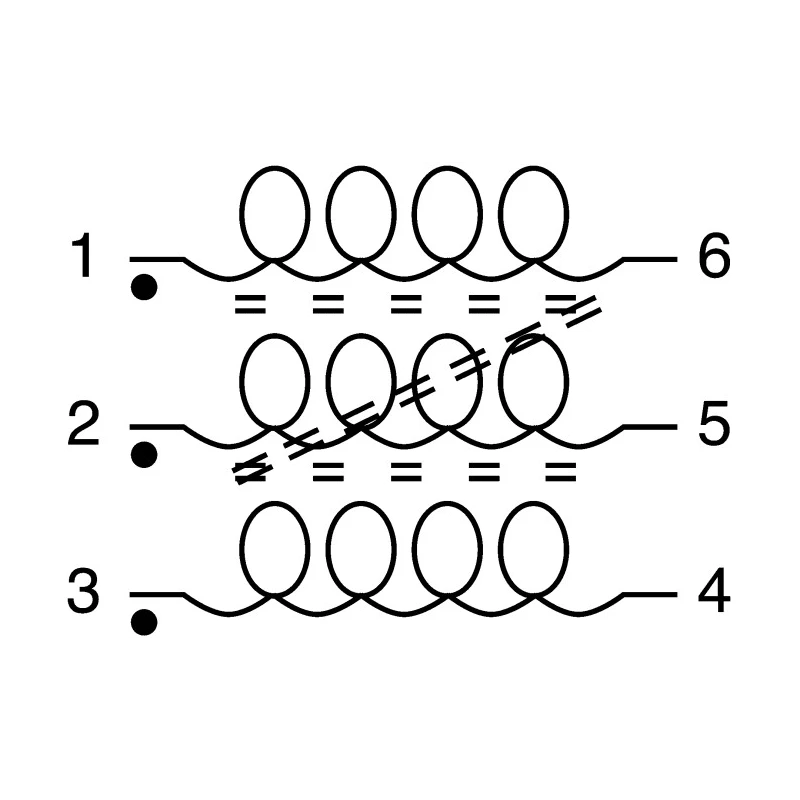

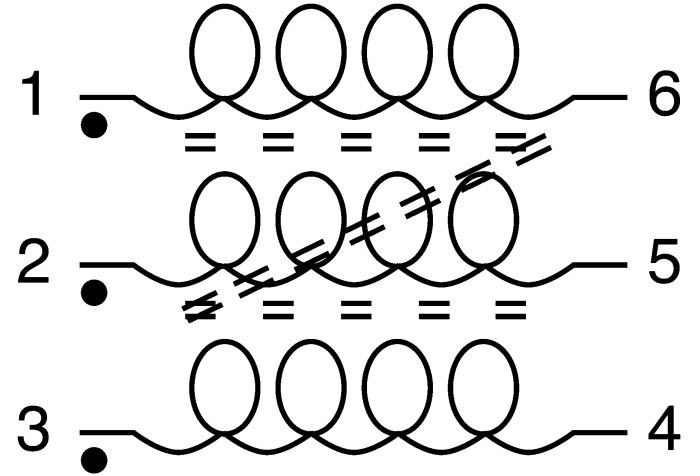

| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- Offers inductance tolerance from -30 to +50 percent.

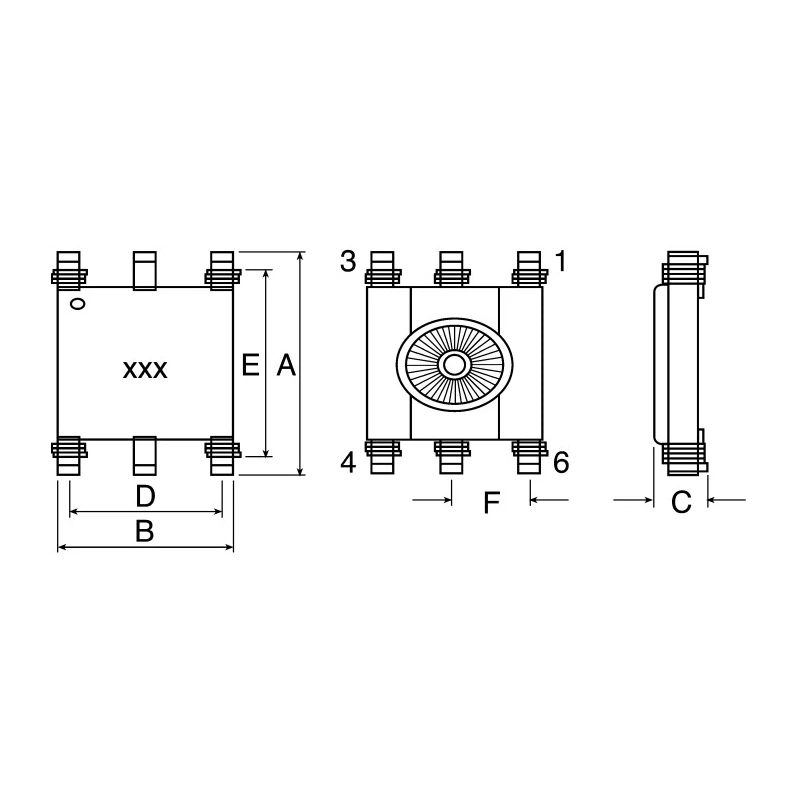

- Designed with a 4-pin surface mount package measuring 9.2mm in length, 6.6mm in depth, and 2.5mm in height.
- Supports a maximum DC resistance of 280 milliohms and operates up to 125°C.
- Compliant with automotive standard AEC-Q200 and UL 94 V0 housing for safety.
- Suitable for use in USB, Firewire, CAN, data, and power line applications.
- Packaged in tape & reel format for automated assembly processes.
Product Description

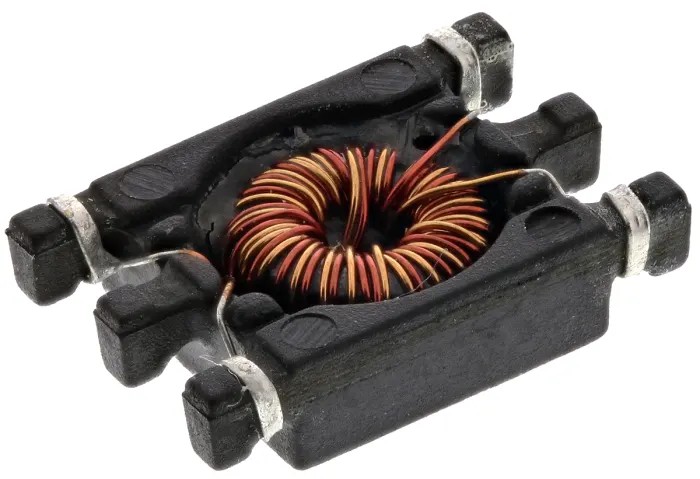

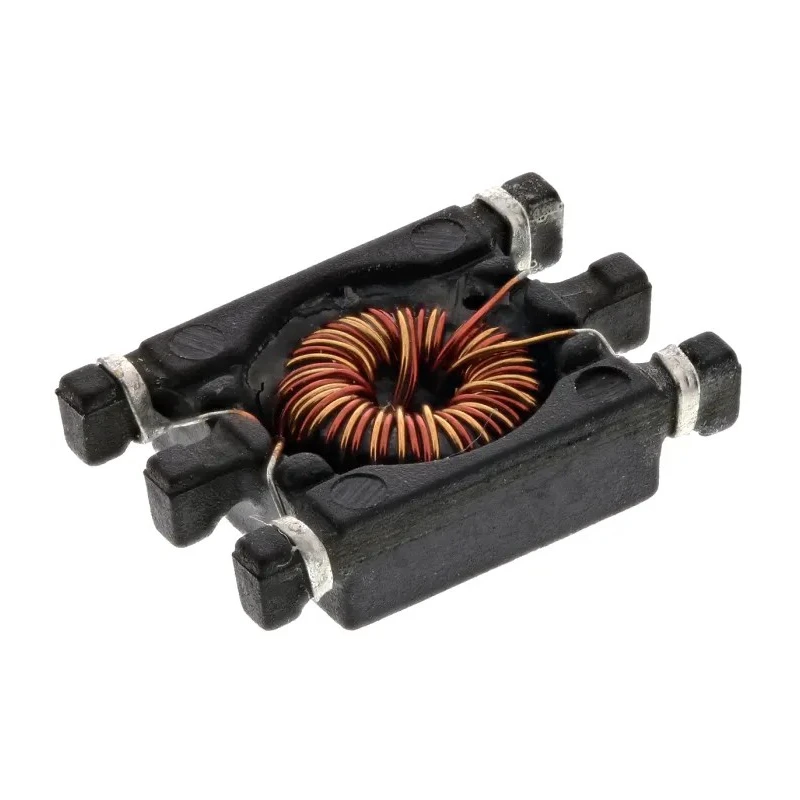

Wurth Elektronik 744252101 is a high-quality surface mount common mode line filter featuring a ferrite core and dual inductor construction with 100µH inductance, designed for efficient noise suppression in sensitive electronic circuits.
This component is rated for a maximum direct current of 500mA and has an inductance tolerance ranging from -30% to +50%, making it suitable for a variety of industrial and automotive electronics applications.
The compact surface mount package measures 9.2mm in length, 6.6mm in depth, and 2.5mm in height, with 4 pins for easy PCB mounting. It exhibits a maximum DC resistance of 280 milliohms and can operate in ambient temperatures from -40°C to 125°C.
The product complies with automotive standard AEC-Q200 and features an UL 94 V0 rated housing, ensuring high safety and reliability in demanding environments. The ferrite core minimizes stray and leakage inductance, contributing to improved filtering performance.
Common applications include CAN bus systems, USB interfaces, Firewire connections, and other data and power line filtering tasks in industrial, automotive, and commercial electronic equipment.
Inductance: 100µH with dual inductor construction. Maximum DC Current Rating: 500mA. Operating Temperature Range: -40°C to 125°C. Package Dimensions: 9.2mm (L) x 6.6mm (D) x 2.5mm (H). Packaging: Tape and reel suitable for automated assembly.
Compliance: AEC-Q200 automotive standard, UL 94 V0 housing.
This surface mount common mode line filter from Wurth Elektronik is a reliable choice for engineers seeking to reduce electromagnetic interference on power and data lines in demanding applications. Browse our extensive catalog of Wurth Elektronik components at EnvMart for more electronic solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100µH, with a tolerance ranging from -30% to +50%.
It has a maximum DC current rating of 500mA.
The package measures 9.2mm in length, 6.6mm in depth, and 2.5mm in height.
This component operates within a temperature range of -40°C to 125°C.
The inductor features a ferrite core material, which helps minimize stray and leakage inductance.
It complies with the automotive standard AEC-Q200 and has a UL 94 V0 rated housing for safety.
The maximum DC resistance of this model is 280 milliohms.
It is suitable for applications involving USB, Firewire, CAN, data, and power lines.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
This unit has a pin count of 4, allowing for easy PCB mounting.
The maximum self-resonant frequency is 100kHz, which is important for its filtering performance.
This model features a dual inductor construction, enhancing its filtering capabilities.
