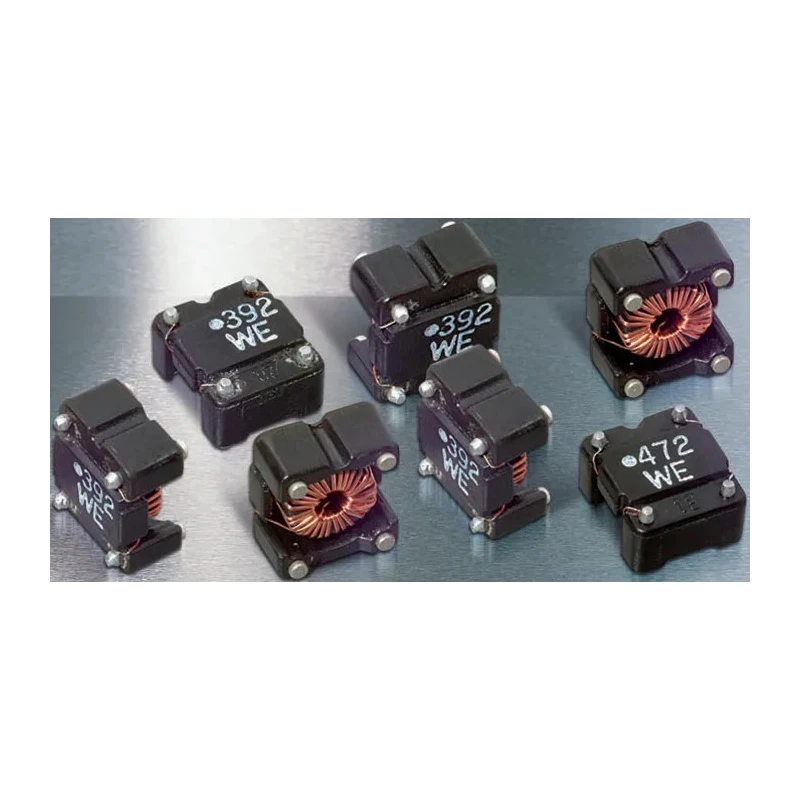

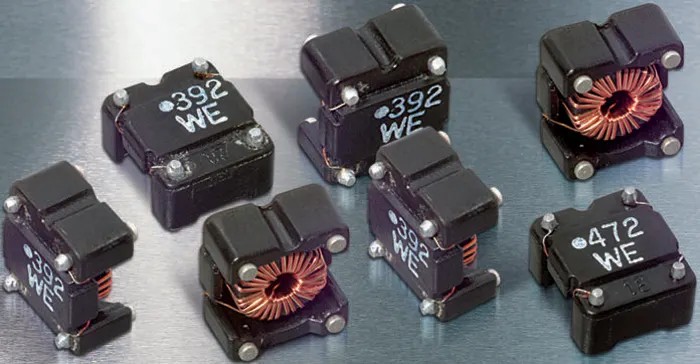

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core, 220μH Sectional Winding ±40%, 2.2A 744272221
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 10mm |
| Depth | 8.7mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, Firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 220μH |
| Standards/Approvals | UL-94 V-0, RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 2.2A |
| Pin Count | 4 |
| Maximum DC Resistance | 32mΩ |
| Inductance Tolerance | ±40 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Sectional Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact surface mount design with a 4-pin tape and reel package.
- Constructed with a ferrite core and sectional winding for improved noise suppression.
- Rated for high current applications up to 2.2 amperes.
- Operating temperature range from -40°C to 125°C for reliability under harsh conditions.
- Compliance with automotive standard AEC-Q200 ensures suitability for automotive electronics.
- Low DC resistance of 32 milliohms minimizes power loss during operation.
- Maximum self-resonant frequency of 100 kHz optimizes filtering performance.
- Applications include CAN, USB, Firewire, data, and power line noise filtering.
Product Description
Wurth Elektronik 744272221 is a surface mount common mode line filter designed with a ferrite core, providing an inductance of 220μH with a ±40% tolerance. This component supports a maximum DC current of 2.2 A and features a sectional winding construction for effective noise suppression in electronic circuits.

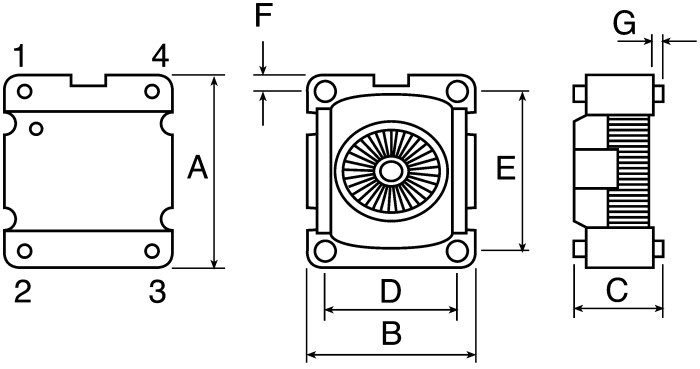

Featuring a compact 4-pin surface mount package measuring 10 mm in length, 6.5 mm in height, and 8.7 mm in depth, it is supplied in tape and reel packaging suitable for automated assembly processes. The filter complies with the automotive AEC-Q200 standard and is housed in a UL-94 V-0 rated material ensuring flame retardance and safety.
The device has a low DC resistance of 32 milliohms and a maximum operating temperature of 125°C, suited to demanding automotive and industrial environments. It offers a maximum self-resonant frequency of 100 kHz to provide efficient noise filtering on CAN, USB, Firewire, data, and power lines.
Key features include low stray and leakage inductance, a ferrite core optimized for electromagnetic interference (EMI) suppression, and a robust surface mount design for high-density PCB layouts.
Compact 4-way surface mount design with tape and reel packaging. High current rating up to 2.2 A suitable for power and data line filtering. Automotive grade with AEC-Q200 certification for durability and reliability. Low DC resistance enhances efficiency and reduces power dissipation.
Robust UL-94 V-0 rated flame retardant housing for enhanced safety. Applications include automotive, industrial, and communication equipment noise suppression.
This Wurth Elektronik common mode choke is ideal for industrial, automotive electronics, manufacturing, and data transmission applications where electromagnetic interference reduction is critical. Explore more Surface Mount Inductors and EMI filter solutions on EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this common mode line filter is 220μH with a tolerance of ±40%.
This model supports a maximum DC current of 2.2A, making it suitable for high current applications.
The dimensions of this surface mount component are 10 mm in length, 6.5 mm in height, and 8.7 mm in depth.
The operating temperature range for this filter is from -40°C to 125°C, allowing it to function in harsh conditions.
The maximum self-resonant frequency of this inductor is 100 kHz, which optimizes its filtering performance.
This component is supplied in tape and reel packaging, suitable for automated assembly processes.
This model complies with the automotive standard AEC-Q200 and is housed in UL-94 V-0 rated material for flame retardance.
This filter supports interfaces including USB, Firewire, data, and power lines, making it versatile for various applications.
The core material used in this filter is ferrite, which is effective for electromagnetic interference (EMI) suppression.
The DC resistance of this inductor is 32 milliohms, which helps minimize power loss during operation.
This model is suitable for applications in automotive, industrial, and communication equipment where noise suppression is critical.
This component has a pin count of 4, designed for surface mount installation.
