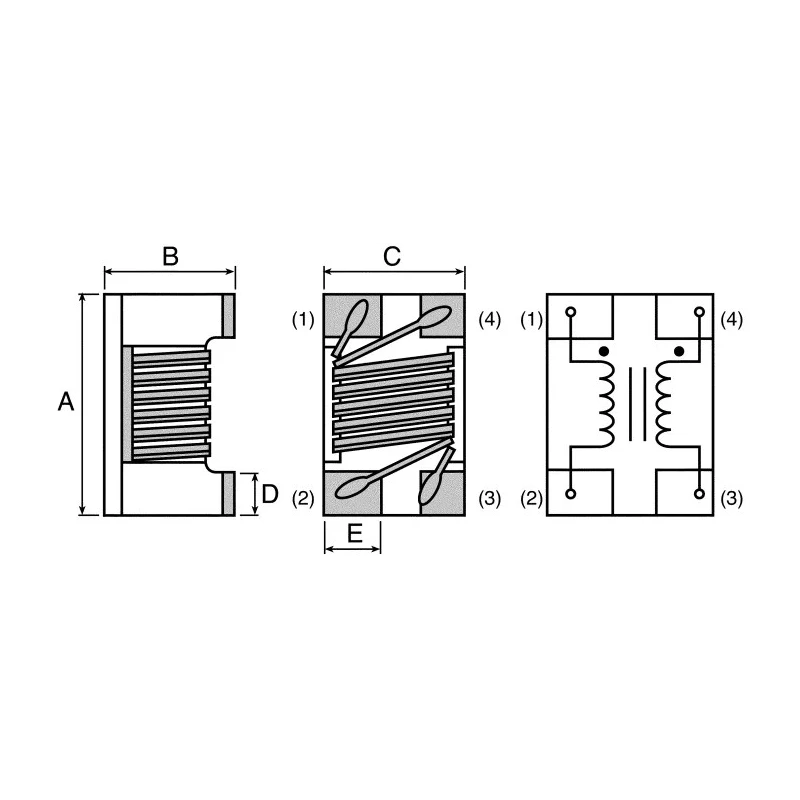

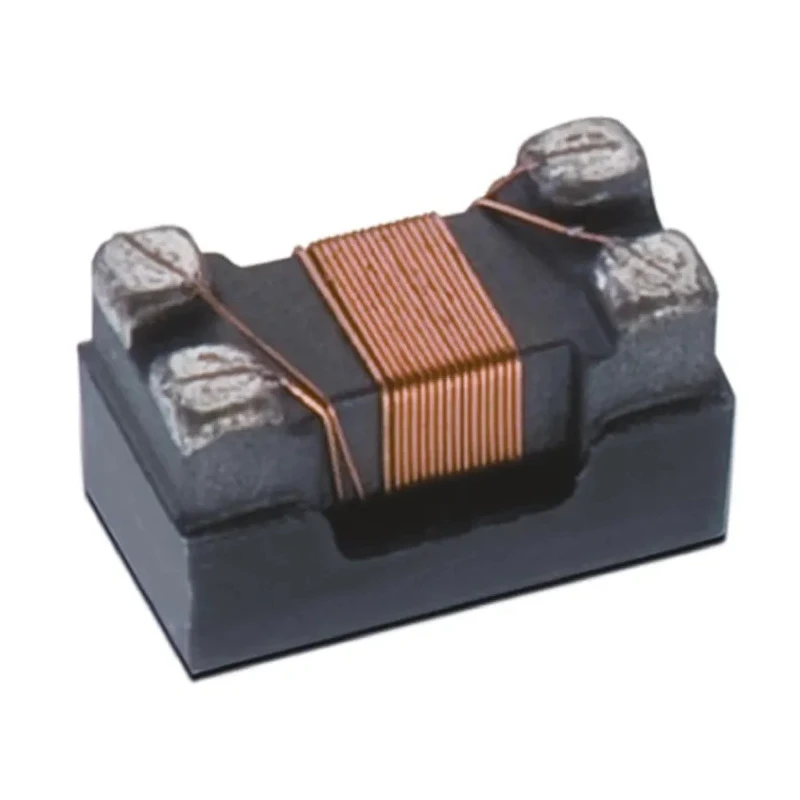

Wurth Elektronik 1206 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 0.3μH Dual ±25 744232261
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 1.8mm |
| Length | 3.2mm |
| Depth | 1.6mm |
| Packaging | Tape & Reel |
| Series | WE-CNSW SMD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 0.3μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 1206 |
| Maximum DC Current | 310mA |
| Pin Count | 4 |
| Maximum DC Resistance | 500mΩ |
| Inductance Tolerance | ±25 % |
| Termination Style | Surface Mount |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 1206 package suitable for surface mounting.
- Shielded design reduces electromagnetic interference effectively.
- Maximum DC current rating of 310mA ensures reliable performance.
- Dual inductor construction with ferrite core material.
- Wide operating temperature range from -40°C to 125°C.
- Complies with automotive standard AEC-Q200.
- RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 compliant.
- Inductance tolerance of ±25% guarantees consistent filtering.
Product Description
Wurth Elektronik 744232261 is a 1206 size shielded surface mount common mode line filter featuring a ferrite core and dual inductors with an inductance of 0.3μH and a tolerance of ±25%. This component is designed for high-frequency EMI noise suppression, making it ideal for applications involving USB 2.0, Firewire, LVDS, LAN, and other high-speed data lines where common mode noise reduction is critical.
The compact 3.2mm length, 1.8mm height, and 1.6mm depth ensure easy integration into densely packed circuit boards. The filter supports a maximum DC current of 310mA and a maximum DC resistance of 500mΩ, ensuring minimal signal loss while maintaining robust filtering. It is compliant with automotive standard AEC-Q200, and meets RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards, assuring high quality and reliability.
Constructed with moulded ferrite core material and dual inductor design, the WE-CNSW SMD series delivers balanced winding symmetry to minimize interference on high-speed signals. The surface mount termination style is optimized for reflow soldering, facilitating efficient assembly processes.
This component is suitable for demanding industrial, computer, telecommunications, and automotive applications where EMI control is essential. It suppresses common mode EMI noise effectively even at high frequencies, enhancing system stability and compliance.
Package content includes a single Wurth Elektronik 744232261 component supplied in tape and reel packaging to support automated pick-and-place manufacturing processes. Compact, shielded 1206 surface mount package suitable for various electronic designs.
Dual inductor construction with high-frequency EMI suppression capabilities. High maximum DC current capacity of 310mA. Reliable ferrite core material ensuring effective noise filtering. Compliance with leading global automotive and environmental standards.
Explore more high-quality electronic components at EnvMart for your surface mount and EMI filtering needs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 0.3μH with an inductance tolerance of ±25%.
The maximum DC current rating for this unit is 310mA, ensuring reliable performance in various applications.
The dimensions of this filter are 3.2mm in length, 1.8mm in height, and 1.6mm in depth.
It operates within a temperature range of -40°C to 125°C, making it suitable for a variety of environments.
This component complies with automotive standard AEC-Q200 and is also RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 compliant.
The termination style of this model is surface mount, optimized for reflow soldering.
It is supplied in tape and reel packaging, which supports automated pick-and-place manufacturing processes.
The core material used in this unit is ferrite, which contributes to its effective noise filtering capabilities.
This model features a dual inductor construction, enhancing its performance in filtering applications.
The maximum DC resistance is specified at 500mΩ, which helps minimize signal loss.
It is designed for high-frequency EMI noise suppression, making it ideal for applications involving USB 2.0, Firewire, LVDS, LAN, and other high-speed data lines.
This component belongs to the WE-CNSW SMD series, known for its EMI suppression capabilities.
