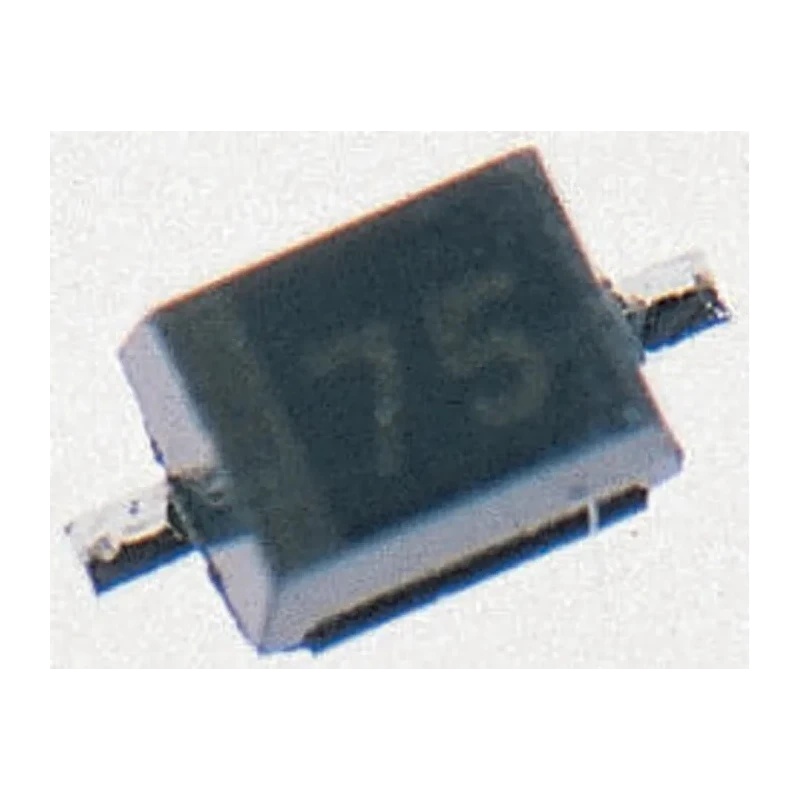

Nexperia 20 V 1 A Schottky Barrier Rectifier Surface Mount SOD-323F Package PMEG2010EJ,115
Specifications
| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 0.8mm |
| Length | 1.8mm |
| Model | PMEG2010EJ,115 |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | PMEG2010EJ |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323F |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | IEC 60134 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 9A |
| Maximum Forward Voltage Vf | 500mV |
| onsemi 30 V 1 A Schottky Barrier Diode Schottky 2-Pin SOD-323 NSR1020MW2T1GBrand | onsemi |
Key Features
- Maximum continuous forward current of 1 ampere for reliable circuit operation.
- Peak reverse repetitive voltage rating of 20 volts ensures effective blocking capability.
- Low maximum forward voltage of 500 millivolts minimizes power loss.
- High surge current capacity with a peak non-repetitive forward surge current of 9 amps.
- Low leakage current with a peak reverse current of 200 microamperes.
- Operating temperature range from -65°C up to 150°C for robust performance in various environments.
- Compact dimensions of 1.8 mm length, 1.35 mm width, and 0.8 mm height suitable for space-constrained PCB layouts.
- Complies with IEC 60134 standards and meets AEC-Q101 automotive quality requirements.
Product Description
Nexperia PMEG2010EJ,115 Schottky Barrier Rectifier is a high-efficiency, single diode designed for use in electronic circuits requiring low forward voltage drop and fast switching characteristics. Its surface mount SOD-323F package supports compact PCB layouts, making it ideal for dense electronic assemblies.
This diode delivers a maximum continuous forward current of 1 A with a peak repetitive reverse voltage of 20 V, suitable for power management, rectification, and protection in power supply designs. The device features a low maximum forward voltage of 500 mV, reducing conduction losses and improving overall energy efficiency. Its peak non-repetitive forward surge current rating of 9 A allows it to handle transient current spikes without damage.
The diode operates over a wide temperature range from -65°C to 150°C, ensuring reliability under demanding industrial and automotive conditions. With an extremely low leakage current of 200 µA at peak reverse voltage, it minimizes standby power consumption. Physical dimensions measuring 1.8 mm by 1.35 mm by 0.8 mm enable seamless integration in compact electronics.
Maximum continuous forward current of 1 A. Peak reverse repetitive voltage of 20 V. Low forward voltage drop of 500 mV reduces power dissipation. Peak non-repetitive forward surge current of 9 A for transient handling. Wide operating temperature range from -65°C to 150°C.
Surface mount package type SOD-323F for space-saving circuit design. Complies with IEC 60134 and meets AEC-Q101 automotive standards. Low leakage current of 200 µA enhances efficiency. Compact device dimensions for PCB layout flexibility.
This Nexperia diode is widely used in industrial power conversion, automotive electronics, communication devices, and consumer electronics requiring efficient and reliable rectification. Its quality and standards compliance make it suitable for both commercial and automotive applications.
EnvMart customers searching for robust Schottky diodes for power management are encouraged to consider this high-performance device under the model PMEG2010EJ,115 for their design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 ampere.
The dimensions of this diode are 1.8 mm in length, 1.35 mm in width, and 0.8 mm in height.
The maximum forward voltage drop is 500 millivolts.
The peak non-repetitive forward surge current rating is 9 amps.
The operating temperature range is from -65°C to 150°C.
It uses a surface mount SOD-323F package.
This diode complies with IEC 60134 standards and meets AEC-Q101 automotive quality requirements.
This model is suitable for power management, rectification, and protection in power supply designs, as well as for use in automotive electronics and communication devices.
The diode has a pin count of 2.
This device is classified as a Schottky rectifier.
