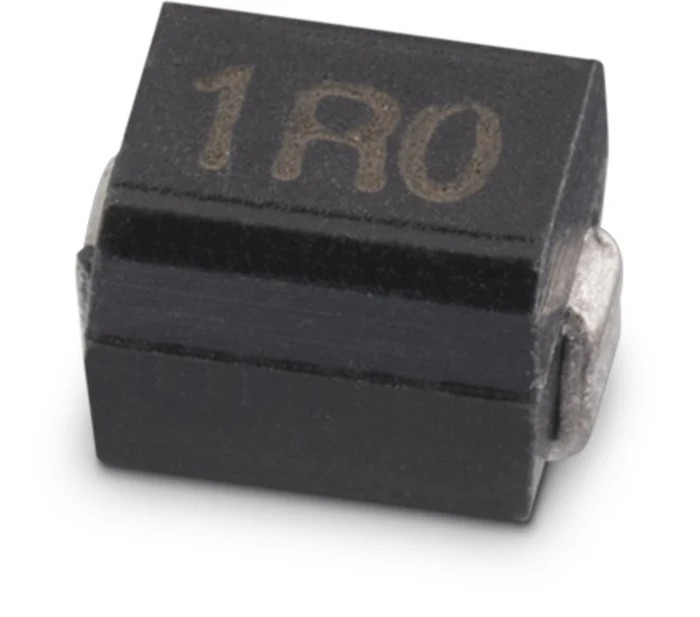

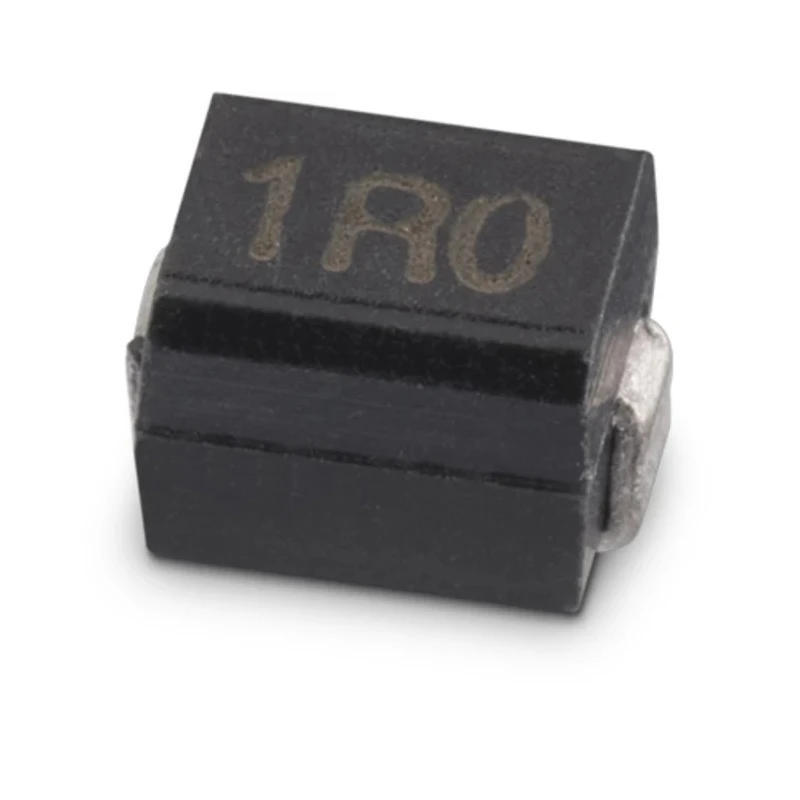

Wurth Elektronik WE-GF 1210 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 1μH ±10% 400mA 74476401
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | 74476401 |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | WE-GF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 400mA |
| Pin Count | 2 |
| Maximum DC Resistance | 700mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 380MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
Key Features
- Compact 1210 package with 3.2mm length and 2.2mm height.
- Maximum DC current rating of 400mA for reliable operation.
- Ferrite core construction provides excellent inductance stability.
- Maximum operating temperature of 105°C for automotive and industrial use.
- Wirewound construction ensures high quality and low DC resistance of 700mΩ.
- Non-shielded design suited for HF amplifiers, oscillators, and LC filter circuits.
- Meets REACH and RoHS standards for environmental compliance.
- Packaging in tape and reel format facilitates automated assembly.
Product Description
Wurth Elektronik 74476401 WE-GF 1210 is a high frequency unshielded wirewound surface mount inductor featuring a ferrite core and 1μH nominal inductance with ±10% tolerance. It supports a maximum DC current of 400mA and is designed for reliable performance over an operating temperature range from -40°C up to 105°C. The compact 1210 package size measures 3.2mm in length, 2.2mm in height, and 2.5mm in depth, suitable for space-constrained electronic circuits.
This wirewound inductor offers low DC resistance of 700mΩ, which minimizes power losses and allows efficient current flow. Its unshielded design makes it ideal for integration in high frequency (HF) amplifiers, oscillators, transponders, LC filter circuits, and tuners. The ferrite core ensures stable inductance at high frequencies up to a maximum self-resonant frequency of 380MHz with a minimum quality factor of 30.
The inductor meets important environmental and safety standards including REACH and RoHS, facilitating its use in automotive and industrial electronic assemblies. Supplied on tape and reel packaging, it is optimized for automated pick-and-place manufacturing processes, enhancing production efficiency.
Typical applications include power & connector components in electronic devices, signal processing, and communication equipment requiring precise inductance characteristics in surface mount technology (SMT) formats.
Compact 1210 surface mount package. 1μH inductance with ±10% tolerance. Max DC current 400mA for sustained usage. Wirewound construction with ferrite core. Operating temperature -40°C to 105°C. Low DC resistance of 700mΩ.
Meets REACH and RoHS environmental standards. Supplied in tape & reel packaging. Explore more Wurth Elektronik components and Surface Mount Inductors in the Electronics Components category at EnvMart for your precise electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 1μH with a tolerance of ±10%.
It has a maximum DC current rating of 400mA, ensuring reliable operation in various applications.
The inductor measures 3.2mm in length, 2.2mm in height, and 2.5mm in depth, making it suitable for compact electronic circuits.
The operating temperature range is from -40°C to 105°C, allowing for use in automotive and industrial environments.
It features a ferrite core, which provides excellent inductance stability at high frequencies.
The maximum self-resonant frequency is 380MHz, with a minimum quality factor of 30, suitable for high-frequency applications.
The wirewound construction results in a low DC resistance of 700mΩ, minimizing power losses.
It is supplied in tape and reel packaging, which facilitates automated assembly processes.
It meets REACH and RoHS standards, ensuring environmental compliance for use in electronic assemblies.
This inductor is ideal for use in high-frequency amplifiers, oscillators, LC filter circuits, and communication equipment.
The termination style is surface mount, which is common for modern electronic circuit designs.
This model has a pin count of 2, which is typical for surface mount inductors.
