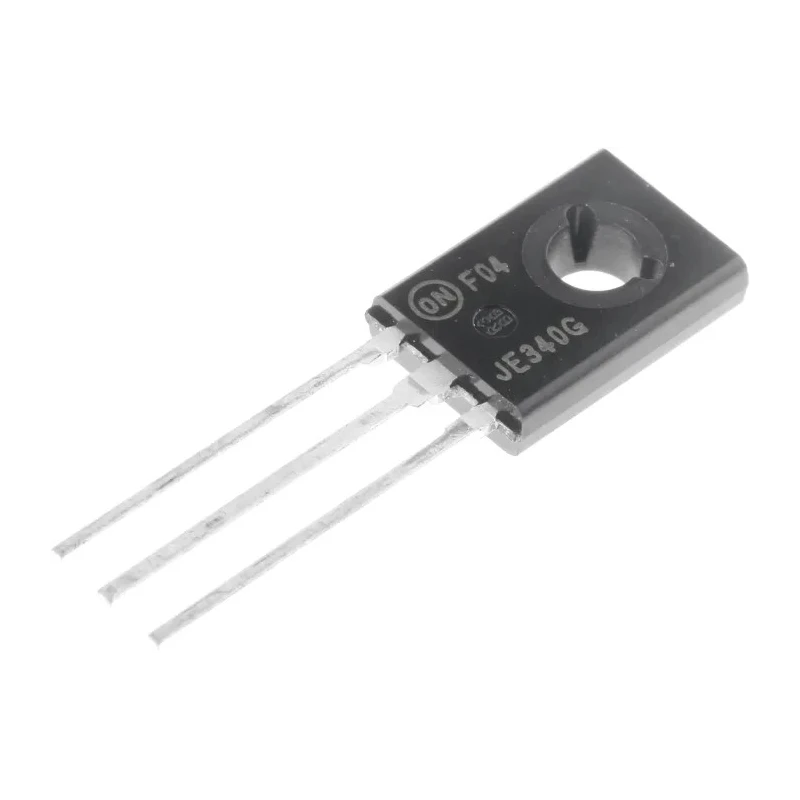

onsemi Transistor, 500 mA NPN, 300 V, 3-Pin TO-225, Through Hole Mount, Single Configuration MJE340G

onsemi MJE340G Transistor is a high-performance NPN bipolar transistor designed for applications requiring moderate current capacity and high voltage tolerance. Rated for a maximum DC collector current of 500 mA and a collector-emitter voltage of 300 V, this transistor provides reliable switching and amplification capabilities. The device comes in a TO-225 3-pin package with through-hole mounting style, making it suitable for a wide range of PCB mounting needs in industrial and electronic equipment.

This transistor features a single configuration with NPN polarity and offers a minimum DC current gain of 30, ensuring efficient amplification in analog and digital circuits. It supports a maximum power dissipation of 20 W, allowing stable operation under high power loads. The emitter-base voltage maximum of 3 V provides operational reliability and protection from voltage spikes.

The operating temperature range spans from -65°C up to 150°C, ensuring durability in harsh environmental conditions commonly encountered in industrial, automotive, and laboratory applications. The device's compact size, with dimensions of 7.8 mm length, 3 mm width, and 11.04 mm height, enables use in space-constrained designs.

This transistor is widely used in power switching, amplifier circuits, and other discrete semiconductor applications requiring robust performance. It is a reliable choice for engineers and designers working in electronics component development or repair. The MJE340G model from onsemi is not automotive qualified to AEC-Q101 but meets general industrial standards for Bipolar Transistors.

Maximum DC collector current of 500 mA ensures moderate power handling capacity. Collector-emitter voltage rating up to 300 V for high-voltage applications. Single transistor configuration with NPN polarity suitable for switching and amplification.

Mount type is through hole, facilitating easy PCB installation. Maximum power dissipation of 20 W supports efficient thermal performance. Wide operating temperature range from -65°C to 150°C for robust industrial use. Minimum DC current gain (hFE) is 30, guaranteeing adequate amplification factor.

Compact physical dimensions with length 7.8 mm, width 3 mm, and height 11.04 mm. Emitter-base voltage maximum of 3 V ensures device protection under normal operation. Pin count is 3, matching the TO-225 package specification.
