TDK Multilayer Ceramic Capacitor 4.7 nF 50V DC ±10% Surface Mount CGA3E2X7R1H472K080AA

The TDK CGA3E2X7R1H472K080AA Multilayer Ceramic Capacitor is a compact and highly reliable electronic component designed for surface mount applications in professional circuit designs. This component features a capacitance of 4.7 nF, a tolerance of ±10%, and operates at a voltage rating of 50V DC. Its X7R dielectric material ensures stability across a wide temperature range, making it suitable for a variety of demanding industrial and automotive environments.

The capacitor’s monolithic construction with multiple alternating layers of dielectric and conductive materials delivers superior mechanical strength and reliability, minimizing failure risk in assembled PCBs. The robust performance parameters make it an optimal choice for automotive electronic devices, such as engine control units and sensor modules, as well as battery line smoothing and precision LC resonance circuits.

The CGA3E2X7R1H472K080AA supports automotive standard AEC-Q200, ensuring resilience for environments subject to temperature extremes and mechanical stress. Its low equivalent series resistance (ESR) and low equivalent series inductance (ESL) enable better circuit frequency characteristics, low self-heating, and high ripple resistance. As a Class II suppression device, it eliminates polarity concerns and supports automated placement owing to its tape & reel packaging.

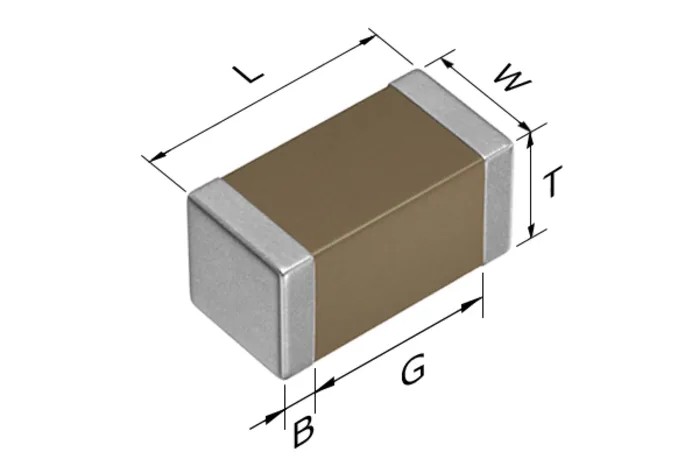

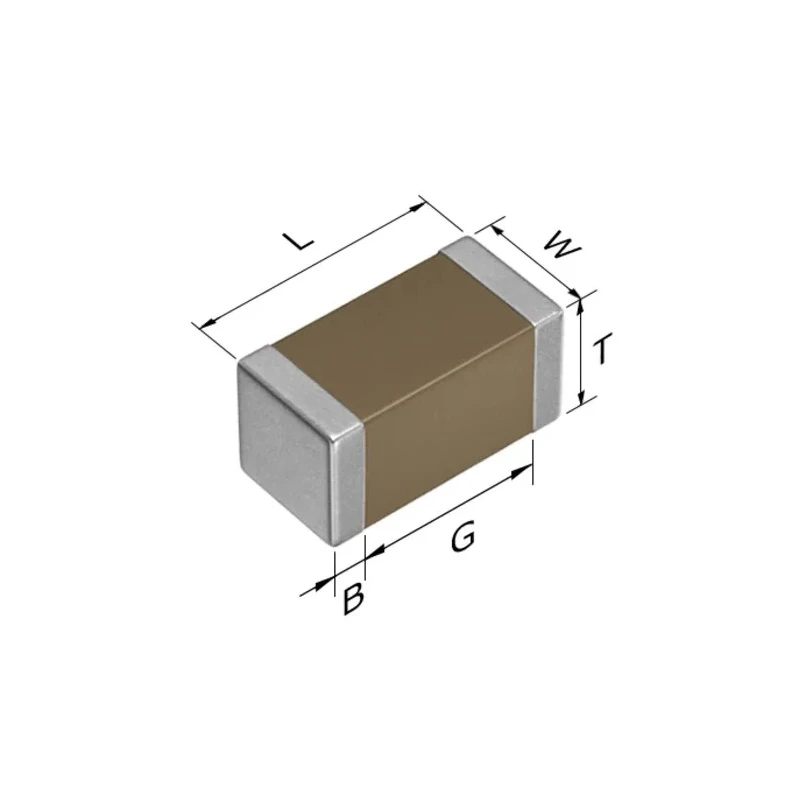

Dimensioned at 1.6 mm length and 0.8 mm width and height (0603 package), this capacitor fits densely packed circuit layouts, contributing to miniaturization of devices without compromising safety or reliability. It is terminated for surface mounting, allowing easy integration into high-volume manufacturing processes.

Industries utilizing this capacitor include automotive electronics, industrial machinery, consumer electronics, and laboratory instrumentation, where precision and durability are paramount. Applications extend to LC resonance circuits that require consistent performance, as well as electrical circuits needing high reliability under variable environmental conditions.

TDK’s CGA series capacitors are recognized for their advanced multilayer design, offering an expanded range and improved properties when compared to traditional film or electrolytic capacitors. Engineers and manufacturers can explore further products within the Multilayer Ceramic Capacitor category and discover TDK’s solutions for advanced electronic assembly via EnvMart platform.
