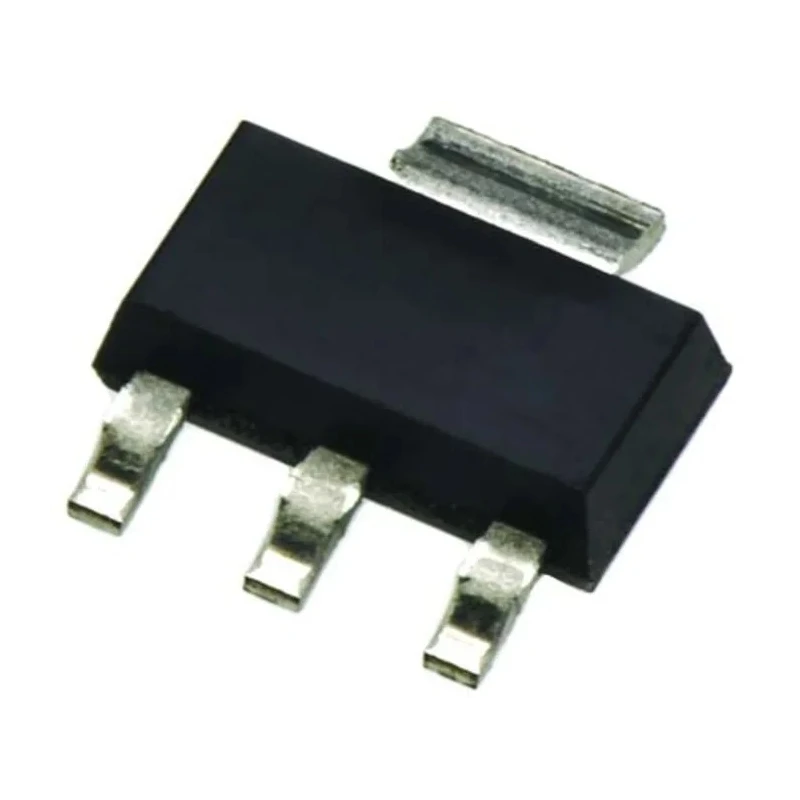

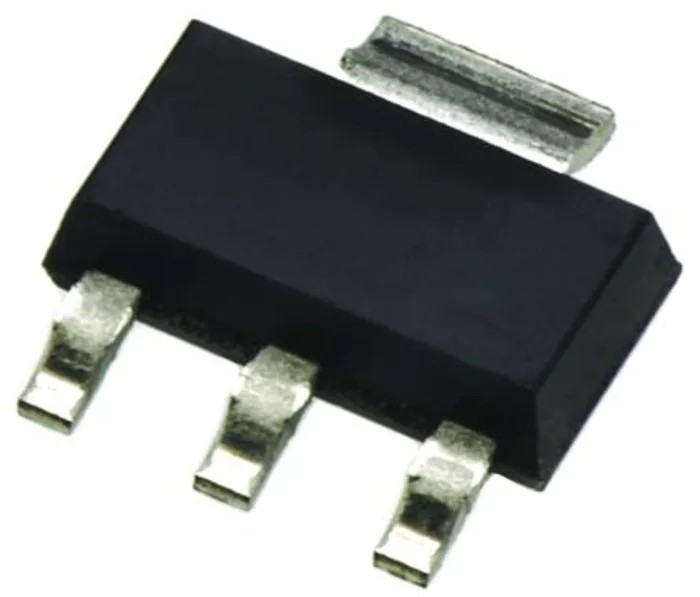

onsemi Bipolar Transistor PNP 1 A, 20 V, Surface Mount SOT-223 Package BCP69T1G

onsemi BCP69T1G is a bipolar PNP transistor designed for general-purpose applications, offering reliable switching and amplification capabilities. This transistor supports a maximum DC collector current of 1 ampere and a collector-emitter voltage of 20 volts. It is housed in a compact 4-pin SOT-223 surface mount package, facilitating easy integration in electronic circuits with limited space.

The device features a maximum power dissipation of 1.5 watts, ensuring efficient operation without overheating under normal usage conditions. It delivers a minimum DC current gain of 50, enabling effective signal amplification in various electronic applications. The transistor is suitable for operation in environments ranging from extreme cold at -65°C to a maximum temperature of 150°C, making it versatile across industrial and commercial settings.

With a maximum transition frequency of 60 MHz, the BCP69T1G supports applications that require moderate frequency switching and amplification. It is compliant with the AEC-Q101 automotive standard, certifying it for use in automotive electronics where high reliability and stringent quality are mandatory.

This transistor is ideal for use in power management circuits, signal amplification, and switching applications across industrial, automotive, and consumer electronics. Its surface mount package supports automated PCB assembly processes, making it suitable for high-volume manufacturing environments.

Capable of handling a maximum DC collector current of 1 ampere. Maximum collector-emitter voltage rating of 20 volts. Designed with a 4-pin SOT-223 surface mount package for compact applications. Maximum power dissipation of 1.5 watts for reliable thermal management.

Equipped with a minimum DC current gain (hFE) of 50 for efficient amplification. Operating temperature range from -65°C to 150°C for robust performance. Maximum transition frequency of 60 MHz suitable for moderate-frequency applications.

Automotive standard compliant with AEC-Q101 certification ensuring quality and reliability. Explore more high-quality Bipolar Transistors and semiconductor components at EnvMart for your electronic design and manufacturing requirements.
