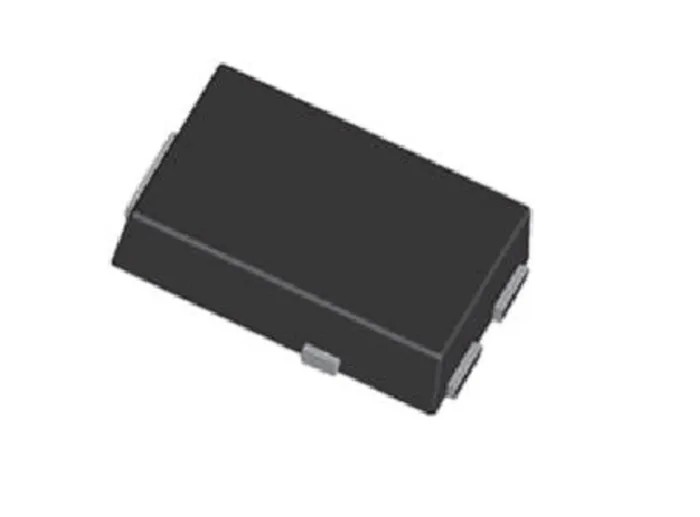

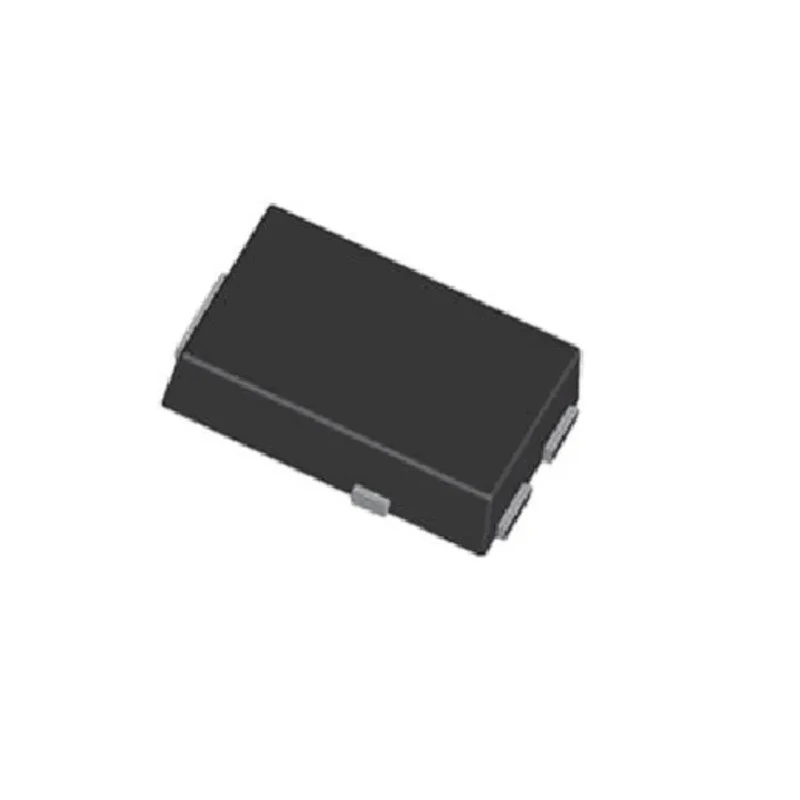

Vishay Schottky Barrier Diode 150 V 10 A Surface Mount SMPC V10PM153HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | V10PM153HM3/H |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 150°C |
| Package Type | SMPC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 180A |
| Maximum Forward Voltage Vf | 0.61V |
Key Features
- High current density trench MOS barrier Schottky technology for enhanced performance.
- Low forward voltage drop minimizes power losses and improves efficiency.
- Typical profile height of 1.1 mm for compact surface mounting.
- Maximum continuous forward current of 10 A and peak forward surge current up to 180 A.
- Operating temperature range from -65°C to 150°C supports wide industrial applications.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Suitable for use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection.
- Package type SMPC with eSMP series offering reliable surface mounting solution.
Product Description
Vishay V10PM153HM3/H Schottky Barrier Diode is designed for industrial semiconductor applications requiring robust, efficient rectification performance in a compact surface mount package (SMPC). It utilizes trench MOS barrier Schottky technology providing low forward voltage drop and high current handling capability of 10 A continuous, with surge tolerance of 180 A peak. This diode operates reliably within a temperature range of -65°C up to 150°C, making it ideal for demanding environments.
The diode’s maximum peak repetitive reverse voltage is 150 V, ensuring suitability for low voltage power conversion circuits. Its single diode configuration supports efficient polarity protection, freewheeling diode roles, and high frequency inverter applications in consumer electronics, industrial machinery, automotive electronics, and power supply modules.
The device complies with RoHS environmental standards, does not support automotive quality standard in this variant, and meets MSL level 1 according to J-STD-020 guidelines for moisture sensitivity level. Package dimensions contribute to a very low profile design of approximately 1.1 mm height, compatible with modern surface mount technology on printed circuit boards.
This Vishay Schottky diode is widely used in industrial sectors such as power electronics, manufacturing equipment, HVAC controls, and renewable energy systems, providing efficient, high-speed switching and power rectification. The reliable eSMP series ensures high performance and durability under thermal and electrical stress conditions.
High current density trench MOS barrier Schottky design. Compact SMPC package for surface mounting. Low forward voltage drop ensures energy efficiency. Wide operating temperature range from -65°C to 150°C. Maximum forward voltage: 0.61 V.
Peak surge current capability of 180 A. Meets RoHS compliance standards. Ideal for freewheeling and DC/DC converter applications. Single diode configuration for various power electronic circuits. Explore more Vishay semiconductors and Schottky Diodes on EnvMart for advanced industrial and commercial electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 10 A.
The peak reverse repetitive voltage rating for this model is 150 V.
This diode operates within a temperature range of -65°C to 150°C.
The package type of this diode is SMPC, which is designed for surface mounting.
The peak non-repetitive forward surge current capability is up to 180 A.
The maximum forward voltage drop of this diode is 0.61 V.
This model uses a single diode configuration.
Yes, this diode meets RoHS compliance standards.
This diode is suitable for applications such as freewheeling, DC/DC converters, and polarity protection.
The typical profile height of the package is approximately 1.1 mm.
The country of origin for this diode is India.
This diode belongs to the eSMP series.
