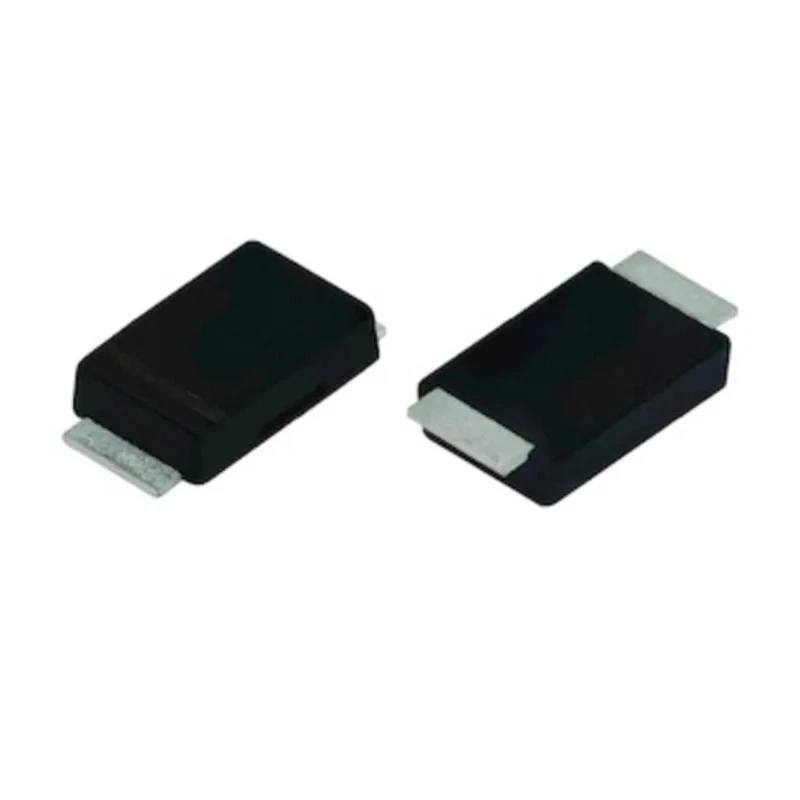

Vishay Schottky Barrier Diode 120 V 2 A Surface Mount DO-221AD VSS8D2M12HM3/H
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.7mm |
| Length | 5mm |
| Model | VSS8D2M12HM3/H |
| Mount Type | Surface |
| Series | VSS8D2M12 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221AD |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 120V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.59V |
Key Features
- The diode features a maximum continuous forward current of 2 amperes.
- It supports a peak reverse repetitive voltage of 120 volts.
- Low forward voltage drop of 0.59 V enhances efficiency.
- Operates reliably between temperatures of -40°C to 175°C.
- Offers a peak non-repetitive forward surge current capacity of 50 amperes.
- Complies with RoHS and automotive AEC-Q101 standards.
- Compact dimensions with 5 mm length and 2.7 mm height.
- Single diode configuration with 2 pins for easy PCB integration.
Product Description
The Vishay VSS8D2M12HM3/H Schottky Barrier Diode is a high-performance semiconductor device intended for surface mounting applications requiring efficient switching at high frequencies. Its robust DO-221AD package supports a maximum continuous forward current of 2 amperes and a peak reverse repetitive voltage of 120 volts, making it suitable for power rectification tasks in electronic circuits.
Featuring a low forward voltage drop of 0.59 volts, this diode minimizes power losses and improves overall circuit efficiency. It is engineered to operate reliably within a wide temperature range from -40°C to 175°C, supporting diverse industrial, automotive, and commercial electronic systems.
The device supports a peak non-repetitive forward surge current of 50 amperes, ensuring durability under transient load conditions. Its compact physical dimensions of 5 mm in length and 2.7 mm in height facilitate integration into high-density PCB designs.
This model is RoHS compliant and meets the automotive industry standard AEC-Q101, underscoring its quality and reliability for automotive and other high-demand environments. The single diode configuration with 2-pin connections provides straightforward circuit design flexibility.
The diode's surface mounting capability supports automated assembly processes. Low leakage current characteristics ensure efficient operation in DC/DC converters and polarity protection circuits. Ideal for use in high-frequency inverters, freewheeling applications, and switching power supplies.
The robust package design offers mechanical and thermal stability essential for demanding electronic applications. Manufactured in China adhering to strict quality controls to guarantee consistent performance.
Commonly applied in industrial electronics, automotive electronics, power management assemblies, and energy conversion systems, the VSS8D2M12HM3/H diode from Vishay represents a reliable choice for engineers and technicians. Explore the variety of Vishay components at EnvMart for your electronic component needs and benefit from comprehensive technical resources and support.
Explore more products in our Schottky Diode category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VSS8D2M12HM3/H Schottky Barrier Diode is 2 amperes.
This model supports a peak reverse repetitive voltage of 120 volts.
The diode has a low forward voltage drop of 0.59 volts, which enhances efficiency in circuits.
It operates reliably between -40°C and 175°C, making it suitable for various applications.
The diode can handle a peak non-repetitive forward surge current of 50 amperes.
The diode has compact dimensions of 5 mm in length and 2.7 mm in height.
It is packaged in a DO-221AD surface mount configuration, suitable for PCB integration.
This model features a single diode configuration with 2 pins.
Yes, it complies with RoHS and the automotive AEC-Q101 standards.
It is commonly applied in industrial electronics, automotive electronics, power management assemblies, and energy conversion systems.
Yes, it is intended for efficient switching at high frequencies, making it suitable for high-frequency inverters and switching power supplies.
The Vishay VSS8D2M12HM3/H diode is manufactured in China under strict quality controls.
