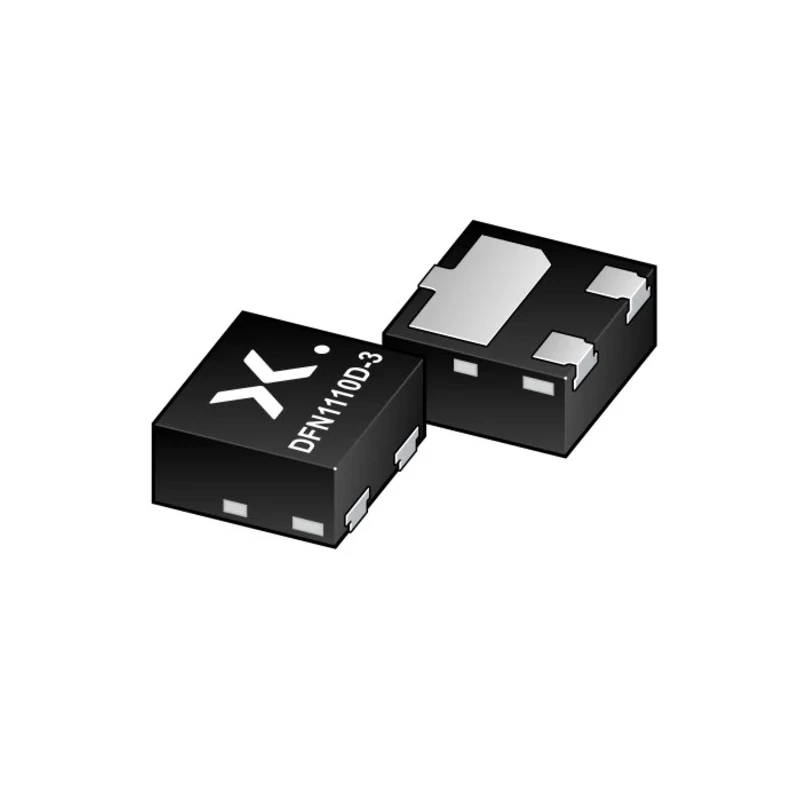

Nexperia Resistor-Equipped Transistor 100 mA NPN 50 V 3-Pin DFN1110D-3 PDTC124XQB-QZ

The Nexperia PDTC124XQB-QZ is a resistor-equipped NPN transistor designed for efficient switching applications. Housed in an ultra-compact DFN1110D-3 surface mount device, it provides a maximum collector current of 100 mA and a collector-emitter voltage rating of 50 V. This device features built-in resistors that simplify circuit design and reduce the number of external components needed, resulting in streamlined manufacturing and lower assembly costs.

Its low profile package with a height of 0.5 mm makes it suitable for applications where PCB space is limited. The transistor supports a wide operating temperature range from -55°C to 150°C, ensuring reliable performance in harsh environments. With a transition frequency of 230 MHz, it supports fast switching speeds ideal for digital circuits.

This transistor conforms to RoHS compliance and AEC-Q101 automotive standard, ensuring high reliability for automotive and industrial applications. Its integrated resistor design also reduces pick and place costs and facilitates automatic optical inspection (AOI) of solder joints.

Typical applications include controlling IC inputs, switching loads, and serving as a cost-saving alternative to the BC857 transistor series in digital electronics. It is widely used in industrial, automotive, and consumer electronic devices where efficient transistor switching is required.

Maximum DC collector current of 100 mA for reliable switching. Maximum collector-emitter voltage of 50 V suitable for digital applications. Compact DFN1110D-3 surface mount package with 0.5 mm height. Built-in resistors simplify circuit design and reduce component count.

Meets RoHS and AEC-Q101 automotive standards for quality assurance. Wide operating temperature range from -55°C to 150°C. High transition frequency of 230 MHz for fast switching. Low package height enables space-saving PCB layouts.

Cost-effective alternative to BC857 series transistors in digital circuits. Explore more Nexperia Bipolar Transistors and other semiconductor products at EnvMart for your industrial and electronic needs.
