Nexperia Resistor-Equipped Transistor 100 mA NPN 50 V 3-Pin DFN1412D-3 PDTC114EQC-QZ

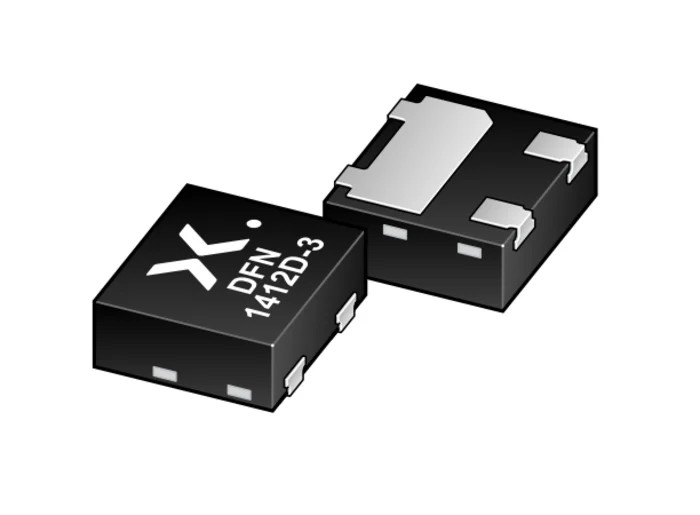

The Nexperia PDTC114EQC-QZ is a resistor-equipped NPN transistor designed for surface mount applications, utilizing the ultra-compact DFN1412D-3 (SOT8009) package with side-wettable flanks and a low profile of 0.5 mm. It supports a maximum DC collector current of 100 mA and collector-emitter voltage of 50 V, making it ideal for compact, high-efficiency circuit designs.

The integrated resistors reduce the overall component count and simplify the PCB layout, lowering manufacturing costs and improving reliability. Its surface mount configuration ensures easy placement and solder joint inspection via automatic optical inspection (AOI) systems.

This transistor is broadly applicable in digital applications, controlling integrated circuit inputs and switching loads, particularly where space constraints and cost savings are critical. It presents a cost-effective alternative to the BC857 series transistors.

Key parameters include a minimum DC current gain of 30, a maximum emitter-base voltage of 10 V, and a transition frequency up to 250 MHz, ensuring robust performance in fast switching scenarios. The device is compliant with RoHS and meets the automotive-grade AEC-Q101 standard, guaranteeing high reliability for automotive and industrial use.

Operating safely across a wide temperature range from -55°C to 150°C, this transistor suits industrial, automotive, consumer electronics, and communication systems. Its leadless SMD package supports automated manufacturing processes, improving throughput and consistency.

Ultra-small leadless surface mount design reduces PCB space. Built-in resistors simplify circuit design and reduce component count. Capable of handling up to 100 mA collector current. Operates at maximum collector-emitter voltage of 50 V.

Suitable for automatic optical inspection (AOI) of solder joints. Low package height at 0.5 mm for compact applications. Supports digital applications and switching load controls. Complies with RoHS and automotive AEC-Q101 standards.

Wide operating temperature range from -55°C to 150°C.

This product is essential for electronics engineers designing compact and efficient bipolar transistor circuits. Explore EnvMart's semiconductor catalog for additional components spanning power transistors, diodes, and integrated circuits to complement your designs.
