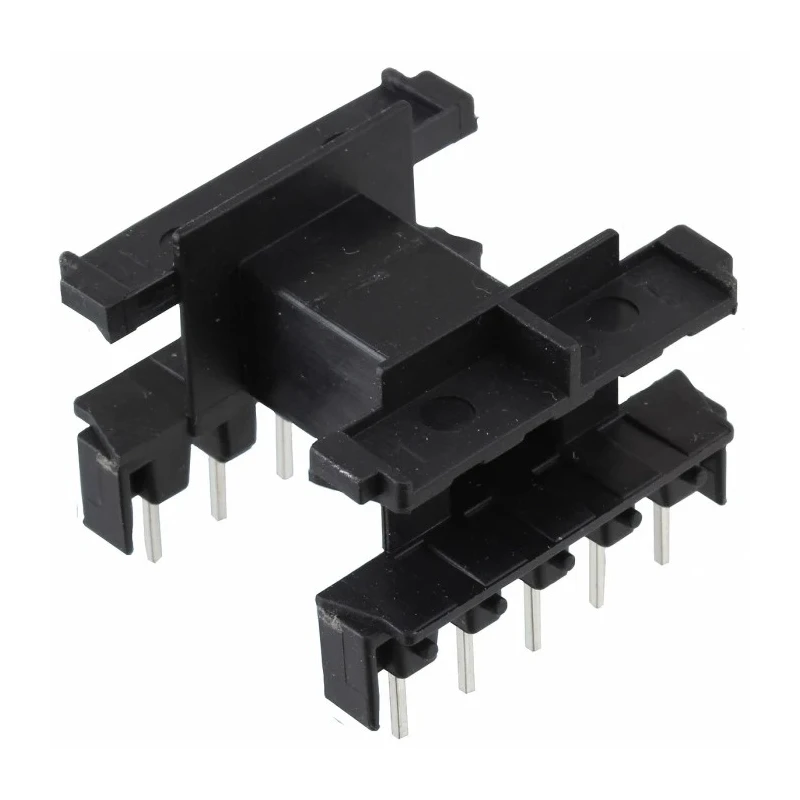

TDK Horizontal Coil Former for E 25/13/7 Core Fibreglass Reinforced PolyTerephthalate B66208B1110T001
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Material | Fibreglass Reinforced PolyTerephthalate |
| Model | B66208B1110T001 |
| Overall Length | 27.5mm |
| Overall Width | 28mm |
| Kit Type | Horizontal Coil Former |
| For Use With | E 25/13/7 Core |
| Standards/Approvals | RoHS |
| Overall Depth | 20mm |
Key Features
- Constructed from fibreglass reinforced polyterephthalate for durability.
- Meets RoHS standards ensuring compliance with environmental regulations.
- Overall length measures 27.5 mm for precise fitment.
- Compact overall width of 28 mm supports efficient coil winding.
- Depth dimension of 20 mm optimizes coil former volume.
- Ideal for use in power supply transformers and related electrical assemblies.
- Provides high temperature resistance with UL 94 V-0 insulation rating.
- Solderability conforms to IEC 60068-2-20 for reliable assembly.
Product Description
TDK B66208B1110T001 is a horizontal coil former specifically designed for use with E 25/13/7 cores in transformer manufacturing and repair.
Manufactured from fibreglass reinforced polyterephthalate, this coil former offers excellent mechanical strength and high temperature endurance with a maximum operating temperature of 155°C. It complies with UL 94 V-0 insulation rating and meets RoHS environmental standards.
The coil former features an overall length of 27.5 mm, overall width of 28 mm, and depth of 20 mm, providing an optimal form factor for efficient coil winding and stable transformer assembly.
Its solderability adheres to IEC 60068-2-20 standards, ensuring dependable connections in electrical assemblies. This coil former is ideal for use in power supplies, transformers, and various industrial electrical equipment where precise coil form and electrical safety are critical.
Constructed with durable fibreglass reinforced polyterephthalate material. Complies with RoHS for environmental safety. Designed for E 25/13/7 core compatibility with precise dimensions. High temperature resistance up to 155°C enhances reliability.
Solder-friendly design per IEC 60068-2-20 ensures quality assembly. Compact size supports efficient transformer manufacturing processes. Suitable for industrial, laboratory, and commercial electrical applications. Explore the category for additional Transformer Accessories and components for your manufacturing and repair needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an overall length of 27.5 mm, an overall width of 28 mm, and a depth of 20 mm, providing an optimal form factor for efficient coil winding.
It is constructed from fibreglass reinforced polyterephthalate, which offers excellent mechanical strength and high temperature endurance.
The maximum operating temperature is 155°C, enhancing its reliability in high-temperature applications.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
It complies with the UL 94 V-0 insulation rating, indicating its suitability for electrical safety applications.
This coil former is specifically designed for use with E 25/13/7 cores in transformer manufacturing and repair.
The solderability conforms to IEC 60068-2-20 standards, ensuring reliable assembly in electrical applications.
It is categorized as a horizontal coil former, which is an accessory used in transformer manufacturing.
It is ideal for use in power supply transformers and various industrial electrical equipment where precise coil form and electrical safety are critical.
The country of origin for this product is India.
The overall depth of this model is 20 mm, which optimizes the coil former volume for efficient use.
The compact size supports efficient transformer manufacturing processes, making it easier to work with in various applications.
