Nexperia Resistor-Equipped Transistor PNP, -100 mA, -50 V, 3-Pin DFN1412D-3 PDTA114YQCZ

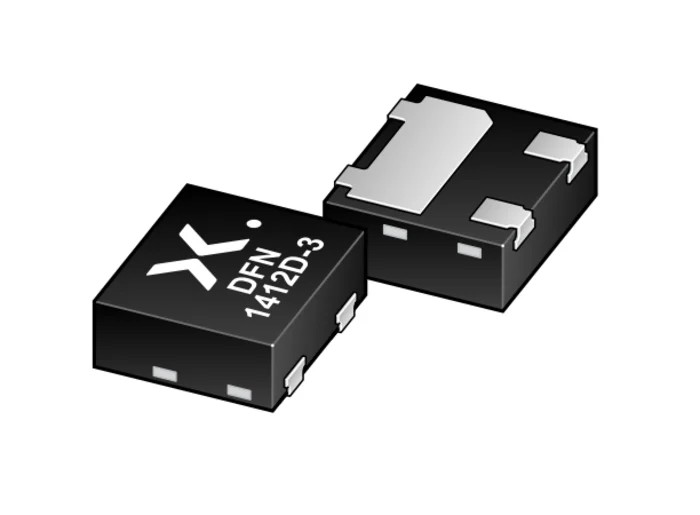

The Nexperia PDTA114YQCZ resistor-equipped transistor is a PNP bipolar transistor integrated with resistors, housed in an ultra-compact DFN1412D-3 (SOT8009) leadless surface mounted device. It features plastic packaging with side-wettable flanks facilitating automatic optical inspection of solder joints.

This transistor supports a maximum DC collector current of 100 mA and a collector-emitter voltage of 50 V, making it suitable for various digital switching and control applications. The device includes built-in resistors, which simplifies circuit design by reducing the number of discrete components and lowering pick and place costs.

The transmitter operates efficiently across a wide temperature range from -55°C minimum to 150°C maximum, ensuring reliable performance in harsh environmental conditions. It is fully compliant with RoHS directives and meets the automotive AEC-Q101 standard, highlighting its quality and industry acceptability for automotive electronics.

Its low-profile package height of 0.5 mm allows for compact PCB layouts where space-saving is critical. Applications include controlling IC inputs, switching loads, and serving as a cost-saving alternative to the BC857 series in digital electronics.

The device's pin count is three, with a PNP transistor configuration in a convenient surface mount package, making it ideal for automated production lines and modern electronic manufacturing.

Maximum DC collector current of 100 mA. Maximum collector-emitter voltage of 50 V. Built-in resistors for simplified circuitry. Surface mount leadless DFN1412D-3 package with side-wettable flanks. Operating temperature range from -55°C to 150°C.

Compliant with RoHS and AEC-Q101 automotive standard. Low profile height of 0.5 mm suitable for space-constrained designs. Cost saving alternative to BC857 series in digital applications. Pin count: 3 with PNP polarity.

This transistor is well-suited to industrial, automotive, and consumer electronic applications that require reliable, compact, and cost-effective switching components. It supports digital logic switching and controlling IC inputs, making it a versatile component in electronics manufacturing and design.
