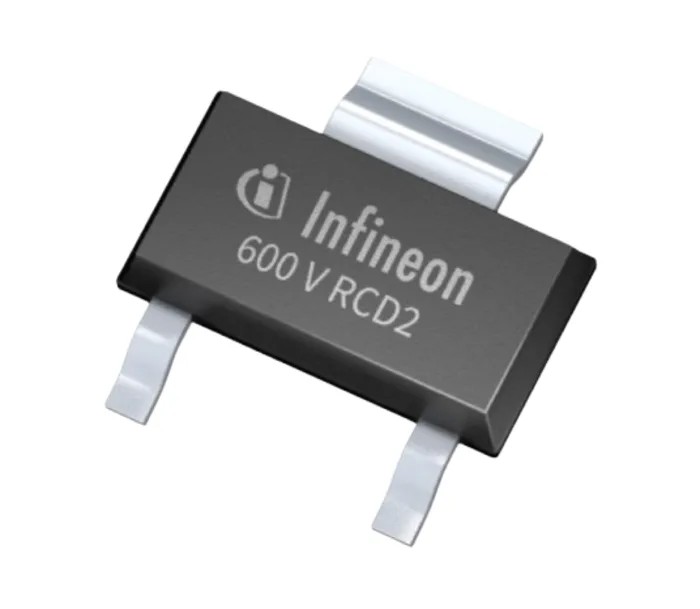

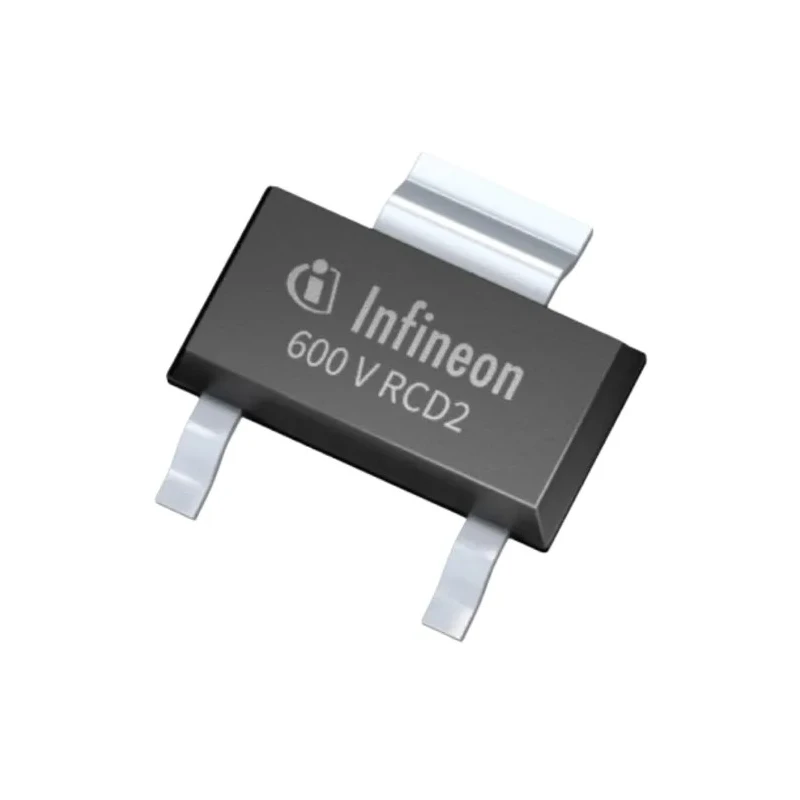

Infineon Type N-Channel IGBT with integrated Diode 1 A 600 V 3-Pin PG-SOT223 IKN01N60RC2ATMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | IKN01N60RC2ATMA1 |
| Series | 600 V Reverse Conducting Drive 2 |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-SOT223 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 1A |
| Maximum Collector Emitter Voltage Vceo | 600V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.3V |
| Channel Type | Type N |
| Maximum Power Dissipation Pd | 5.1W |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- Provides reliable high-voltage switching performance up to 600 V.
- Integrated diode reduces circuit complexity and improves efficiency.
- Operates within a wide temperature range from -40°C to 150°C for durability.
- Compact PG-SOT223 surface mount package suitable for space-constrained designs.
- Maximum power dissipation of 5.1 W supports robust operation without overheating.
- Capable of switching frequencies between 1 to 20 kHz for versatile applications.
- Humidity resistant design enhances reliability in harsh environmental conditions.
- Supports applications in home appliances, ceiling fans, air conditioners, and automation systems.
Product Description
Infineon IKN01N60RC2ATMA1 Type N-Channel IGBT with integrated Diode is a high-performance discrete semiconductor device designed for robust switching in high-voltage circuits. It features a maximum continuous collector current of 1 A and withstands collector-emitter voltages up to 600 V. Its 3-pin PG-SOT223 compact surface mount package (6.7 x 3.7 x 1.8 mm) is ideal for densely packed PCBs and space-limited applications.
This device supports operating temperatures from -40°C to 150°C and delivers a maximum power dissipation of 5.1 W, providing reliable thermal management for prolonged usage. The integrated diode simplifies circuit design and improves efficiency, making it suitable for a variety of industrial and consumer electronics.
Its switching frequency range from 1 to 20 kHz allows compatibility with many control systems. Additionally, the humidity-resistant design ensures dependable outdoor and indoor usage. The device's short-circuit tolerance and maximum gate-emitter voltage rating of 20 V make it suitable for automation and power management applications.
Typical uses include ceiling fan speed controls, countertop kitchen appliances, residential air conditioning temperature regulation, washing machine power switching, and kitchen hood air quality management. These applications benefit from the device's compactness, thermal robustness, and integrated diode feature.
Provides reliable high-voltage switching performance up to 600 V. Integrated diode reduces circuit complexity and improves efficiency. Operates within a wide temperature range from -40°C to 150°C for durability. Compact PG-SOT223 surface mount package suitable for space-constrained designs.
Maximum power dissipation of 5.1 W supports robust operation without overheating. Capable of switching frequencies between 1 to 20 kHz for versatile applications. Humidity resistant design enhances reliability in harsh environmental conditions.
Supports applications in home appliances, ceiling fans, air conditioners, and automation systems.
Industrial, laboratory, automation, HVAC, and manufacturing sectors can rely on this Infineon IGBT to deliver efficient and robust switching performance. Its extensive datasheets and PSpice models assist circuit designers in effective system integration. Explore more semiconductor components within EnvMart for complementary products and solutions.
Explore more products in our IGBTs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector-emitter voltage for this IGBT is 600 V.
This model has a maximum continuous collector current rating of 1 A.
The maximum power dissipation for this IGBT is 5.1 W.
It operates within a temperature range of -40°C to 150°C.
The IGBT comes in a PG-SOT223 surface mount package.
The maximum gate-emitter voltage rating is 20 V.
It is capable of switching frequencies between 1 to 20 kHz.
The integrated diode reduces circuit complexity and improves efficiency.
Typical applications include ceiling fan speed controls, air conditioning, and kitchen appliances.
This model is RoHS compliant, ensuring it meets specific environmental standards.
The maximum collector-emitter saturation voltage is 2.3 V.
The humidity-resistant design enhances reliability in harsh environmental conditions.
