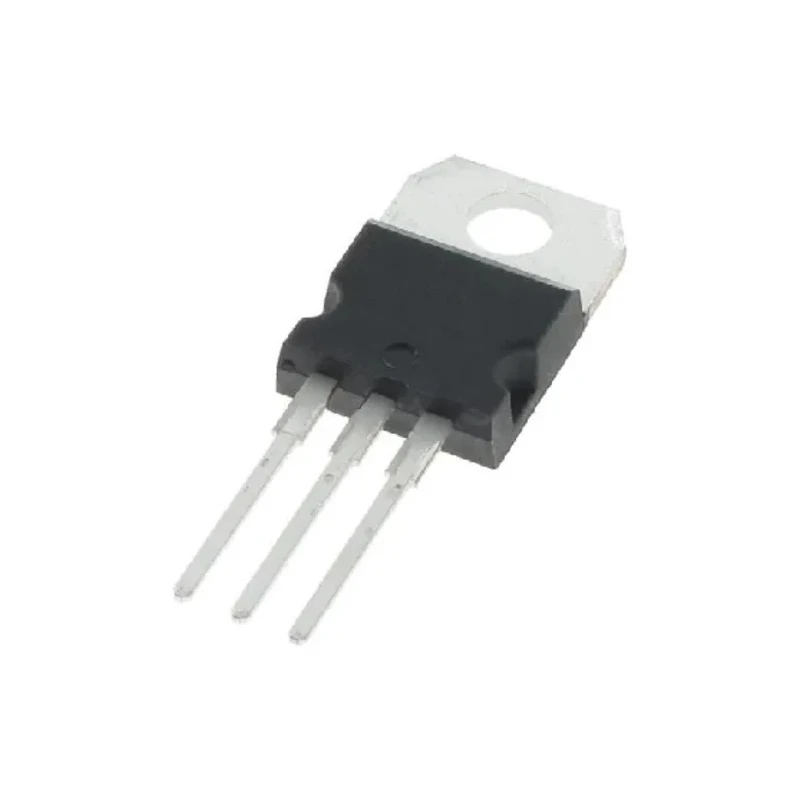

STMicroelectronics Type N-Channel MOSFET, 110 A, 100 V, 3-Pin TO-220 STP150N10F7AG

The STMicroelectronics STP150N10F7AG is a high-performance Type N-Channel Power MOSFET designed with STripFET F7 technology, offering a maximum continuous drain current of 110 A and a maximum drain-source voltage of 100 V. Its 3-pin TO-220 package ensures reliable through-hole mounting, suitable for robust industrial, automotive, and electronic applications.

This MOSFET features an enhanced trench gate structure that delivers very low on-state resistance and reduces internal capacitance and gate charge, enabling faster and more efficient switching. With a maximum power dissipation capacity of 250 W and an operating temperature range from -55°C to 175°C, this device is engineered to withstand demanding environments and high thermal loads.

The component includes a maximum gate-source voltage of 20 V and a forward voltage of 1.2 V, ensuring stable operation. It is 100% avalanche rated, enhancing its robustness and reliability in switching applications where performance under transient conditions is critical.

Applications include automotive systems, power management circuits, and other switch-mode power supplies where high efficiency and reliability are required. The device’s design supports its integration into diverse industrial and manufacturing settings.

Utilizes STripFET F7 technology for enhanced performance. Very low on-state resistance reduces power losses. High maximum power dissipation supports demanding loads. Wide operating temperature range ensures reliability. Through-hole mountable 3-pin TO-220 package.

Suitable for automotive and industrial switching applications. 100% avalanche rated for durable operation. Reduced gate charge enables faster switching speeds. Stable forward voltage ensures consistent performance. Designed for long-term reliability and efficiency.
