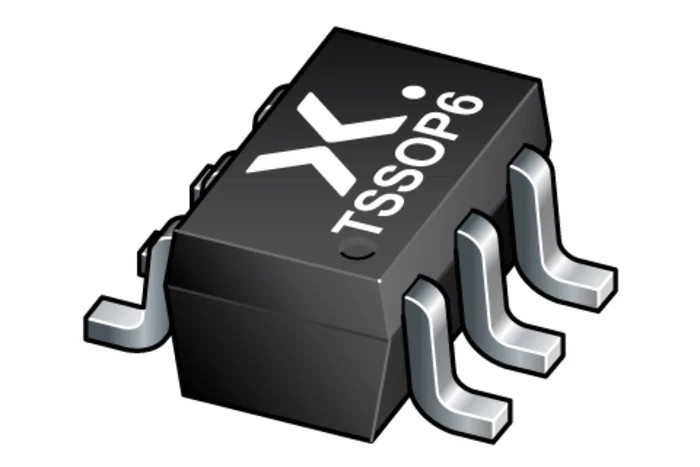

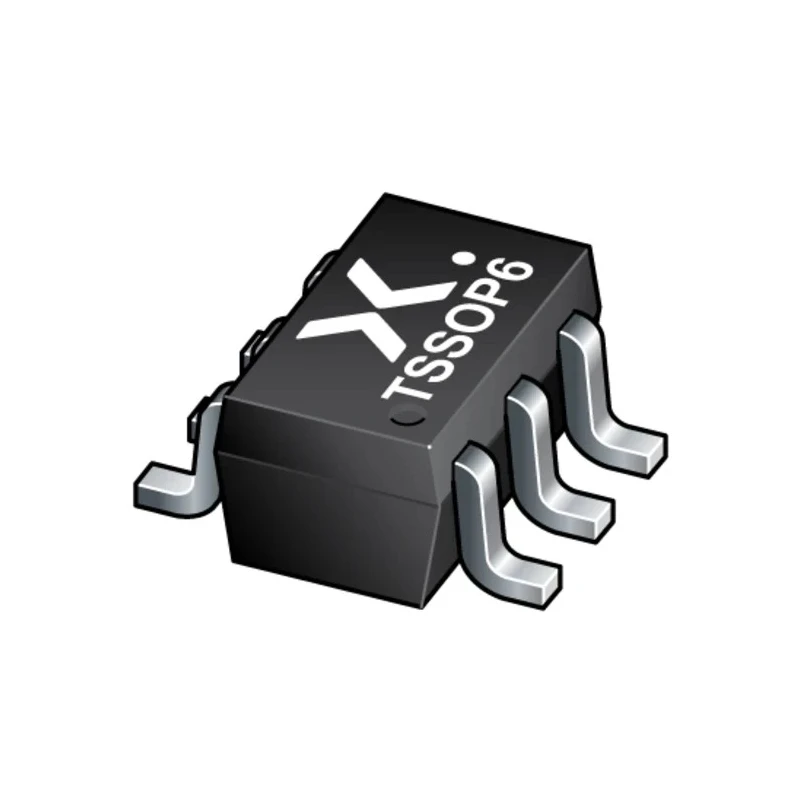

Nexperia General Purpose PNP Transistor BC856S,115 3-Pin SOT-363 -100mA -65V 300mW AEC-Q101

Name: Nexperia General Purpose PNP Transistor BC856S,115 3-Pin SOT-363 -100mA -65V 300mW AEC-Q101
Brand: Nexperia
SKU: 111037
Price: 0.04 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.2mm
Model	BC856S,115
Width	1.35mm
Mount Type	Surface
Series	BC856S
Maximum Operating Temperature	150°C
Package Type	SOT-363
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Collector Emitter Voltage Vceo	-65V
Minimum DC Current Gain hFE	110
Transistor Polarity	PNP
Maximum Emitter Base Voltage VEBO	-5V
Maximum Collector Base Voltage VCBO	-80V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	300mW
Maximum DC Collector Current Idc	-100mA
Maximum Transition Frequency ft	100MHz
ROHM UMT1NTN Transistor, -150 mA PNP, -50 V, 6-Pin UMTBrand	ROHM

Key Features

Maximum DC collector current of -100 mA ensures efficient small-signal amplification.
Maximum collector-emitter voltage of -65 V supports medium voltage circuits.
Surface mount SOT-363 package with compact dimensions of 2.2 mm length, 1.35 mm width, and 1.1 mm height.
Low maximum power dissipation of 300 mW suits low power electronic devices.
Compatible with automotive standards with AEC-Q101 certification.
High minimum DC current gain hFE of 110 for dependable transistor switching and amplification.
Operates reliably from -65°C to 150°C, ideal for harsh environments.
Low collector capacitance and collector-emitter saturation voltage improve switching speed and efficiency.

Product Description

Nexperia BC856S,115 is a general-purpose PNP bipolar transistor designed for efficient switching and amplification in electronic circuits. Housed in a compact 3-pin SOT-363 surface mount package, this transistor supports a maximum DC collector current of -100 mA and a collector-emitter voltage rating of -65 V. It dissipates up to 300 mW of power and operates across a broad temperature range from -65°C to 150°C, making it suitable for demanding industrial and automotive applications.

This transistor features low collector capacitance and saturation voltage, which enhance switching performance and reduce power losses in signal amplification. The transistor conforms to the automotive AEC-Q101 standard, verifying its suitability for automotive electronic systems.

The device's small footprint of 2.2 mm length, 1.35 mm width, and 1.1 mm height enables space-efficient designs on printed circuit boards using surface mount technology. A minimum DC current gain of 110 guarantees stable amplification and switching behavior.

Nexperia BC856S,115 is widely used in electronic, industrial, and automotive circuits for tasks such as signal processing, amplification, switching, and interfacing. Maximum DC collector current: -100 mA for reliable operation in low power circuits.

Maximum collector-emitter voltage: -65 V to withstand medium voltage conditions. Surface mount SOT-363 package facilitates compact PCB assembly. Certified to AEC-Q101 automotive standard ensuring performance under harsh conditions.

Operating temperature range from -65°C to 150°C supports diverse environments. Low collector capacitance and saturation voltage enhance device switching efficiency. Minimum current gain hFE of 110 ensures consistent transistor performance.

Maximum transition frequency of 100 MHz suitable for high-speed switching. Pin count: 3 pins compatible with SMD mounting. Ideal for usage in automotive, industrial, and electronic equipment requiring PNP transistors. Explore EnvMart for a comprehensive selection of semiconductor devices and Bipolar Transistors for diverse industrial and electronic applications.
